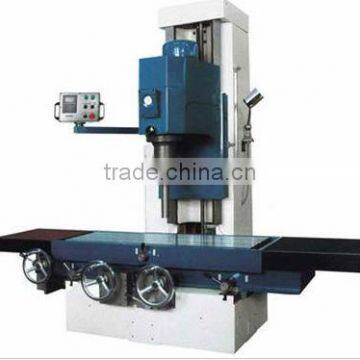

Cylinder Boring Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Auto Feeding Type Disk SawUS$ 3,000 - 10,000MOQ: 1 Set -
SMAC High Quality and Well Floor Type Boring and Milling MachineryNegotiableMOQ: 1 Set
-
SMAC High Quality Cnc Boring and Milling MachineryNegotiableMOQ: 1 Set
-
Horizontal Jig Boring MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
SMAC High Quality and Well Heavy Duty Boring MachineryNegotiableMOQ: 1 Set
Condition
New
CNC or Not
Normal
Place of Origin
Jiangsu, China
Brand Name
SMAC
Model Number
TXM250A
Power(W)
5.5 Kw
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Cylinder Boring Machine serial model can be widely used in boring automobile engine cylinders, cylinder sleeves of diesel enginePackaging & Delivery
| Packaging Detail: | WOODERN BOX |
| Delivery Detail: | 55 DASYS |
Specifications
T: Boring hole & milling surface.
TX: Boring hole & milling surface.
TXM: Boring hole, grinding and milling surface.
Product Description
Cylinder Boring Machine serial model can be widely used in boring automobile engine cylinders, cylinder sleeves of diesel engines and compressors, as well as various high precision holes boring, surface milling grinding of other workpieces.
T: Boring hole & milling surface.
TX: Boring hole & milling surface.
TXM: Boring hole, grinding and milling surface.
| Model | T200A | T250A | TX200A | TX250A | TXM200A | TXM250A | |
| Max. boring diameter | Φ 200mm | Φ 250 mm | Φ 200 mm | Φ 250 mm | Φ 200 mm | Φ 250 mm | |
| Max. boring depth | 500 mm | 500 mm | 500 mm | 500 mm | 500 mm | 500 mm | |
| Max. milling area | - | 400x1000 mm | 400× 1000 mm | ||||
| Max. grinding area | - | - | 400× 1000 mm | ||||
| Max. drilling & reaming diameter | Φ 30 mm | Φ 30 mm | Φ 30 mm | ||||
| Spindle speed | 120-860 r/min | 120-860 r/min | 120-1200 r/min | ||||
| Feeding of the spindle | 14-900 mm/min | 14-900 mm/min | 14-900 mm/min | ||||
| Rapid moving speed of the spindle | 1000 mm | 1000 mm/min | 1000 mm/min | ||||
| Spindle travel | 700 mm | 700 mm | 700 mm | ||||
| Distance between spindle end face and table | 0-700 mm | 0-700 mm | 0-700 mm | ||||
| Distance between spindle axis and carriage vertical plane | 375 mm | 375 mm | 375 mm | ||||
| Feed of work table longitudinal | - | 32-1350 mm/min | 32-1350 mm/min | ||||
| Rapid moving speed of the table longitudinal travel | - | 32-1350 mm/min | 32-1350 mm/min | ||||
| Max longitudinal travel of working table | 1500 mm | 1500 mm | 1500 mm | ||||
| Max cross travel of the working table | 200 mm | 200 mm | 200 mm | ||||
| Working table size (W× L) | 500× 1500 mm | 500× 1500 mm | 500× 1250 mm | 500× 1500 mm | |||
| Quantity of “ T” Slot | 5 qua. | 5 qua. | 5 qua. | ||||
| Main motor | 5.5 Kw | 5.5 Kw | 5.5 Kw | ||||
| Boring precision | Boring roughness | Ra 2.5 | Ra 2.5 | Ra 2.5 | |||
| Milling | - | Ra 3.2 | Ra 3.2 | ||||
| Grinding | - | - | Ra 0.8 | ||||
| Overall dimensions (L× W× H) | 2600× 1630× 2300 mm | 2600× 1630× 2300 mm | 2600× 1630× 2300mm | ||||
| Packing dimensions (L× W× H) | 2250× 1900× 2280 mm | 2250× 1900× 2280 mm | 2250× 1900× 2280 | ||||
