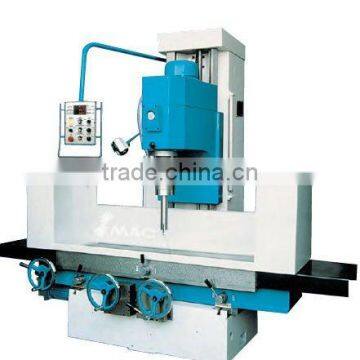

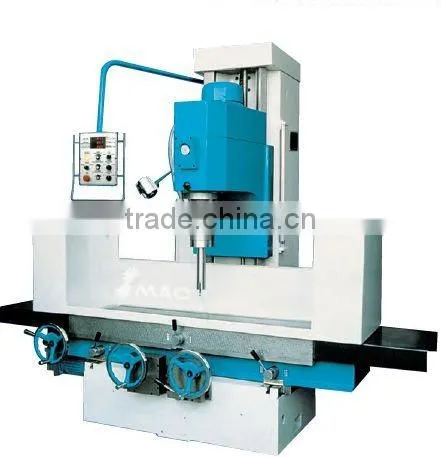

Cylinder Boring & Surface Grinding-milling Machine

Name: Cylinder Boring & Surface Grinding-milling Machine
Brand: smac
SKU: 143009862
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

CNC or Not:

Normal

Place of Origin:

Jiangsu, China

SJR Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Place of Origin Jiangsu, China

Brand Name smac

Model Number BGM

Specifications

Stepless of spindle turning ,feeding and table travelling
Tool fast centering device
Tool measuring device

ITEMS
Max. boring diameter		Mm	φ170	φ200	φ250
Max. boring depth		Mm	400	500	500
Max.milling area		Mm	400x1000
Max. drilling& reaming diameter		Mm	φ30
Spindle speed		r/min	120-860
Feeding of the spindle		Mm/min	14-900
Rapid moving speed of the spindle		Mm/mim	900
Spindle travel		Mm	700
Distance between spindle end face and table		Mm	0-700
Distance between spindle axis and carriage vertical plane		Mm	365
Longitudinal feed of worktable		Mm/mim	32-1350
Rapid moving speed of the table longitudinal travel		Mm/mim	1350
Max. longitudinal travel of the working table		Mm	1500
Max. cross travel of the working table		Mm	200
Worktable size(W*L)		Mm	500*1250	500*1500	500*1500
Dimensional precision of boring hole			H7
Machining precision	Roundness	Mm	0.005
	Cylindricity		0.01/300
	Milling flatness		0.10
Surface roughness	Boring	Um	Ra2.5
	Milling		Ra3.2
Main motor power		Kw	5.5
Overall dimensions (LWH)		Cm	260163230
Packing dimensions(LWH)		Cm	225190228
N.W./G..W.		kg	3300/3600/	3500/3800		3500/3800
Remark		You can buy relative accessories to upgrade your machine. TX series +TXM PLC+Grinding head φ320+Cooling tank+Protecting panel+AC Contactor UPGRADE TXM series.
