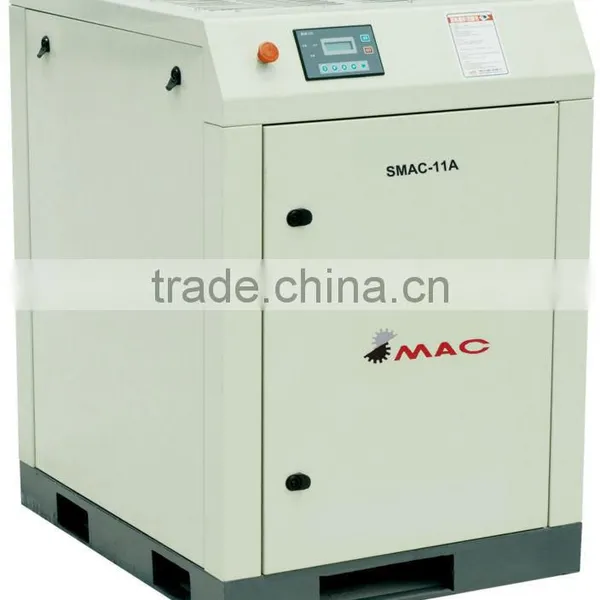

15hp screw air compressor for industry

Specifications

15hp screw air compressor for industry features: a. High Stability, b. Better reliability, c. Lower Noise d. More saving energy



Packaging & Delivery

Packaging Details:	Plywood case or customized
Delivery Detail:	20 days

<:article id=richTextContainer>

Specifications

15hp screw air compressor for industry features: a. High Stability, b. Better reliability, c. Lower Noise d. More saving energy.

15hp screw air compressor for industry:



Air End
No vibration and low noise interpret perfectly the genuine made in Germany. Big rotor, low speed of rotation and direct connection.

Motor
First-class motors are adopted, with the level of protection being IP54 and insulation level being F.

Rotor
Rotors are asymmetric in profile, backed up by ball bearings and roller bearings. Operates at a low speed, thereby low in abrasion and maintenance expenses, air end is long service life. Helical gears can produce axial force to kill some acting force, which reduces the load of the bearing of air end.

Control panel
Intelligent microcomputer-based control technology can monitor and control in all aspects the complete machine following your instructions, remote control realizes unattended operation, and the user-friendly human-machine interface displays instructions and parameters in written form also, it can function to self diagnose faults, give warning and automatically regulate the capacity.



Model	SMAC-5.5A	SMAC-7.5A	SMAC-11A	SMAC-15A	SMAC-18.5A	SMAC-22A
FAD/ Pressure (m3/min/Mpa)	0.85/0.7	1.2/0.7	1.7/0.7	2.4/0.7	3.1/0.7	3.8/0.7
	0.78/0.8	1.1/0.8	1.6/0.8	2.2/0.8	2.9/0.8	3.5/0.8
	0.65/1.0	0.95/1.0	1.4/1.0	2.0/1.0	2.7/1.0	3.2/1.0
	0.5/1.3	0.8/1.3	1.2/1.3	1.7/1.3	2.2/1.3	2.9/1.3
Power (KW)	5.5	7.5	11	15	18.5	22
Horse power (HP)	7.5	10	15	20	25	30
Voltage/Hz	380V/3ph/50hz or customized
Start mode	5.5A/7.5A are direct start, above11A is Y-delta start
Noise DB (A)	65±2	65±2	68±2	68±2	69±2	69±2
Air pipe (Inch)	G3/4	G3/4	G3/4	G3/4	G1 1/4	G1 1/4
Ambient Temp.(°C)	-5°C~+45°C
Weight (mm)	200	240	400	410	590	630
Length L (mm)	750	750	770	770	1000	1040
Width W (mm)	650	650	760	760	1100	850
Height H (mm)	847	847	900	900	1240	1015



Package: Plywood case
