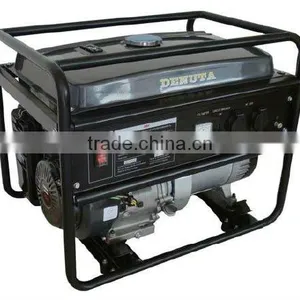

Gasoline Generator

Specifications

1 The output steady & durable
2 New carburetor low fuel consumption, low emission
3 lpg start & electrical star
4 with wheels



Model DUG55  DUG55T

Rated output power (KVA) 5.5  5.5

Max output power (KVA) 6.5  6.5

Rated frequency (Hz) 60

Rated voltage (V) 220/230

Power factor (cos) 1.0  0.8

Phase No.  Single  Three

DC output 12V-8.3A

Engine model DU188F

Engine type Single cylinder, 4-stroke, air-cooled, OHV

Displacement (cc) 389

Rated speed (rpm) 3000

Max output/

Speed kW(HP)/rpm 9.5(13)/3600

Starting system Recoil

Alternator 100% Copper Wire, Brush, with AVR

Fuel tank capacity (L) 22

Oil capacity (L) 1.1

Continouse running time (h) 8.2

N.W/G.W (kg) 83/83

Generator size (L×W×H) (mm) 680×510×540

Packing size (L×W×H) (mm) 700×535×570

QTY/20'/40GP/ (sets) 125/260
