Automatic Hydraulic Hose and Rubber Hose Crimping Machine FY-69

Automatic Hydraulic Hose and Rubber Hose Crimping Machine FY-69 photo-1

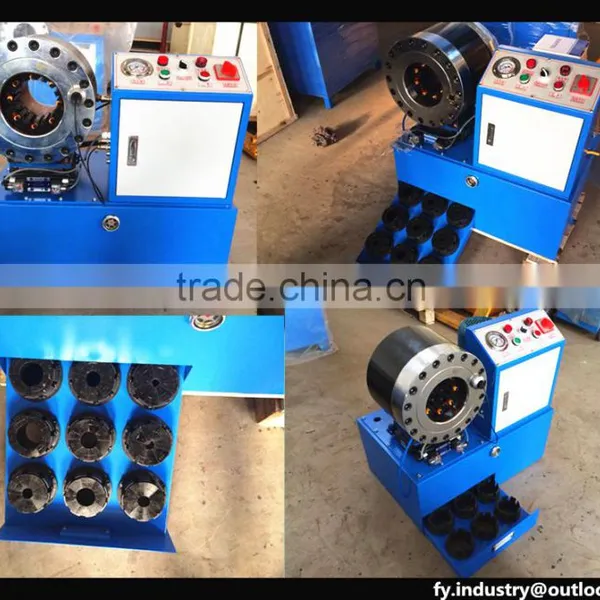

Automatic Hydraulic Hose and Rubber Hose Crimping Machine FY-69 photo-2

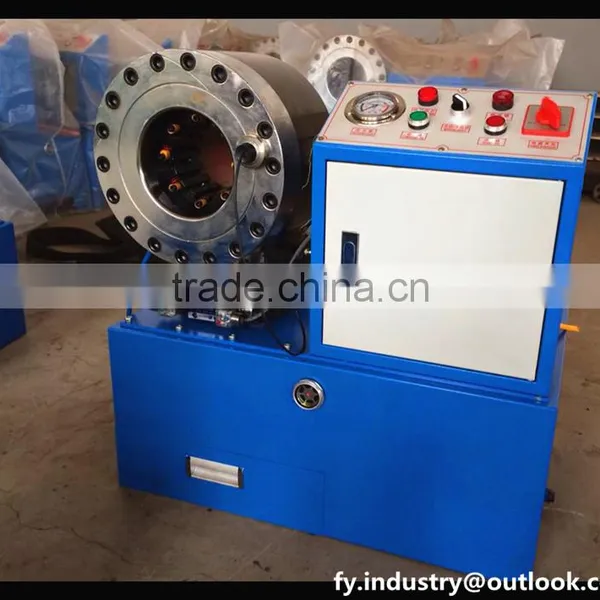

Automatic Hydraulic Hose and Rubber Hose Crimping Machine FY-69 photo-3

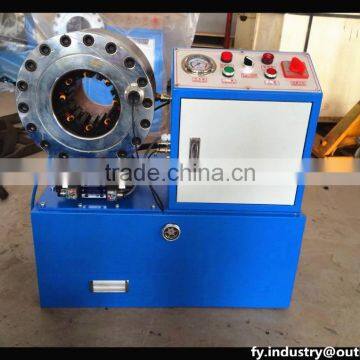

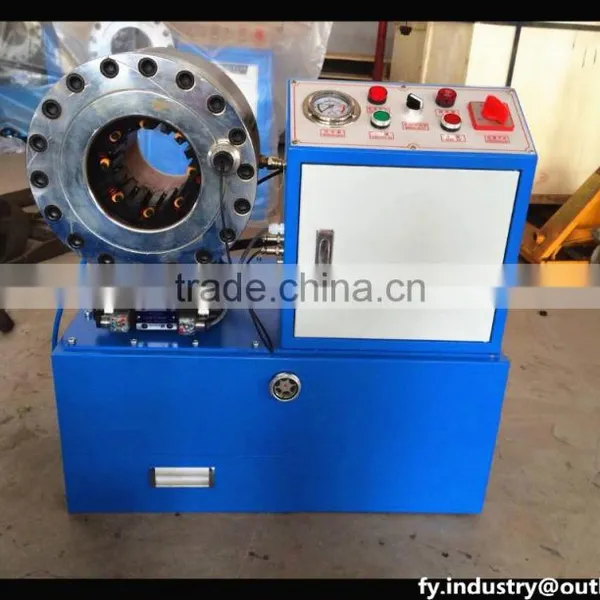

Automatic Hydraulic Hose and Rubber Hose Crimping Machine FY-69 photo-4
Automatic Hydraulic Hose and Rubber Hose Crimping Machine FY-69 photo-5

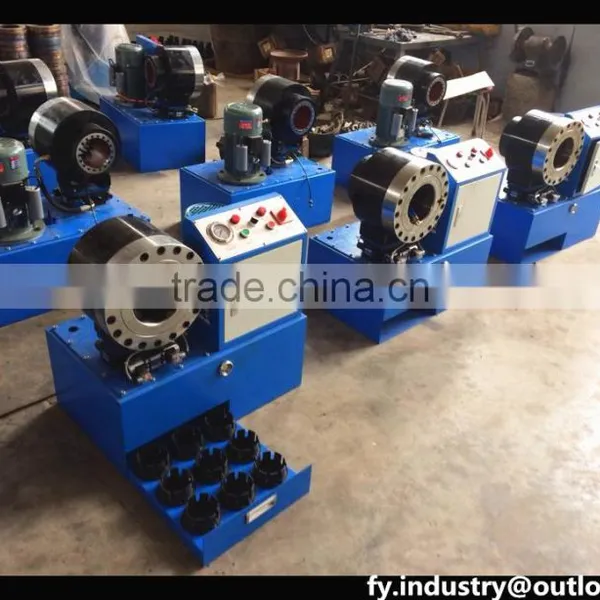

Automatic Hydraulic Hose and Rubber Hose Crimping Machine FY-69 photo-6
US$ 1 - 2,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Hebei, China
Brand Name:
FUYUE
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG Qingdao Shanghai Yiwu etc.
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Hebei, China
Brand Name FUYUE
Model Number FY69
Voltage 220V/380V
Power(W) 3KW/4KW
Dimension(L*W*H) 790*470*730mm
Weight 260kg with wooden case packing
Certification ISO9001 CE
Warranty 3 years
After-sales Service Provided Engineers available to service machinery overseas

Automatic Hydraulic Hose and Rubber Hose Crimping Machine FY-69

Automatic Hydraulic Hose and Rubber Hose Crimping Machine FY-69

Application of high pressure hose crimping machine:

hose Crimping machines designed for permanent assembly of fittings on hydraulic and industrial hoses by crimping the ferrule on a specially constructed hose tail of a fitting. Many types of different crimping machines are present on the market - from simple manual crimpers to king crimpers with crimping force of 1,200 tons. All crimping machines are adapted to work with exchangeable die sets (different sets for different diameter range). The most important crimping machines parameters are: crimping range, crimping force, maximum dies opening and theoretical effectiveness (in crimps per hour). Available in manual, pneumatic or electric drive with different control systems.



Technical Parameters

Anne make this Table for your reference,any questions,call us freely

Hose capacity


1/4 inch to 2 inch ( suitable for metal hose,wire rope,hydraulic hose,air hose,pvc hose,water hose)

Voltage

220/240-380/440 50Hz OR 225/280-440/480 60Hz

Maximal mouth opening

119mm

crimping force

500T

Dies

10 sets or more

Noise level

68db

System pressure

31.5mpa

Weight

260KG with packing

Overall dimensions

670x430x820(mm)

Die No.

Dies Length (mm) or as request

15

60

19

60

23

60

26

60

31

70

36

70

41

70

47

80

55

80

65

80

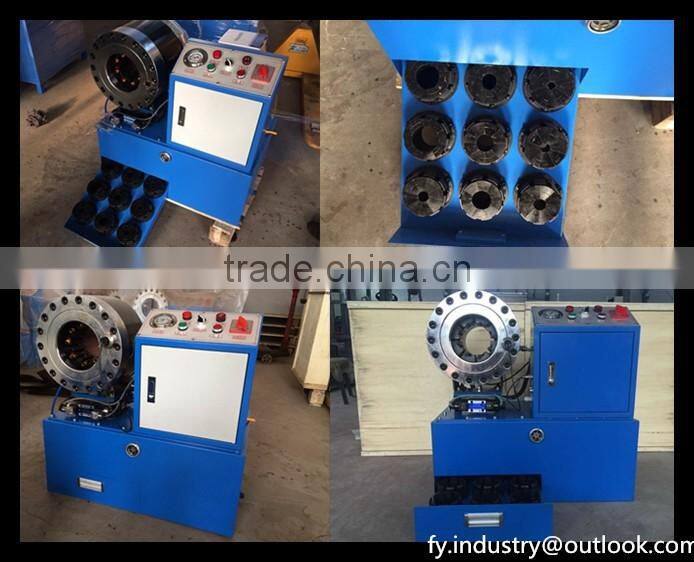

Photo details show our hose machine details

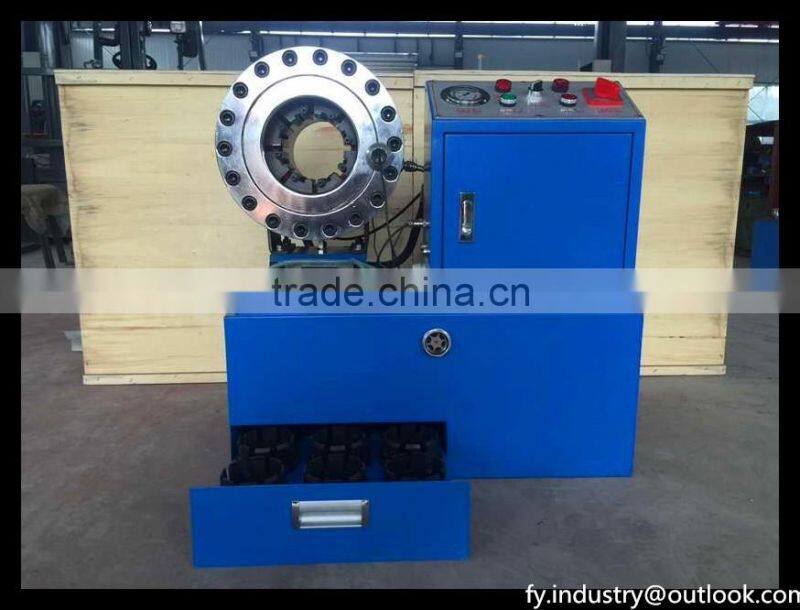

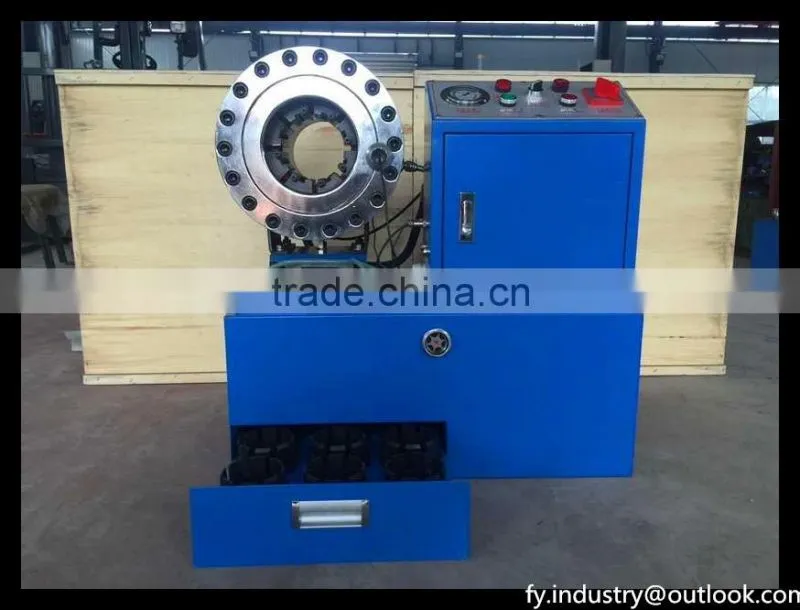

Automatic Hydraulic Hose and Rubber Hose Crimping Machine FY-69

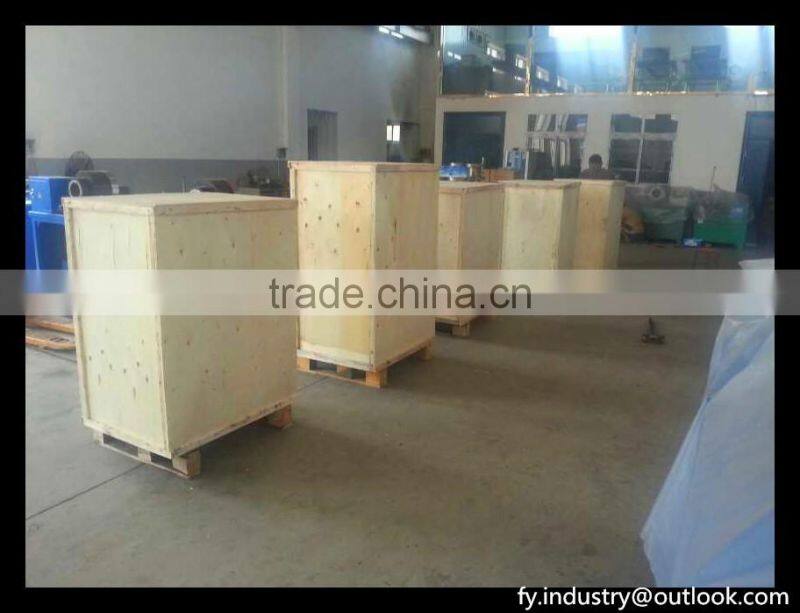

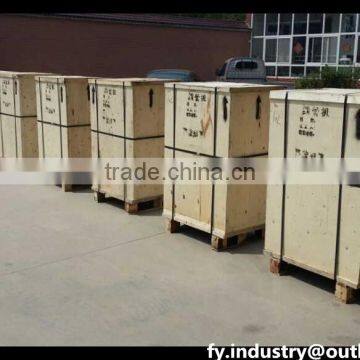

Packing of  Automatic Hydraulic Hose and Rubber Hose Crimping Machine FY-69

Automatic Hydraulic Hose and Rubber Hose Crimping Machine FY-69

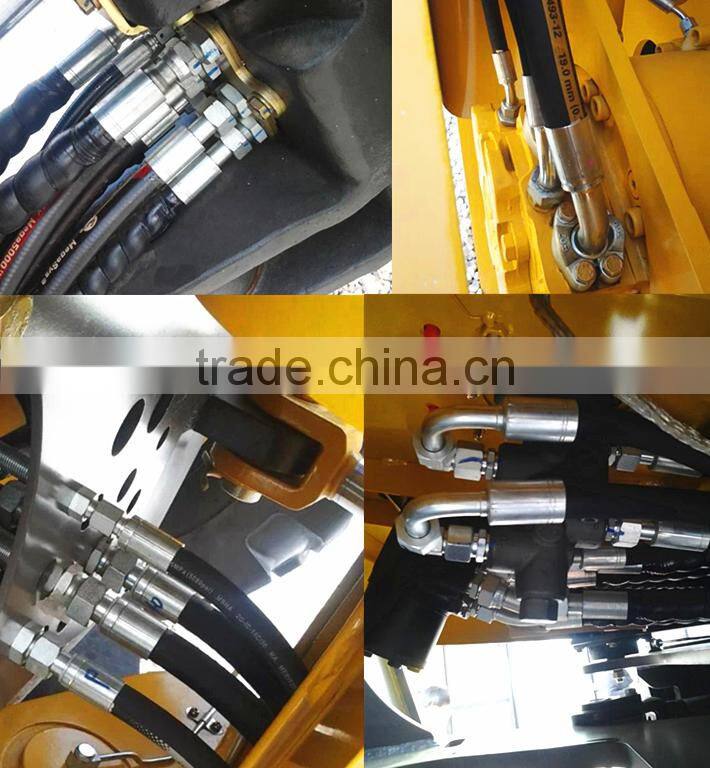

Crimper different kinds of hose(metal hose,air hose,PVC hose,wire rope,hydraulic hose etc.)

Automatic Hydraulic Hose and Rubber Hose Crimping Machine FY-69



All of our machine has 3 Years Warranty. If any quality problem. Money back guarantee.











Professional Ship agent servie is always being provided. You can choose FOB,CIF,CNF,EXW, DDU,DDP, etc.







If it is your first time to import, our agent can guide you easily.







About Payment terms:
1 Western Union
2 T/T
3 L/C
4 Escrow







 Cucstomer show with our hose crimping machine:

Automatic Hydraulic Hose and Rubber Hose Crimping Machine FY-69

We are factory,do the export now,so I can give best prices.

Please feel free to contact me for more details.

Automatic Hydraulic Hose and Rubber Hose Crimping Machine FY-69
