FY69 1/4-2 Inch Free Dies Hydraulic Hose Swaging Machine, Hydraulic Rubber Hose Crimping Machine
US$ 1 - 2,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Hebei, China
Brand Name:
FUYUE
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG shanghai Yiwu etc.
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FY69 Hose Machine 51mm Hydraulic Rubber Hose Crimping Machine/crimperUS$ 1 - 2,000MOQ: 1 Set -
1/8-2'' 10 Sets Free Dies Hydraulic Pipe Hose Crimping Machine FY-91H for Hydraulic Hose CrimperUS$ 1 - 5,000MOQ: 1 Set
-
Hydraulic Hose Crimper Tools Hydraulic Hose Crimping Machine With CE and ISO9001US$ 1 - 5,000MOQ: 1 Set
-
Hydraulic A/c Hose Crimping Tool for Crimping Hydraulic Hose Crimping MachineUS$ 1 - 5,000MOQ: 1 Set
-
CE FY91H 1/8-2'' Inches 10set Free Dies Hydraulic Hose Crimping Machine PriceUS$ 1 - 5,000MOQ: 1 Set
Condition
New
Place of Origin
Hebei, China
Brand Name
FUYUE
Model Number
FY69
Voltage
220V/380V
Power(W)
3KW/4KW
Dimension(L*W*H)
790*470*730mm
Weight
260kg with packing
Certification
ISO9001 CE
Warranty
3 years
After-sales Service Provided
Engineers available to service machinery overseas

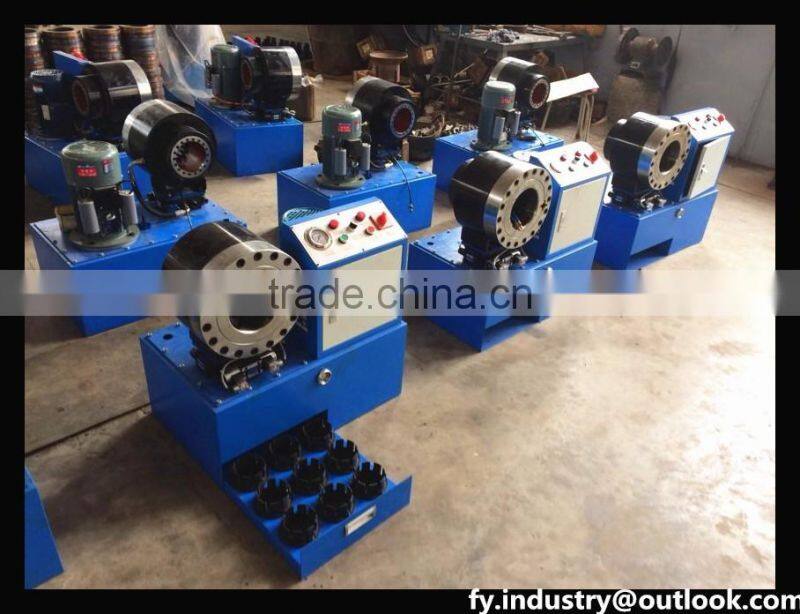

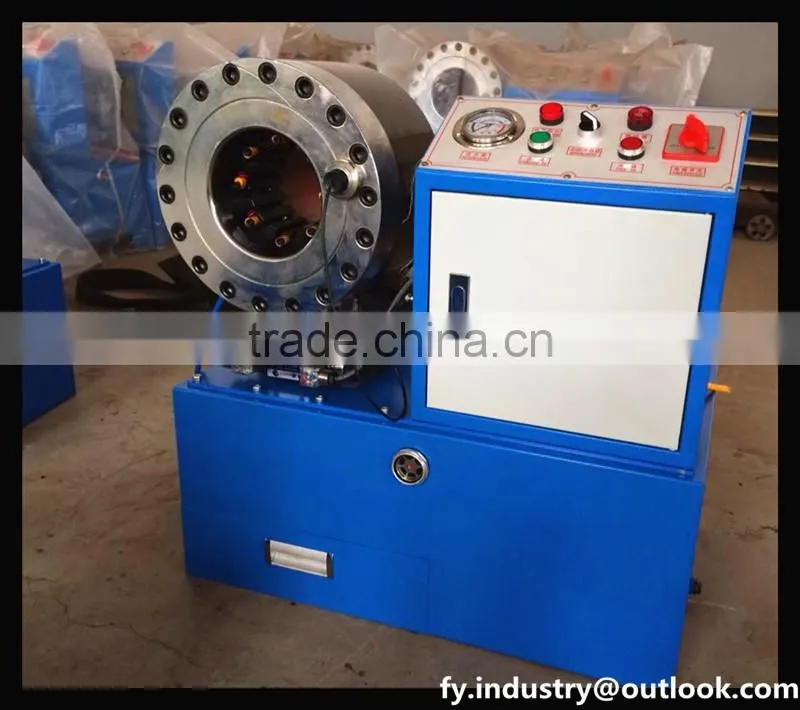

FY69 1/4-2 inch free dies hydraulic hose swaging machine, hydraulic rubber hose crimping machine
Specifications of our high pressure hydraulic hose crimping machine:
| FY69 hydraulic hose crimping machine price | |||||
| 1 Hose capacity:6-51(mm) 1/4" to 2"4 wires | |||||
| 2 Swaging Force: 500(T) | |||||
| 3 Max Pressure:31.5(MPa) | |||||
| 4 Die Opening and Closing:+/-20(mm) | |||||
| 5 Calibration:Simple dial adjusted Calibrator | |||||
| 6 Weight:260(Kg) | |||||
| 7.Packed Dimensions(Length*Width*Height):670x490x780(mm) | |||||

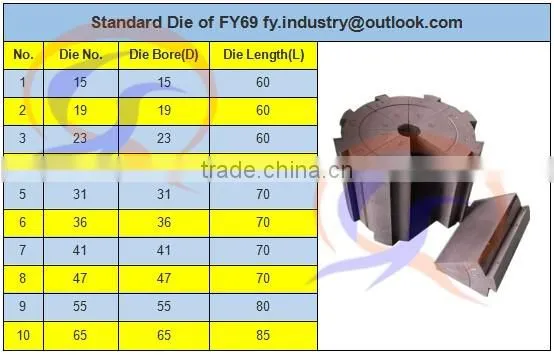

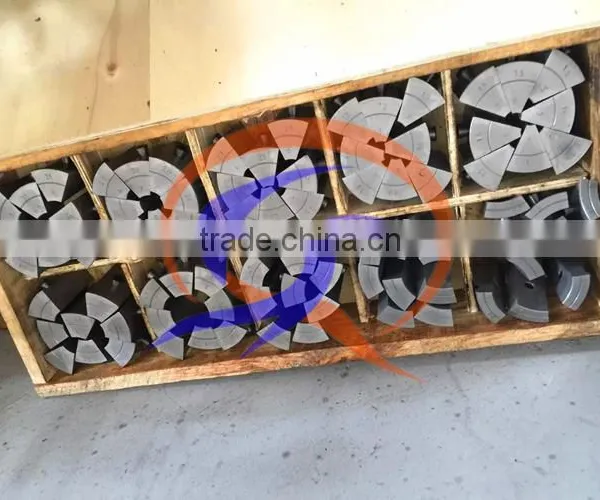

| 8.Die NO. and length:15 (60),19(60),23(60),26(60),31(70),36(70),41(70),47 (70) 55(80),65(85) | |||||
| 9 Voltages 3 phase (Different voltages available):380/440 50Hz OR 225/280-440/480 60Hz | |||||
| 10 Voltages 1 phase (Different voltages available):220/240 50Hz | |||||
OPERATION PLATE ( Simple button way, Easy to operate)
We are notice our packing(inner and outer) packing,which can protect goods well in long distance delivery(by sea,by train,by track or by air).
If it is your first time to buy,don't know how to place the order. We can supply the professtional service.
Professional Ship agent servie is always being provided. You can choose FOB,CIF,CNF,EXW, DDU,DDP, etc.
Welcome to contact me for more information!
