High Speed Automatic Creasing Carton Die Cutting Machine

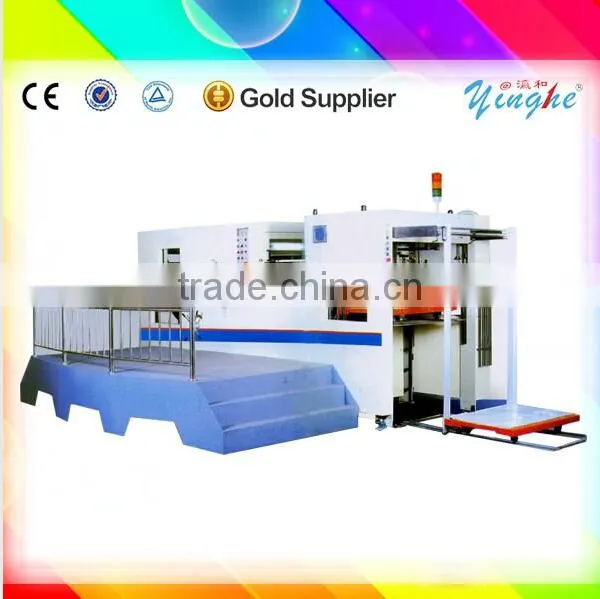

High Speed Automatic Creasing Carton Die Cutting Machine photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Die-cutting Machine
Computerized:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Die-cutting Machine
Computerized Yes
Place of Origin Guangdong, China
Brand Name Yinghe folding carton cardboard corrugated paper packaging box machine
Model Number YH-1080folding carton cardboard corrugated paper packaging box machine
Voltage 110V or 220V
Power(W) 15.9KW
Dimension(L*W*H) 7650*3900*2150mm
Weight 16Ton
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

High speed automatic creasing carton die cutting machine
1.die cutting and slitting machine
2.grey paper, corrugated

    folding carton cardboard corrugated paper packaging box machine

High speed automatic creasing carton die cutting machine



High speed automatic creasing carton die cutting machine







High speed automatic creasing carton die cutting machine



1. Front guide is adjusted by stepper motor, easy operation and ensuring its high presision as well.

2. The sheet-conveying unit adopts adjustable construction, ensuring speed and precision, especially fits to the conveying of thin sheet.

3. Adopt coder in controlling program, which makes the running of the machine coordinately.

4. Adopt imported pneumatic clutch, long life and low noise, braking stable.

5. The chain of gripper bar can be lubricated according to time and quantity. Time break can be freely set.

6. Pneumatic sampling system makes the sample-checking more convenient.

7. All electric unit, bearing, fastener, chain adopt imported famous brand products, ensuring precision and life.







High speed automatic creasing carton die cutting machine



ModelYH-1080
Max. paper size1080x780mm
Min. paper size400x360mm
Max. Die-cutting size1070x770mm
Sheet thickness100-600g paper board, corrugated paper is less than 4mm
Gripper edge7mm
Max.Die-cutting speed7000 sheets/hour
Max. pressure280Ton
Total power15.9KW
Main motor power11KW
Total weight16Ton
Die-cutting precision<±0.1mm
Overall dimension7650x3900x2150mm







  High speed automatic creasing carton die cutting machine



 High speed automatic creasing carton die cutting machine





High speed automatic creasing carton die cutting machine

High speed automatic creasing carton die cutting machine High speed automatic creasing carton die cutting machineHigh speed automatic creasing carton die cutting machineHigh speed automatic creasing carton die cutting machineHigh speed automatic creasing carton die cutting machine
