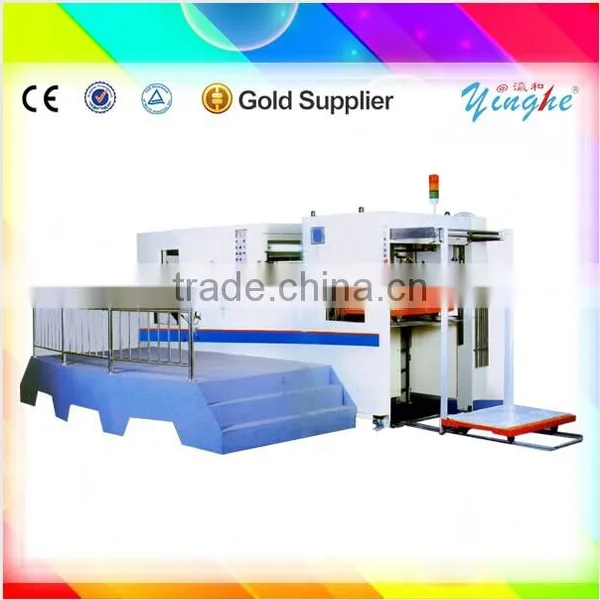

Heavy Duty Paper Box Corrugated Box Die Cutting Cardboard Slotting Machine
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Die-cutting Machine
Computerized:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale Gift Box Die Cutting Creasing Cardboard Slotting MachineNegotiableMOQ: 1 Piece -
New and Automatic Bending Machine for IndustryNegotiableMOQ: 1 Set
-
Flatbed Textile Heat Press MachineNegotiableMOQ: 1 Set
-
High Quality T-shirt Manual Heat Transfer MachineNegotiableMOQ: 1 Set
-
High Quality T-shirt Manual Heat Press MachineNegotiableMOQ: 1 Set
Condition
New
Type
Die-cutting Machine
Computerized
Yes
Place of Origin
Guangdong, China
Brand Name
Yinghe die cutting creasing cardboard slotting machine
Model Number
YH-1080 die cutting creasing cardboard slotting machine
Voltage
110V or 220V
Power(W)
15.9KW
Dimension(L*W*H)
7650*3900*2150mm
Weight
16Ton
Certification
CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
die cutting creasing cardboard slotting machine1.die cutting and slitting machine
2.grey paper,corrugated cardboard
die cutting creasing cardboard slotting machine
1. Front guide is adjusted by stepper motor, easy operation and ensuring its high presision as well.
2. The sheet-conveying unit adopts adjustable construction, ensuring speed and precision, especially fits to the conveying of thin sheet.
3. Adopt coder in controlling program, which makes the running of the machine coordinately.
4. Adopt imported pneumatic clutch, long life and low noise, braking stable.
5. The chain of gripper bar can be lubricated according to time and quantity. Time break can be freely set.
6. Pneumatic sampling system makes the sample-checking more convenient.
7. All electric unit, bearing, fastener, chain adopt imported famous brand products, ensuring precision and life.
| Model | YH-1080 | |||||||
| Max. paper size | 1080x780mm | |||||||
| Min. paper size | 400x360mm | |||||||
| Max. Die-cutting size | 1070x770mm | |||||||
| Sheet thickness | 100-600g paper board, corrugated paper is less than 4mm | |||||||
| Gripper edge | 7mm | |||||||
| Max.Die-cutting speed | 7000 sheets/hour | |||||||
| Max. pressure | 280Ton | |||||||
| Total power | 15.9KW | |||||||
| Main motor power | 11KW | |||||||
| Total weight | 16Ton | |||||||
| Die-cutting precision | <±0.1mm | |||||||
| Overall dimension | 7650x3900x2150mm | |||||||
