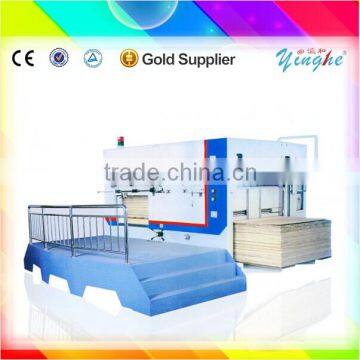

High speed carton box making packaging box cardboard creasing machine

Specifications

box making packaging box folding carton creasing machine
1.die cutting and slitting machine
2.grey paper,corrugated

    box making packaging box folding carton creasing machine















1-Yinghe series semi-automatic die-cutting and creasing machine is special equipment applying to die-cutting of advanced colored boxes made of paper.

2-The machine combines several advantages over many other die-cutters both at home and abroad.

3-Gripper bars with high intensity are applicable to all kinds of cardboard, paperboard and corrugated paper.

4-Frontal, back and side registration mechanism ensures great precision of die-cutting.

5-Other parts are adopted such as intermittent machanism with high precision, air clutch, pnenumatic locking mechanism, programmable controller and man-machine interface.

6-The interface can display various digital information of machine such as working speed, amount of paper processed, total running time,etc.

7-It is easy to eliminate troubles according to the display of trouble shooting.

8-Transducer is adopted to control the main motor in achieving stepless speed variation.

9-The machine has a lot of sensors and safe-ensuring devices to guarantee the safety to operator and of environment.

10-Frontal and back pressure can be adjusted separately.

11-It is convenient to stop the machine by hand.

12-It can also realize die cutting without clipper margin.













Model				YH-1320		YH-1500
Max.Paper size				1320×1030mm		1500×1060mm
Min.Paper size				550×500mm		550×500mm
Max.Die-cutting size				1300×1000mm		1495×1045mm
Max.Die-cutting pressure				300N/cm2
Paper Processed(corrugated paper)				8mm(max.thickness)
Paper Processed(paper board)				200~2000g/m2
Max.Die-cutting speed				4000sheets/hour
Max.Feeding Pile Height				1400mm(above the level)
Max.Delivery Pile Height				1200mm(above the level)
Total Power				13.5kw
Weight				14.5T		16T
Dimensions				4000×2250×2250mm		4200×2300×2250mm
