Specifications
cardboard die cutting slotting creasing machine1.die cutting and slitting machine
2.grey paper,corrugated

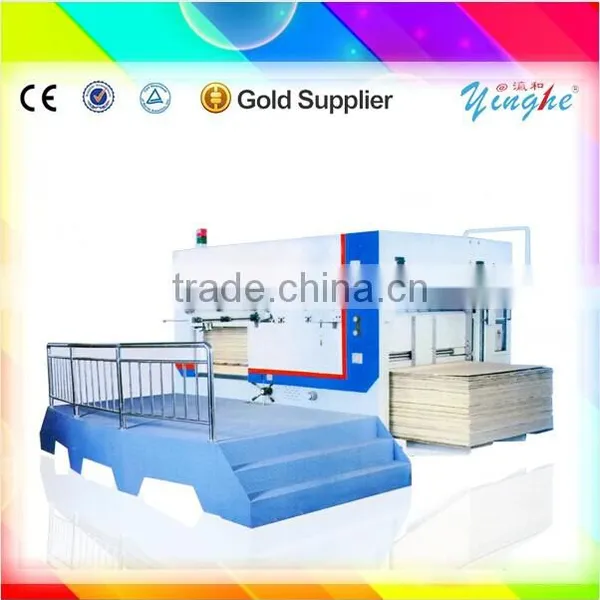

cardboard die cutting slotting creasing machine
1-Yinghe series semi-automatic die-cutting and creasing machine is special equipment applying to die-cutting of advanced colored boxes made of paper.
2-The machine combines several advantages over many other die-cutters both at home and abroad.
3-Gripper bars with high intensity are applicable to all kinds of cardboard, paperboard and corrugated paper.
4-Frontal, back and side registration mechanism ensures great precision of die-cutting.
5-Other parts are adopted such as intermittent machanism with high precision, air clutch, pnenumatic locking mechanism, programmable controller and man-machine interface.
6-The interface can display various digital information of machine such as working speed, amount of paper processed, total running time,etc.
7-It is easy to eliminate troubles according to the display of trouble shooting.
8-Transducer is adopted to control the main motor in achieving stepless speed variation.
9-The machine has a lot of sensors and safe-ensuring devices to guarantee the safety to operator and of environment.
10-Frontal and back pressure can be adjusted separately.
11-It is convenient to stop the machine by hand.
12-It can also realize die cutting without clipper margin.
| Model | YH-1320 | YH-1500 | ||||||
| Max.Paper size | 1320×1030mm | 1500×1060mm | ||||||
| Min.Paper size | 550×500mm | 550×500mm | ||||||
| Max.Die-cutting size | 1300×1000mm | 1495×1045mm | ||||||
| Max.Die-cutting pressure | 300N/cm2 | |||||||
| Paper Processed(corrugated paper) | 8mm(max.thickness) | |||||||
| Paper Processed(paper board) | 200~2000g/m2 | |||||||
| Max.Die-cutting speed | 4000sheets/hour | |||||||
| Max.Feeding Pile Height | 1400mm(above the level) | |||||||
| Max.Delivery Pile Height | 1200mm(above the level) | |||||||
| Total Power | 13.5kw | |||||||
| Weight | 14.5T | 16T | ||||||
| Dimensions | 4000×2250×2250mm | 4200×2300×2250mm | ||||||
