PDC Cutter For Oil Gas Water Well Drill Bits

FOB Price

US$ 13 - 96 / Piece

100 Pieces(Min. Order)

Port Zhengzhou/Shanghai
Payment TermsT/T Credit Card PayPal
Delivery Detail5 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Diamond WK	Place of Origin	China
Model Number	HX PDC	Certification	API
After-sales Service Provided	Engineers available to service machinery overseas	Warranty	---
Weight	8.00	Dimension(LWH)	13.44*8.00 mm
Condition	New	Voltage	---
Power(W)	---

Product Description

PDC Cutter For Oil Gas Water Well Drill Bits

PDC picture

Round Shape PDC cutter

Polycrystalline diamond compact PDC cutter is mainly made of diamond powder and cobalt metal powder .

Our connect feature is mesh , it is very strong , not easy to take off .

Working life is longer than others .

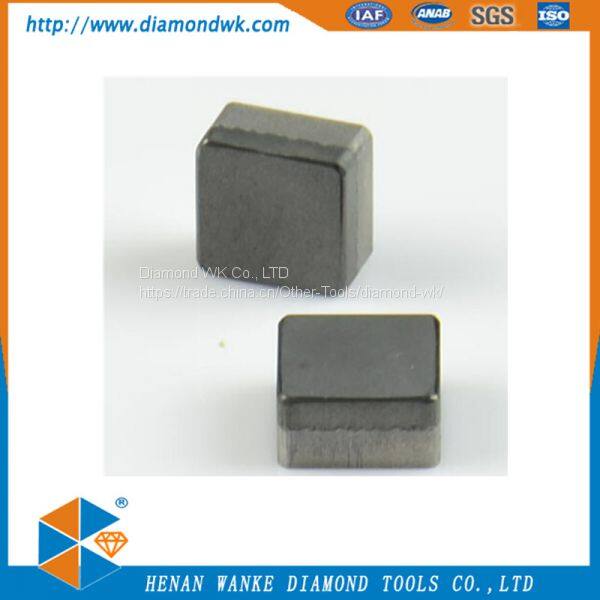

Square Shape PDC cutter

PCD work layer & tungsten carbide part is used mesh connect method to make it stronger .

When using PDC , PDC work layer is not easy to take off and more abrasive resistant .

Advantages of pdc:

1) With feature of high working efficiency, smooth surface
2) Advanced technics and strict process control
4) Long lifespan and stable performance
5) Competitive price and superior quality

6) Excellent service.

Features:

1)high hardness and wearability
2)sorts of shapes and sizes
3)high toughness

Usage & Application:

1)For oil drilling
2)For gas drilling
3)For mining bits
4)For coal drilling
5)For well drilling

PDC Specifications

Size	Diameter	Thickness	PCD layer
803	8	3	1.5-2.5
808	8	8	1.5-2.5
1304	13	4	1.5-2.5
1308	13	8	1.5-2.5
1313	13	13	1.5-2.5
1613	16	13	1.5-2.5
1616	16	16	1.5-2.5
1913	19	13	1.5-2.5
1916	19	16	1.5-2.5

Our service

Process:

1. Raw material checking , grit ,size , surface, sample testing
2. Inner assembly
3. External assembly
4. Press by Cubic press machine with high temperature & high pressure (first testing)
5. PCD work layer process
6. Cylindrical roughing processing , finishing processing
7. Tungsten carbide flat polishing processing
8. PCD work layer , Tungsten carbide layer chamfer processing
9. quality testing , get in stock

Quality control workshop:

Impact resistant testing
Temperature resistant testing
Working lifespan testing

Note: When using , don't let temperature higher than 700 degree

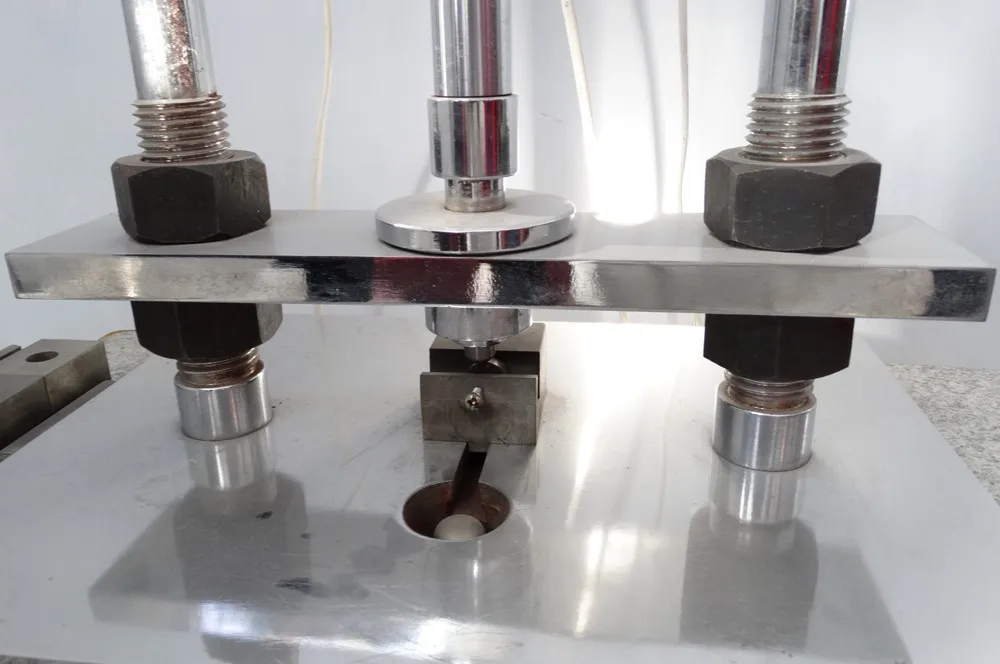

Impact resistant testing

When using , drilling requires high impact resistance ,when finished a lot PDC , we will choose 5% sample for testing in impact resistance .

Temperature resistant testing

When drilling , long time drilling will make its temperature higher , so PDC has to have an ability to face high temperature drilling .

Working lifespan testing

In order to guarantee our working life , we will choose some sample for testing in working life . Our testing way is drilling granite , granite hardness is higher than other geological .

Press-Static scan in connect pat

PCD work layer & tungsten carbide part is used mesh connect method to make it stronger .
When using PDC , PDC work layer is not easy to take off and more abrasive resistant

Packing & Shipping

Packaging:

Items per Carton: 25 Pieces/Box
Package Measurements: : 30X20X20 cm
Gross Weight: 4.5 kg

Package Type: in carton,then in box

Company

Company Information:

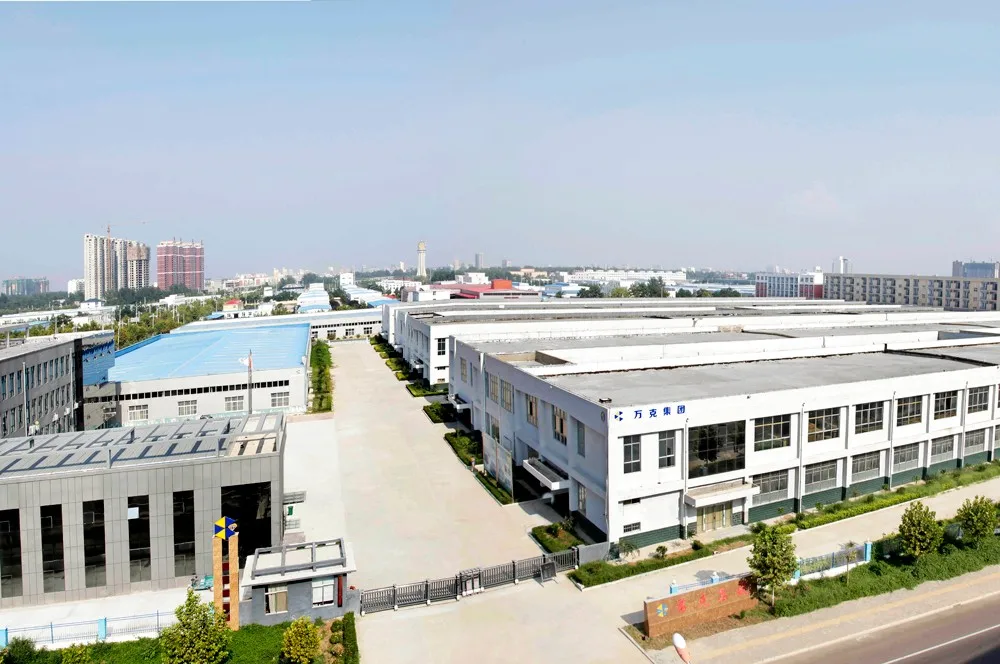

Zhecheng Hongxiang Superhard Material Co.,Ltd was founded in 1990 which in affiliated with Wanke Group . The company is a hightech enterprise of diamond products, funded by more than 200millions investment.The plant covers an area more than 124000m2 ,including eight standard workshops,one office building and one research building. It is also a provincial engineering technology center.

The main products are synthetic diamond ,diamond powder ,polycrystalline diamond composite(PDC), diamond saw blade ,diamond glass tools,diamond wheel,diamond tools etc .We are Specialty Manufacture for diamond Series.

Our target: Advanced technology is the basis of high-quality products.

FAQ

Q1: What's your payment terms?
A: T/T,Paypal,Western Union

Q2: Do you accept retail order? What is the minimum order quantity?
A: Yes, we accept retail order. No MOQ. Just one piece for testing is also acceptable.

Q3: How you pack the products?
A: Carton box, plastic box, or according to your requirement.

Q4: Do you accept OEM?
A: Yes, we accept OEM . We can produce according to your drawings and samples.

Q5: What's your delivery time?
A: For stocks,within 3-5days after payment received.
For normal order,within 5-7 days after payment received.
For mass order,within10-15 days after payment received
