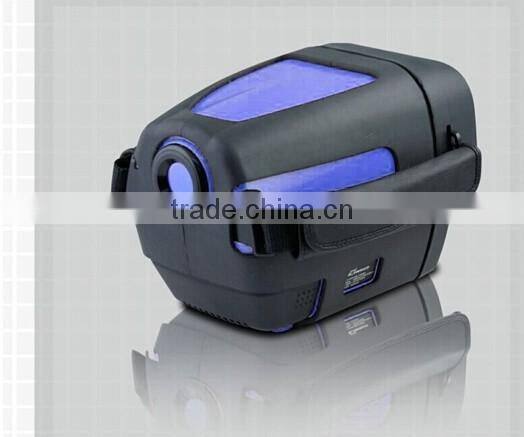

Portable Explosion Proof Thermal Imager

 1. Overview

HRYXJ-A fire infrared thermal imager is one fire rescue imager which can display the infrared spectrum of the object with the high resolution and high sensitivity. It can detect the static and dynamic objects. Also it can store the images, video and audio to the Micro SD card to facilitate the  further analysis and statistics.

The HRYXJ-A fire infrared thermal imager has the excellent performance, superior quality. It is quick to set up and easy to operate. It is generally used in anti-terrorism search, fire fighting rescue .It is explosion proof, can be sued in hazardous places.

2. Specification

1). Field of view/ minimum imaging distance: 38°  x28.5° / 0.5m

2).Spatial resolution: 4.1 mrad

3). Thermal sensitivity: ≤0.08℃@30℃

4). Sensor type: UFPA

5). Resolution: 160x120

6). Working band: 8-14um

7). Image mode: Infrared light image display

8). Screen: TFT LCD screen

9). Video output: NTSC (60Hz) or PAL (50Hz) Composite Video

10). Temperature range: -20 ℃ ~ + 250 ℃; + 200 ℃ ~ + 600 ℃

11). Temperature mode: automatically capture the highest temperature point / center can temperature

12). Parameters Correction: Automatic

13). Explosion level: Exib I

14). Battery Working Hours: Nickel-metal hydride rechargeable battery pack / approximately 2.5 hours

Beijing Topsky Automatic Technology Co., Ltd. is a professional large-scale manufacturer of all types coal mine safety equipment and fire fighting equipment, integrating development and production together. Our main products include portable gas detector, Ventilation Meter, breathing apparatus, Oxygen Self-Rescuer, Water mist system, Pneumatic Chain Saw and related products. Our company was established in 2003, and we have many years of history in the coal mine and fire fighting industry. Located at Beijing, we enjoy convenient water, land and air transportation.
Our company employs many experienced technical and management personnel. Through the efforts of all staff , we have become a special safety equipment manufacturer. All of our staff have continuously tried to improve product quality and service for the user's safety.
Currently, our product was already exported to America, France, Australia, Italy and 20 other countries and regions. Our company has always focused on research, development and innovation. We attained ISO9001 quality management system certificate.
Our company has initiated the new phase of our development strategy. Our company regards, reasonable prices, efficient production time and good after-sales service as our tenet. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us for future business relationships and achieving mutual success.

Now we are looking for distrubutors & agency, if intersted pls feel free to contact us!

OEM service Availbale.

2-year warranty

Lowers the overall cost of ownership by providing a full 24 months of warranty coverage.
