Reconnaissance Omnidirectional Mobile Robot

Reconnaissance Omnidirectional mobile  robot

Model No.:RXR-C360D-2

Overview

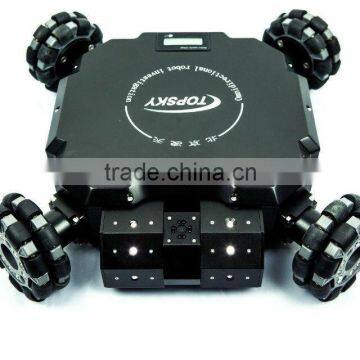

RXR-C360D-2 omnidirectional mobile reconnaissance robot is beautiful and small-scale detection robot.It’s  mainly for major hazard monitoring, remote control and can go to dangerous places, the major hazard source of toxic and harmful gases Collection and camera forensics. The wheel is strong and flexible, with any direction of the angle of translation movement ability to make it more quickly reach the designated location and get fast and accurate detection of toxic and harmful gas concentration.

Product Features

1, with a major hazard source detection module it’s more suitable for dangerous and difficult to close the space operations and reduce casualties.

<![if !supportLists]>2.<![endif]>smaller and more suitable for people not easy to reach the narrow, low-space operation.

<![if !supportLists]>3.<![endif]>the movement is flexible and easy to operate with any direction of the angle of translation movement.

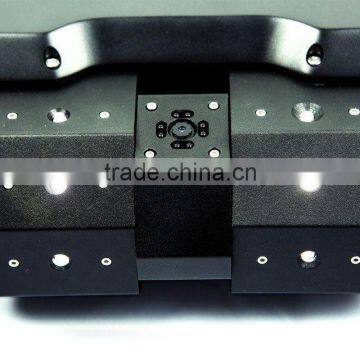

<![if !supportLists]>4.<![endif]>With high-definition wide-angle camera, with 0 ° ~ 90 ° rotation angle it can be a comprehensive detection of the surrounding situation.

<![if !supportLists]>5.<![endif]>It is fast which can save time and greatly improve the work efficiency.

The main parameters ( for the key parameters)

Body parameters

detection types: CO2 CH4 CO H2S humidity temperature video

gas detection

CO2:0-100%VOL

CH4: 0-4%VOL

CO:0-1000ppm

H2S   0-100ppm

temperature and humidity

Temperature: -20 to 100 ° C

Humidity: 0-100% RH Weight: ≤ 6.1KG

<![if !supportLists]>4) <![endif]>Size: 364 * 364 * 100mm

<![if !supportLists]>5) <![endif]>System power supply: 24v

6) Working time: ≥2h

7) Power display: Yes

8) lighting system: LED × 6 highlights

9) Work temperature: -15 ~ +50 ℃

10) speed: any direction ≥ 0.8m / s, stepless speed regulation, rotation 60 ° / s

11) PTZ tilt: 0 ° ~ + 90 °

12)Tilt speed: 60 ° / s

13) Obstacle ability: ≤15mm Small ground fluctuation

14) climbing ability: ≤ 25 ° gentle road

15) Relative humidity: 0 to 95%

16) Camera pixels: 10 million

17) Camera lens: not less than 140 °wide-angle lens

18) can detect the source of danger: CO2 CH4 CO H2S

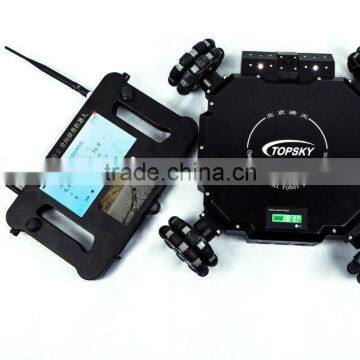

Controller parameters

<![if !supportLists]>19) <![endif]>Weight: ≤ 1.4KG

<![if !supportLists]>20) <![endif]>Size: 278 * 184 * 43mm

21) System power supply: 12v

22) Working time: ≥2h

23) Power display: Yes

24) Display screen: 7-inch 156 × 89 high-brightness display

25) joystick: a rocker to control the left and right direction, the other joystick control left front, right front, left rear, right rear direction

26) Work temperature: -15 ~ +50 ℃

27) Screen display: to achieve the video and detection of gas data (CO2 CH4 CO H2S humidity temperature) conversion

28) System components:

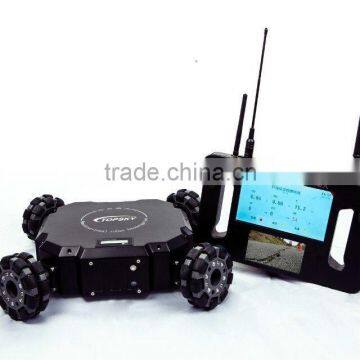

Omni-directional mobile reconnaissance robot

A Integrated control box

A robot charger

A control box charger

A copy of the instruction manual

Product certification one

A set of packing boxes
