Description:
Product information

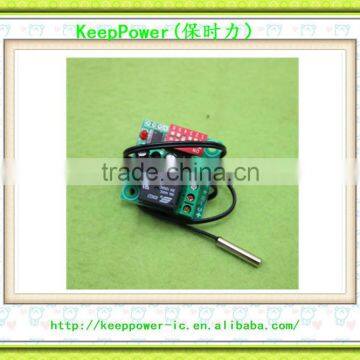

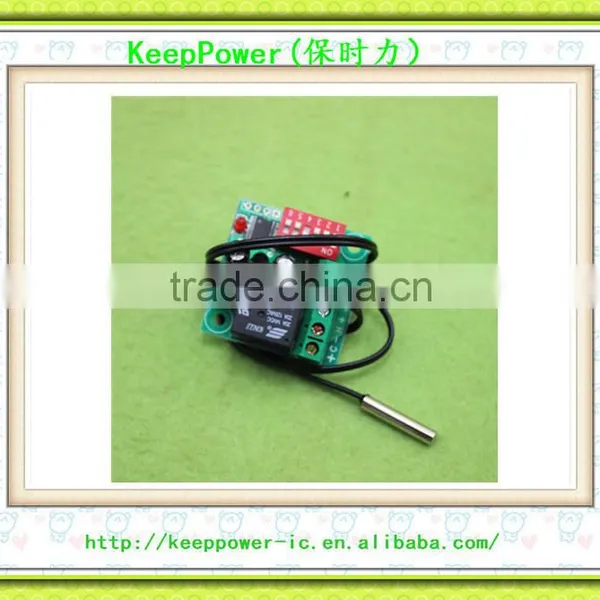

This product uses STM8 high-speed professional temperature control chip, set the temperature control and hysteresis using binary DIP switch, with small size, easy installation, precision temperature control, hysteresis adjustable, etc., compared to professional thermostat, although not shown Screen and thermostat buttons but the control accuracy and professional no difference, and the price is only a fraction of the cost is very high, the product is fully available (liquid, mold, space) and other control heating, can also be used (box, , Water, pet room, air conditioning) and other control refrigeration, of course, in the heat situation more, for example, control the chassis, greenhouses, server cooling, set higher than the number of degrees to start less than how many degrees to stop. Intelligent, professional, focused, enterprising is our eternal pursuit of the goal, welcome in the course of the use of valuable advice and suggestions, we strive to do better!
Product parameters
Product Name: High precision digital temperature control switch
Specifications Model: W1701
Temperature control mode: off
Control mode: heating, cooling, cooling
Temperature range: 20-90 ℃
Control accuracy: 0.1 ℃
Hysteresis setting: 1-10 ℃
Refresh frequency: 0.5S
Supply voltage: DC12V
Quiescent current: ≤3MA pull current ≤ 60MA
Output voltage: DC12V
Output power: up to 200W

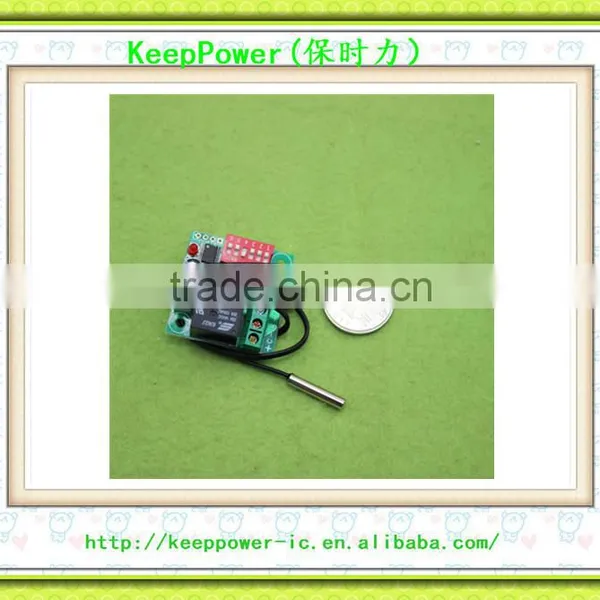

Dimensions: 36.5 * 36.5 * 18mm
Mounting screw: M3 * 2 Diagonal size 39.5mm
Temperature probe: 10K thermistor B25 = 10K 3950 0.5 meters waterproof sensor
Environmental requirements: Environmental requirements: -10 ~ 60 ℃ Humidity 20% -85%
According to their own needs according to the drawings to connect a good circuit, power supply for the DC12V (+12 V is positive for the negative GND)
The temperature control probe placed in the need to control the temperature of the object
For heating: Please connect the 12V heater to -H + (note positive and negative)
For cooling: Please connect the chiller to + C- (note positive and negative)
For cooling: Please connect the cooler or cooling fan to the + C- (note the positive and negative)
Indicator status description
The red indicator light on the board indicates that the cooling (+ C-) has an output
No light Description Heating (-H +) Yes Output
Parameter Function Description

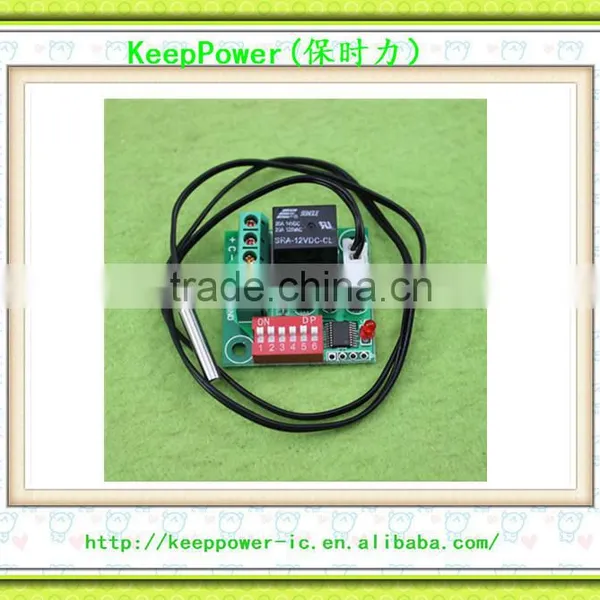

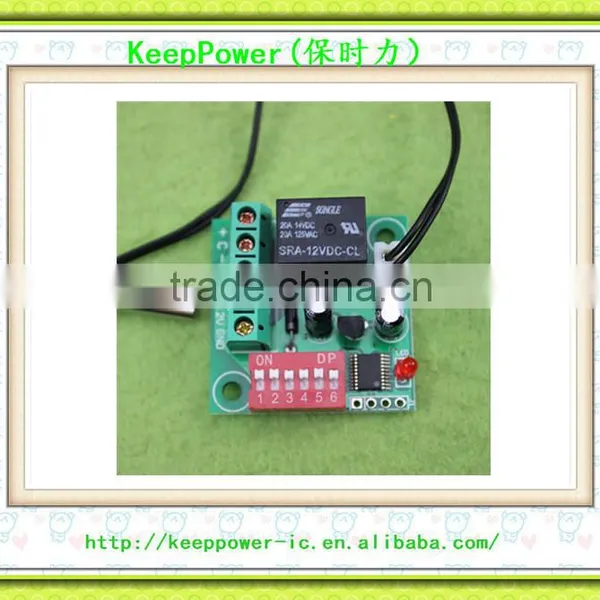

Temperature control switch board set the use of DIP mode, 1-4 for the temperature control selection 5-6 for the hysteresis set, from right to left in binary mode from small to large set, when the temperature control switch is fully closed state, Only - H + has output, not controlled
Example: to the radiator temperature control switch, when the temperature is higher than 40 degrees to open the cooling fan, the temperature is below 35 degrees off the cooling fan
The DC12V connected to the power supply side, the cooling fan connected to the C- C-
We have to set the parameters for the temperature = 40 hysteresis = 5
According to the parameter table and know that 24 open for the temperature control 40 degrees, 5 open for the hysteresis 5 degrees other is off, set OK!
