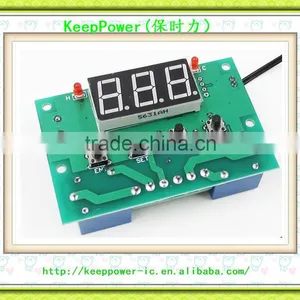

Help CenterXH-W1505 Hot and Cold Automatic Switching 2 Relay Output Temperature Adjustable Automatic Thermostat Controller
