 Description:

1. Features:
1, input, output - between the heat sink isolation voltage ≥ 2500VAC;
2, built-in resistance absorption circuit;
3, with a security cover;

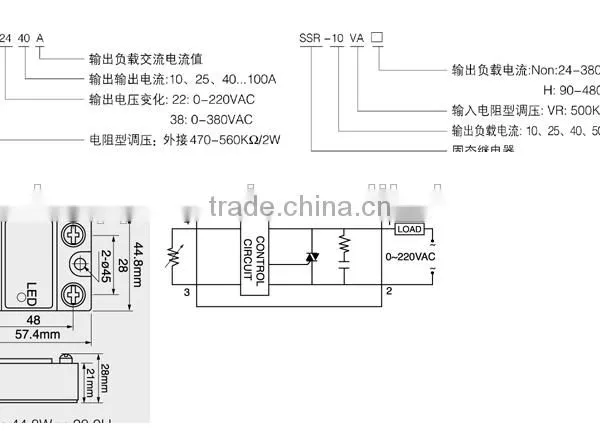

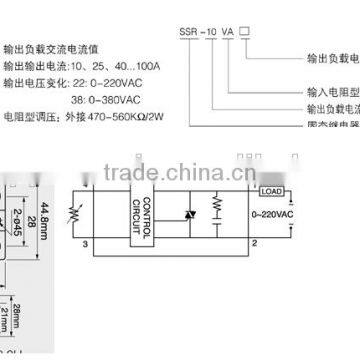

4, external potentiometer can achieve the output voltage regulation, so that the application is simple;
5, SCR phase shift output, wide adjustment range;
6,100% load current aging test, through the European Community CE certification, international ISO9000 certification, the domestic 3C certification.
2. Application:
    SSR.YHR series of solid-state voltage regulator is controlled by the thyristor circuit and resistance-phase phase-shifting circuit to eliminate the hysteresis circuit, over-voltage absorption circuit in the form of modules, the use of flame-retardant engineering plastic shell, epoxy potting, Screw pressure connection wiring, with high strength structure, impact resistance, strong anti-vibration, novel structure, with a security cover, so easy and safe to install and check the safe use of only a potentiometer can be used, To achieve AC power adjustment, in many applications can replace the heavy contact with the regulator.

3. Typical applications:
1, industrial equipment temperature control
2, incandescent light dimming
3, resistive heating element
4, conveyor speed control
5, small AC series motor speed control
6, and other automatic power adjustment occasions

4. Not suitable for the occasion:
1, AC motor control
2, three-phase motor control
3, the need for complete sine wave input applications
4, the need for zero-crossing output applications
5, can not afford to meet the phase modulation waveform British gas RF interference with the capacitive load and rectifier circuit

5. Safety Precautions:
1, the output phase is thyristor phase modulation waveform, will produce radio frequency interference (the load loop in series - inductance, can reduce interference).
2, control the potentiometer wiring longer use shielded wire or metal pipe shield;
3, the product is non-isolated (input and output), select the potentiometer should pay attention to isolation with the line voltage, the installation process must pay attention to safety;
4, the load current higher than 5A must use the radiator or installed in the corresponding cooling effect of the metal floor, and the solid-state regulator between the cooling plate and the installation surface coated with thermal grease.
5, the use of inductive load, high transient voltage and surge current applied and output, which may lead to solid-state regulator mis-conduction or damage, usually need to access the output with a specific clamping voltage of the voltage control device, Such as bidirectional zener diodes or varistors (MOVs). Varistor recommended to take the rated voltage of 1.6-1.9 times.
6, the control of the minimum load current close to the smaller load current load, the load must be connected in parallel with a virtual load resistor to reduce the output leakage current in the load to produce a higher residual voltage.
7, in order to avoid the solid state relay temperature rise exceeds the allowable value, the design application should consider the cooling effect and installation location, when two or more solid state relay side by side installation, should leave the appropriate spacing.
8, if any special requirements and applications, please contact the technical department of the company to get more detailed technical support.
