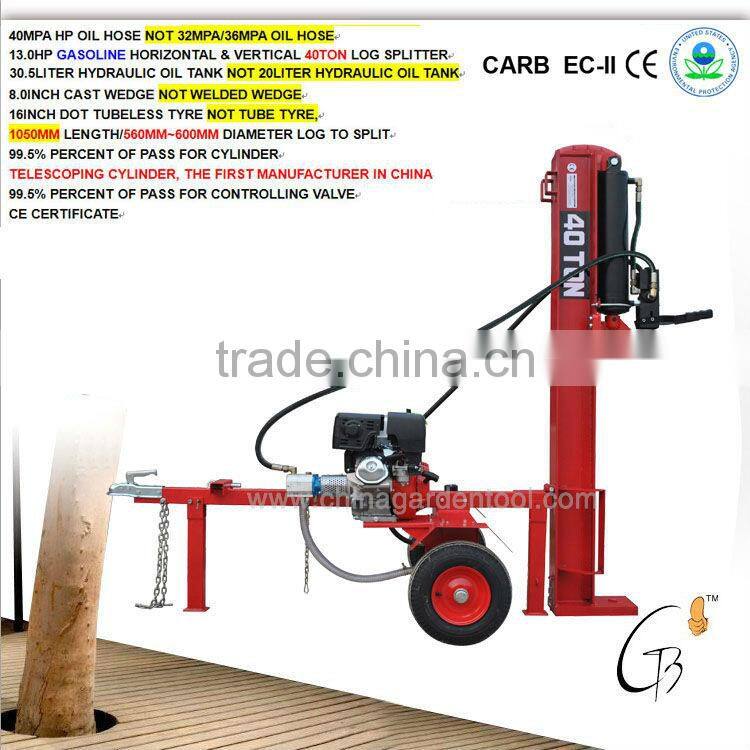

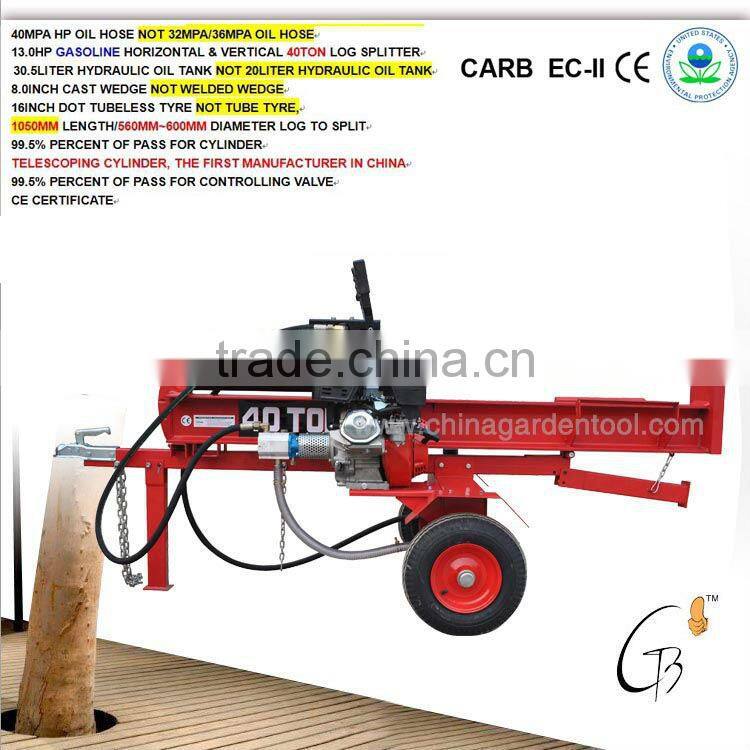

40T Firewood Splitter With 13hp/15hp/18hp Gasoline Engine to Split 1050mm Length Log(LS40T-B3-1050MM)

STRONGPOINTS FOLLOWING:

PATENT DESIGN, ONLY ONE SUPPLIER IN CHINA, OEM DESIGN

SPECIAL H-BEAM, SPECIAL STRENGTHEN MODEL

TELESCOPING CYLINDER USAGE

BETTER LEVEL OF 1050MM CYLINDER

ONLY ONE SUPPLIER OF LOG STRIP, PROFESSIONAL DESIGN

MODEL NO.

LS40T-B3-1050MM (GASOLINE ENGINE)

LOG SPLITTER SPECIFICATION FOLLOWING

OPERATING TYPE

HORIZONTAL TYPE AND VERTICAL TYPE

MAX. FORCE

40TON

COUPLER

2.0INCH

WEDGE

CAST WEDGE

CYLINDER

5.0INCH TELESCOPING CYLINDER

PUMP FLOW

2-STAGE, 16GPM (GALLON PER MINUTE)

LOG LENGTH TO SPLIT

1100MM/44INCH

LOG DIAMETER TO SPLIT

560MM~650MM

AUTOMATIC CYLINDER RETURN

YES

JACK STAND (FRONT AND REAR)

YES

TIRE

DOT AND E9 CERTIFICATE, 8INCH RIM, 16INCH WHEEL, TUBELESS, FOR HIGHWAY USER

HP OIL HOSE

2-LAYERS STEEL-WIRE NET, 13MM INNER SIZE; 40MPA PRESSURE CAPACITY

H-BEAM

INDUSTRIAL STANDARD, 175MM*175MM, 2M LONG

HYDRAULIC TANK CAPACITY

30.5LITER

N.W./PC

277.50KGS

G.W./PC

287.50KGS

WHOLE MACHINE CERTIFICATE

CE

PACKING SIZE

2050MM*560MM*540MM

QUANTITY IN CONTAINER

40PCS/20FT; 88PCS/40FT/40HQ

ENGINE SPECIFICATION FOLLOWING

ENGINE

188F, 13.0HP, SINGLE-CYLINDER, AIR-COOLED, 4 STROKE,SINGLE CYLINDER, HORIZONTAL SHAFT

ENGINE CERTIFICATE

CE,EPA, EU-II, CARB, EMC

BORE*STROKE

88MM*64MM

DISPLACEMENT

389ML

COMPRESSION RATIO

8.2:1

MAX. POWER OUTPUT

8.2KW/4000RPM

FUEL TANK CAPACITY

6.5L

ENGINE OIL CAPACITY

1.1L

FUEL CONSUMPTION

374G/KW.H

NET WEIGHT OF ENGINE

31.00KGS

START TYPE

RECOIL OR RECOIL/ELECTRIC
