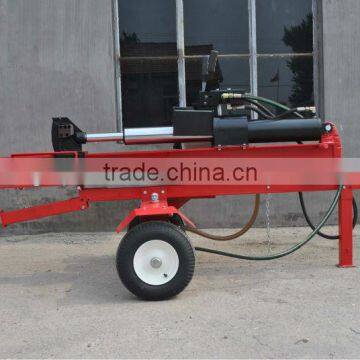

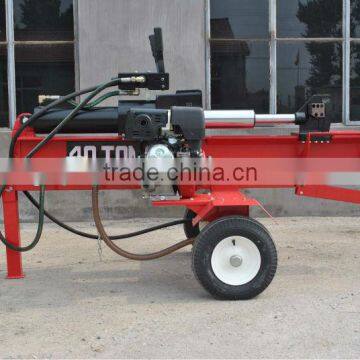

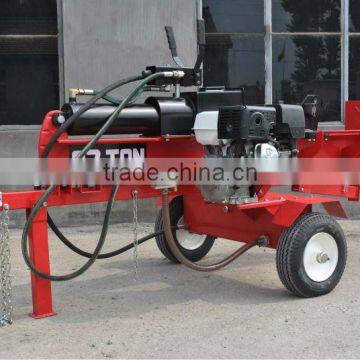

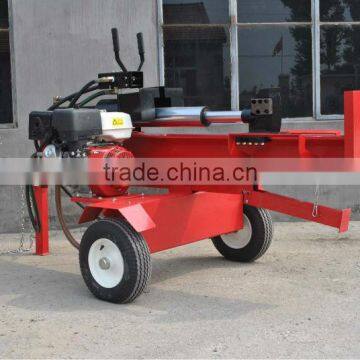

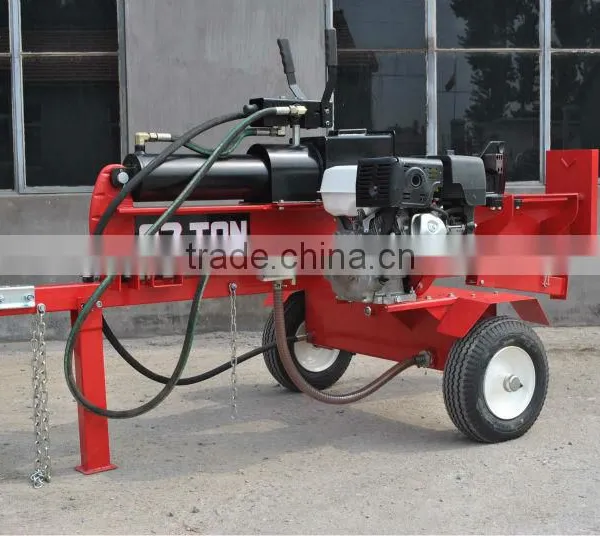

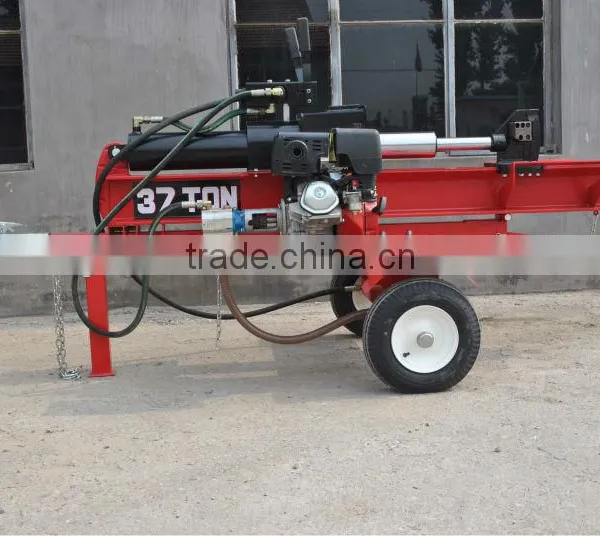

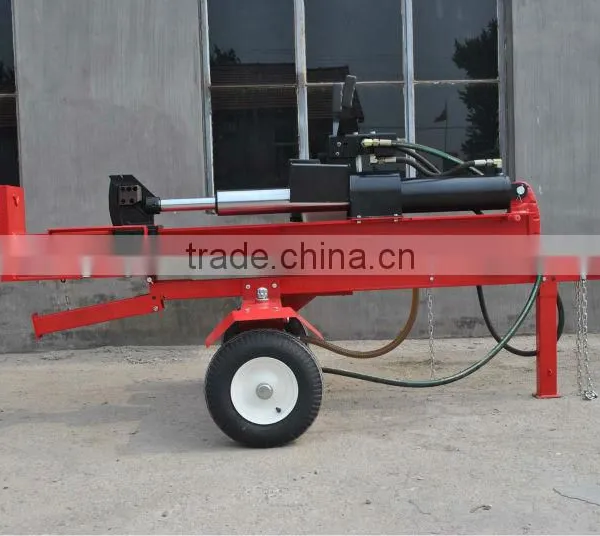

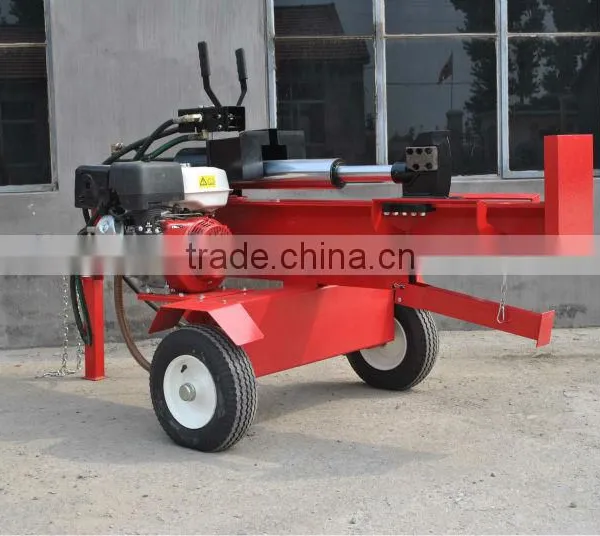

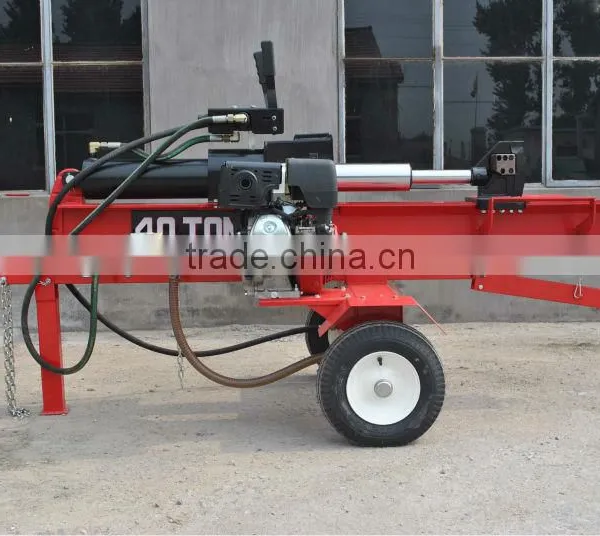

ce Approved Hydraulic Wood Splitter (LS37T-B3-1050MM)

Name: ce Approved Hydraulic Wood Splitter (LS37T-B3-1050MM)
Brand: GREAT-BOOM
SKU: 142972308
Availability: InStock

US$ 900 - 980 MOQ: 10 Pallets

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

GREAT-BOOM

Laizhou Great-Boom Machinery Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name GREAT-BOOM

Model Number LS37T-B3-1050MM

After-sales Service Provided Overseas third-party support available

Specifications

ce approved hydraulic wood splitter,log splitter,screw log splitter,diesel log splitter,hydraulic log splitter,gasoline logsaw

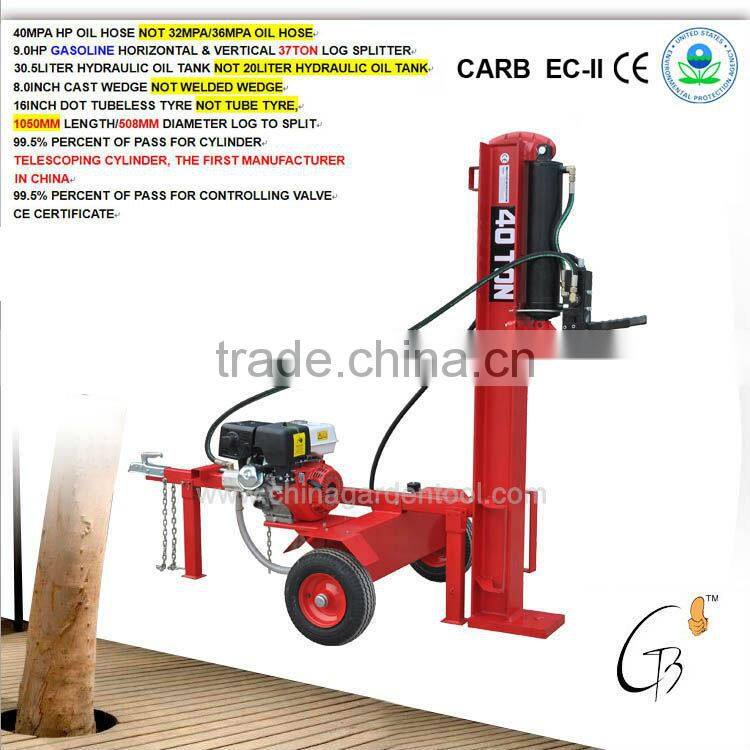

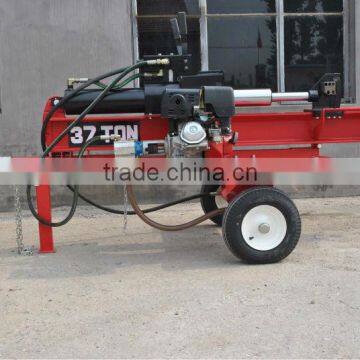

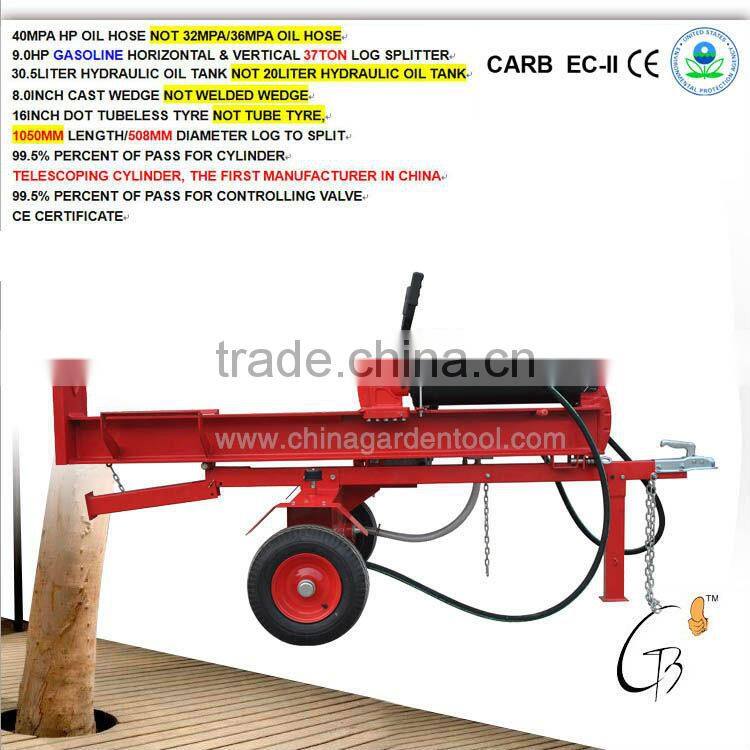

37TON hydraulic log splitter are with 9hp gasoline engine, and the engine meet CE,EPA,CARB,EC-II certificate

we use telescoping cylinder for 1050mm machine

37Ton hydraulic log splitter is with 2.0meter long H-steel as beam

we can supply you professional log strip and it can help the user work easily.

STRONGPOINTS FOLLOWING: PATENT DESIGN, ONLY ONE SUPPLIER IN CHINA, OEM DESIGN SPECIAL H-BEAM, SPECIAL STRENGTHEN MODEL TELESCOPING CYLINDER USAGE BETTER LEVEL OF 1050MM CYLINDER ONLY ONE SUPPLIER OF LOG STRIP, PROFESSIONAL DESIGN
MODEL NO.	LS37T-B3-1050MM (GASOLINE ENGINE)
LOG SPLITTER SPECIFICATION FOLLOWING
OPERATING TYPE		HORIZONTAL TYPE AND VERTICAL TYPE
MAX. FORCE	37TON
COUPLER	2.0"
WEDGE	8" CAST WEDGE
CYLINDER	5.0"
PUMP FLOW	2-STAGE, 16GPM (GALLON PER MINUTE)
LOG LENGTH TO SPLIT	1100MM/44"
LOG DIAMETER TO SPLIT	508MM/20"
AUTOMATIC CYLINDER RETURN	YES
JACK STAND (FRONT AND REAR)	YES
TIRE	DOT AND E9 CERTIFICATE, 8INCH RIM, 16INCH WHEEL, TUBELESS, FOR HIGHWAY USE
HP OIL HOSE	2-LAYERS STEEL-WIRE NET, 13MM INNER SIZE; 40MPA PRESSURE CAPACITY
H-BEAM	INDUSTRIAL STANDARD, 175MM*175MM, 2.0M LENGTH.
HYDRAULIC TANK CAPACITY	30.5LITER
N.W./PC	271.50KGS
G.W./PC	281.50KGS for hydraulic wood splitter
WHOLE MACHINE CERTIFICATE	CE
PACKING SIZE	2050MM560MM540MM

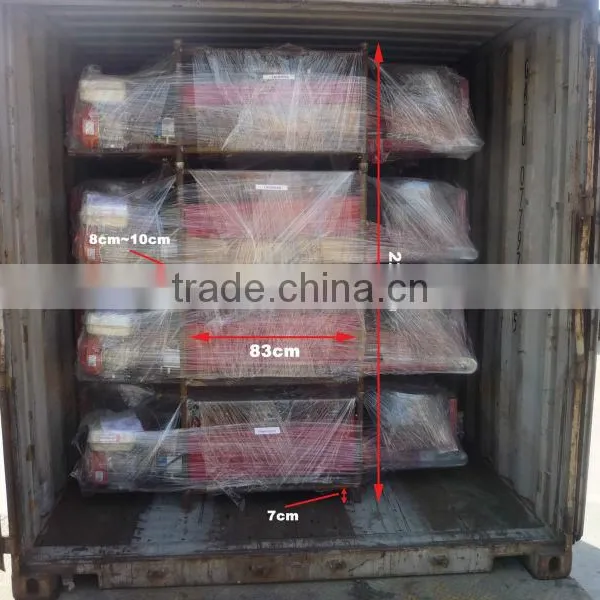

QUANTITY IN CONTAINER	40PCS/20FT; 88PCS/40FT/40HQ
ENGINE SPECIFICATION FOLLOWING
ENGINE	177F, 9.0HP, SINGLE-CYLINDER, AIR-COOLED, 4 STROKE,SINGLE CYLINDER, HORIZONTAL SHAFT
ENGINE CERTIFICATE	CE,EPA, EU-II, CARB, EMC
BORE*STROKE	77MM*58MM
DISPLACEMENT	270ML
COMPRESSION RATIO	8.2:1
MAX. POWER OUTPUT	6.6KW/4000RPM
FUEL TANK CAPACITY	6.0L
ENGINE OIL CAPACITY	1.1L
FUEL CONSUMPTION	374G/KW.H
NET WEIGHT OF ENGINE	25.00KGS
START TYPE	RECOIL OR RECOIL/ELECTRIC
