Specifications
log splitter,screw log splitter,wood splitter,screw log splitter for sale,log splitter for sale,tempest wood splitter,diesel log40ton log splitter machine can split 1050mm to 1080mm long log
log splitter machine can split 560mm to 650mm diameter log
log splitter machine can be with log strip.

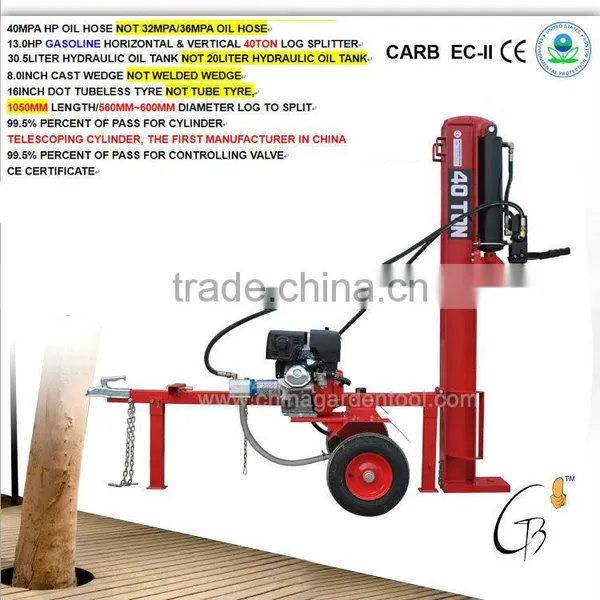

STRONGPOINTS FOLLOWING: PATENT DESIGN, ONLY ONE SUPPLIER IN CHINA, OEM DESIGN SPECIAL H-BEAM, SPECIAL STRENGTHEN MODEL TELESCOPING CYLINDER USAGE BETTER LEVEL OF 1050MM CYLINDER ONLY ONE SUPPLIER OF LOG STRIP, PROFESSIONAL DESIGN | ||
MODEL NO. | LS40T-B3-1050MM (GASOLINE ENGINE) | |
LOG SPLITTER SPECIFICATION FOLLOWING | ||
OPERATING TYPE | HORIZONTAL TYPE AND VERTICAL TYPE | |
MAX. FORCE | 40TON | |
COUPLER | 2.0INCH | |
WEDGE | 8.0" CAST WEDGE | |
CYLINDER | 5.0INCH | |
PUMP FLOW | 2-STAGE, 16GPM (GALLON PER MINUTE) | |
LOG LENGTH TO SPLIT | 1100MM/44INCH | |
LOG DIAMETER TO SPLIT | 560MM to 650MM | |
AUTOMATIC CYLINDER RETURN | YES | |
JACK STAND (FRONT AND REAR) | YES | |
TIRE | DOT AND E9 CERTIFICATE, 8INCH RIM, 16INCH WHEEL, TUBELESS, FOR HIGHWAY USAGE | |
HP OIL HOSE | 2-LAYERS STEEL-WIRE NET, 13MM INNER SIZE; 40MPA PRESSURE CAPACITY | |
H-BEAM | INDUSTRIAL STANDARD, 175MM*175MM | |
HYDRAULIC TANK CAPACITY | 30.5LITER | |
N.W./PC | 277.50KGS | |
G.W./PC | 287.50KGS | |
WHOLE MACHINE CERTIFICATE | CE | |
PACKING SIZE | 2050MM*560MM*540MM | |
QUANTITY IN CONTAINER | 40PCS/20FT; 88PCS/40FT/40HQ | |
ENGINE SPECIFICATION FOLLOWING | ||
ENGINE | 188F, 13.0HP, SINGLE-CYLINDER, AIR-COOLED, 4 STROKE,SINGLE CYLINDER, HORIZONTAL SHAFT | |
ENGINE CERTIFICATE | CE,EPA, EC-II, CARB, EMC | |
BORE*STROKE | 88MM*64MM | |
DISPLACEMENT | 389ML | |
COMPRESSION RATIO | 8.2:1 | |
MAX. POWER OUTPUT | 8.2KW/4000RPM | |
FUEL TANK CAPACITY | 6.5L | |
ENGINE OIL CAPACITY | 1.1L | |
FUEL CONSUMPTION | 374G/KW.H | |
NET WEIGHT OF ENGINE | 31.00KGS | |
START TYPE | RECOIL OR RECOIL/ELECTRIC | |
GOOD QUALITY IS FROM COMPARISON. | ||
NO. | OUR MACHINE | MACHINE OF OTHER SUPPLIERS |
WEDGE | We use cast wedge which can support 3800PSI pressure | Other suppliers use welded wedge which can support less 2500PSI pressure |
H-BEAM | We use 175mm*175mm industrial standard H-beam | Some suppliers use 150mm*150mm H-beam or even use welded iron plate as beam which is easy bended |
END-PLATE | We use 40mm or 50mm thickness steel plate as end-plate | Other suppliers use U-steel or 20mm thickness steel plate and some filler as end-plate |
TIRE | We use DOT standard tubeless tire which is for trailer use only | Other suppliers use tube tire which can't be used for highway usage. |
HYDRAULIC TANK | We use 30.5liter volume hydraulic tank, big volume tank can let the machine work for long time and keep normal pressure | Other suppliers use 20liters volume hydraulic tank. Small volume tank leads to machine being high temperature in short time |
OUTRIGGER LEG | We supply 2 outrigger legs with same size for each one machine | Other suppliers supply 1 outrigger leg |
CYLINDER | We promise that our hydraulic cylinder is with at most 1% leaking oil percentage | Other suppliers can't promise same. |
OIL PUMP | We promise our 2-stage pump in good quality, at least 99.5% percent of pass | Other suppliers can't promise same |
CONTROLLING VALVE | We promise our controlling valve in good quality, at least 98% percent of pass | Other suppliers can't promise same.
|
HYDRAULIC TANK | We promise our hydraulic tank 100% w/o leaking oil | Other suppliers can't promise same. |
HERE ONLY ONE IS! | ||
JUST WE MAKE LOG STRIP FOR LOG SPLITTER | ||
JUST WE MAKE TELESCOPING CYLINDER FOR 1050MODEL | ||
JUST WE MAKE TELESCOPING CYLINDER FOR 1050MODEL | ||
WE DARE SAY | ||
We make what they are making and what they can’t make | ||
Fewer suppliers can meet you quality if we can’t’ | ||
Here you can know what profession for both log splitter and log saw is. | ||
