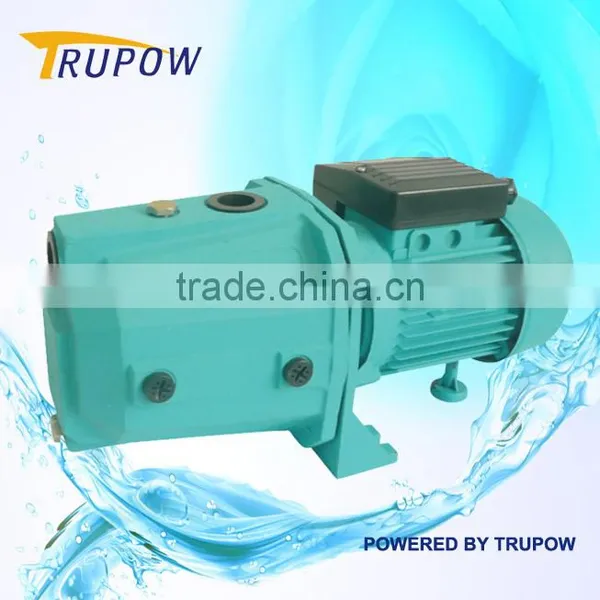

Cast Iron Body Brass Impeller JET Series Water Pumps
Operating conditions:
1. ing pressure 8 bar
2. Liquid temperature up to 60ìC
3. Ambient temperature up to 40ìC
4. Total suction lift up to 9m
5. Continuous duty
Motor:
1. Two-Pole induction motor(n=2900r.p.m.)
2. Insulation Class B/F
3. Protection IPX4
Material:
1. Pump body: Cast Iron
2. Motor Support: Cast Iron
3. Impeller: Brass/Noryl
4. Diffuser: Noryl
5. Shaft with rotor: Hi-Cr plated 45# Steel/Stainless Steel
6. Mechanical seal: Carbon/Ceramic
Application:
-Self priming jet water pumps with a very high hydraulic performance and a considerable pressure capacity.
-Able to pump up to mt.9 depth and work perfectly even in soda-water
-Suitable for water lifting and distribution in domestic fittings by small and medium sized tanks.
Model |
Power |
Max. Flow
(L/h)
|
Max.Head
(m)
|
Max.Suct.
(m)
|
Inlet/Outlet
(inch)
|
G.W./N/W.
(kg)
|
Packing size(mm)
|
QTY/20”CTR(pc)
|
|
KW |
HP |
||||||||
JET60A |
0.45 |
0.6 |
3200 |
44 |
9 |
1”x1” |
12/11 |
390x210x230 |
1540 |
JET80A |
0.60 |
0.80 |
3400 |
48 |
9 |
1”x1” |
14/13 |
440x200x230 |
1540 |
JET100A |
0.75 |
1.0 |
3600 |
50 |
9 |
1”x1” |
15/14 |
440x200x230 |
1250 |
