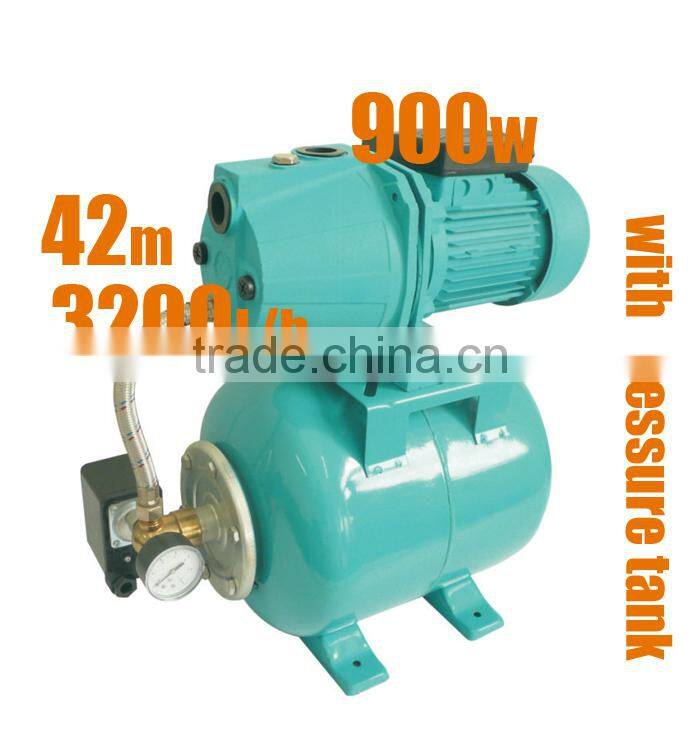

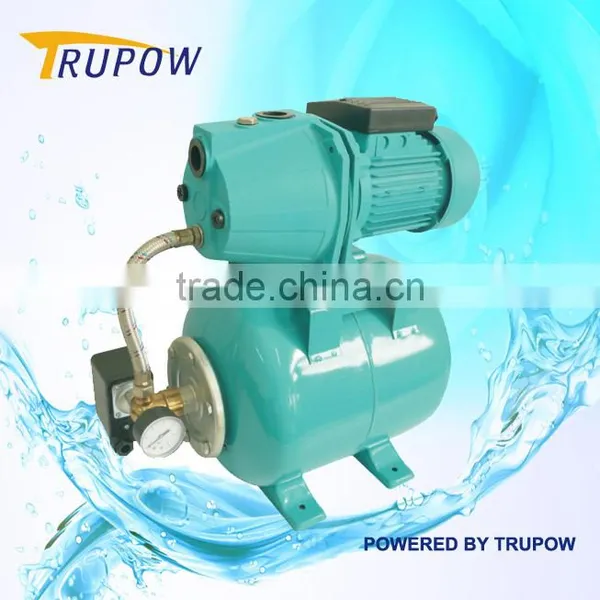

Booster Garden Electric Water Pump With Pressure Tank
Operating conditions:
1. ing pressure 8 bar
2. Liquid temperature up to 60ìC
3. Ambient temperature up to 40ìC
4. Total suction lift up to 9m 5. Continuous duty
Motor:
1. Two-Pole induction motor(n=2900r.p.m.)
2. Insulation Class B/F
3. Protection IP44
Material:
1. Pump body: Cast Iron
2. Motor Support: Cast Iron
3. Impeller: Noryl/Brass
4. Diffuser: Noryl
5. Shaft with rotor: Hi-Cr plated 45# Steel/Stainless Steel
6. Mechanical seal: Carbon/Ceramic
Application:
-Self priming jet water pumps with a very high hydraulic performance and a considerable pressure capacity.
-Able to pump up to mt.9 depth and work perfectly even in soda
-water -Suitable for water lifting and distribution in domestic fittings by small and medium sized tanks.
Technical Data
Model |
Power |
Max. Flow
(L/h)
|
Max.Head
(m)
|
Max.Suct.
(m)
|
Inlet/Outlet
(inch)
|
G.W./N/W.
(kg)
|
Packing size(mm)
|
QTY/20”CTR(pc)
|
|
KW |
HP |
||||||||
CGP900-JF1C |
0.9 |
1.2 |
3200 |
42 |
8 |
1”x1” |
19/17.5 |
460x280x540 |
420 |
CGP1100-JF1C |
1.1 |
1.5 |
3400 |
45 |
8 |
1”x1” |
19.8/18 |
460x280x540 |
420 |
CGP1300-JF1C |
1.3 |
1.7 |
3600 |
48 |
8 |
1”x1” |
20/18.5 |
460x280x540 |
420 |
Picture for more details
Workshop
Exhibition
Certification
You can believe&choose us :
1. We have 11 years experiences in supplying pumps to Europe, Australia, USA, Russia.
2. We have not only produce garden pumps, also we can offer submersible pumps, diesel transfer pumps, etc.
3. We have a very strong quality control system: Raw material control / process control/component quality contorl/ finished product quality inspection/ mass production spot check/ Inspection company check
4. We have a professional design team who deal with color box/ Instruction manual/ prodcut design accroding to customer's requirement.
5. We have competitive price and have best delivery time, most spare parts are produced by our factory, and we have the old experience workes.
6. We have best after-sale service, and we are very confident in our products to offer customers 1 year warranty. The customers are guaranteed by our 100% satisfaction on all products.
r garden pumps, pond products, etc.
