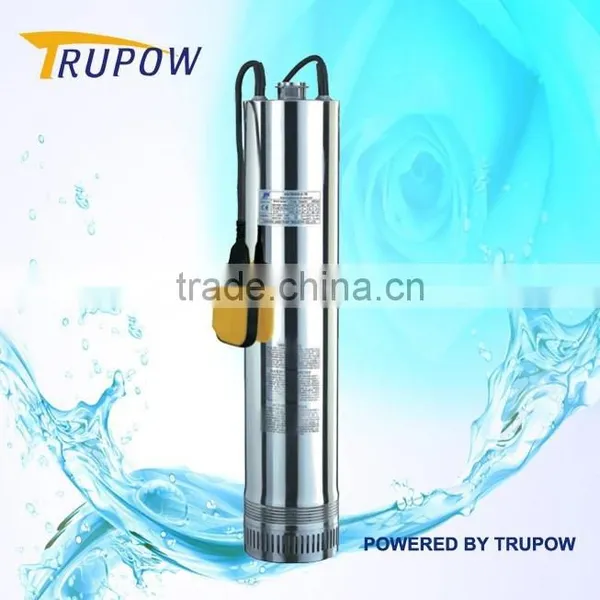

Multistage deep well submersible pump 0.55kw
- 20000 Piece / Pieces per Month
- Shanghai/Ningbo
- T/T L/C D/P D/A Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | TRUPOW | Model Number: | 125SCM403-0.55,125SCM403A-0.55 |
Theory: | Electromagnetic Pump | Structure: | Multistage Pump | Usage: | Water |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, Electric |
Pressure: | High Pressure | Application: | Submersible |
Product Description
Multistage deep well submersible pump 0.55kw
Operating conditions:
-Liquid temperature up to 35oC
-Submersion depth 40m
-Minimum internal diameter of well: 102mm.
-Continuous duty.
Motor:
-Tow-pole induction motor (n=2850r.p.m) -
Built-in over load motor protector
-Insulation Class B/F
-Protection IPX8
Material:
-External pump body: Stainless Steel
-Suction strainer: Stainless Steel
-Impeller and diffusors: Noryl
-Bearing brackets: Brass
-Shaft: Stainless Steel
-Motor housing: Stainless Steel
-Mechanical seal: Ceramic/Graphite
Application:
-Multistage submersible water pumps with radial closed impeller conceived in order to solve any problem of clean water conveyance.
-Suitable for irrigation, and pressure systems and pressure systems and generally for civil and industrial purposes
Workshop
Exhibition
Certification
You can believe&choose us :
-- 11 years experiences in supplying pumps to Europe, Australia, USA, Russia.
professional design team to design anything all according to your requirements,such as the package,etc.
experienced technology workers to guarantee the products quality.
-- strong quality control system:
Raw material control / process control/component quality contorl/ finished product quality inspection/ mass production
spot check/ company check
-- Best after-sale service, offer you 1 year warranty.
you will be 100% satisfied with our products.
