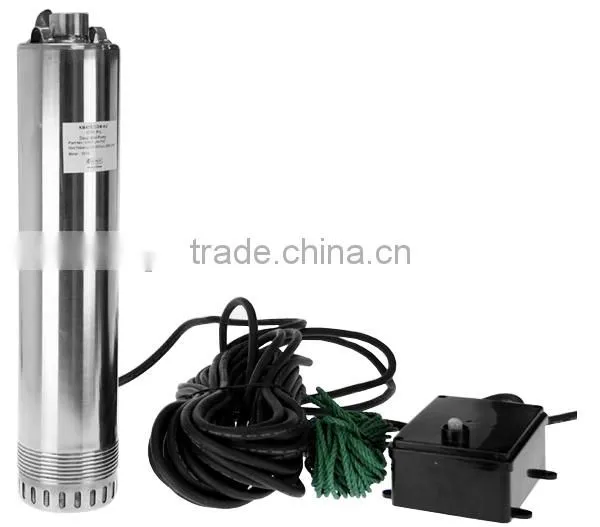

Deep Well Submersible Bore Pump MSP750X6AM02T

Specifications

Deep Well Submersible Bore Pump, for water supply from wells or reserviors.

Deep Well Submersible Bore  Pump Specification:



Operating conditions:
-Liquid temperature up to 35^oC
-Submersion depth 40m
-Minimum internal diameter of well: 102mm.
-Continuous duty.

Motor:
-Tow-pole induction motor (n=2850r.p.m)
-Built-in over load motor protector
-Insulation Class B/F
-Protection IP68

Material:
-External pump body: Stainless Steel
-Suction strainer: Stainless Steel
-Impeller and diffusors: Noryl
-Shaft: Stainless Steel
-Motor housing: Stainless Steel
-Mechanical seal: Ceramic/Graphite

Application:
-Multistage submersible water pumps with radial closed impeller conceived in order to solve any problem of clean water conveyance.
-Suitable for irrigation, and pressure systems and pressure systems and generally for civil and industrial purposes



Model No.	MSP750X6AM02T	MSP900X9AM02T	MSP1000X8AM02T
Rated Power	750W	900W	1000W
Vol & Fre	230V/50Hz	230V/50Hz	230V/50Hz
Max. pump height	40m	60m	55m
Max. pump rate	4500L/H	4500L/H	5200L/H
Max. submersible depth	16m	16m	16m
Max. grain size	1.5mm	1.5mm	1.5mm
Max. pressure	0.4MPa	0.6MPa	0.55MPa
Dia of pipe	G1’’	G1’’	G1’’
Cable specification	H07RN-F4G1.0mm2	H07RN-F4G1.0mm2	H07RN-F4G1.0mm2
Length of cable	20m	20m	20m
dium temperature	35 degree	35 degree	35 degree
Qty of impeller	6pcs	9pcs	8pcs
Master carton size	58.5x37x24.5cm/2pcs	64.5x37x24.5cm/2pcs	65.5x37x24.5cm/2pcs
Master carton gross weight	25kg	25.5kg	27kg
Qty/20’GP	1058pcs	965pcs	950pcs
