Specifications
Submersible Pump For Clean Water1.for garden irrigation.
2.Ideal household electric pump

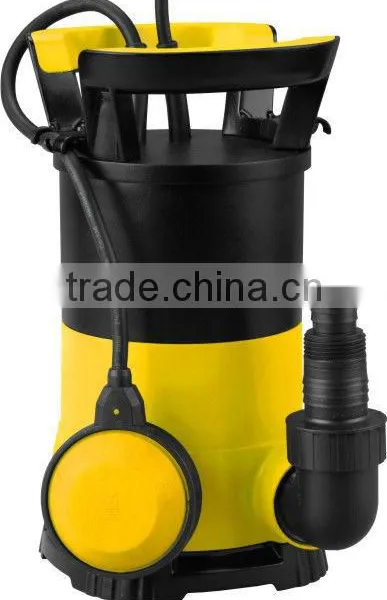

Plastic Submersible Pump For Clean Water
Operating Limits:
-Fluid temperature up to 35°C
-Maximum ambient temperature 40°C
Motor:
-Build-in overload motor protector with automatic reset
-Insulation Class B/F
-Protection IP68
Materials:
-Pump body: PP
-Impeller: PP/stainless steel if request
-Shaft with rotor: 45# Carbon Steel/Stainless iron
Application:
-Hand-carry submersible automatic water pumps.
-Able to drain infiltrating water, cellars to reservoirs, clean or slightly dirty water and for garden irrigation.
-The Clean Water Submersible Pump is ideal for numerous applications such as draining flooded laundry, bathroom, basement or garage, emptying rainwater tanks, pools and spas and transferring water for domestic irrigation.
Overview:
Ideal for numerous applications
Adjustable water outlet compatible with 25/35mm tubing and 25mm tap adaptors
Float switch automatically turns off pump once minimum water level is reached
Thermal overload protection protects internal components by automatically shutting off motor in the event of overheating

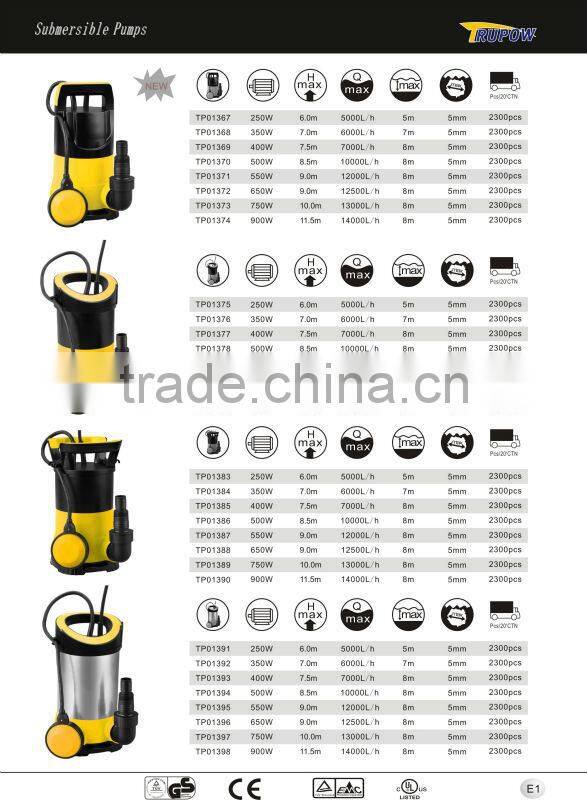

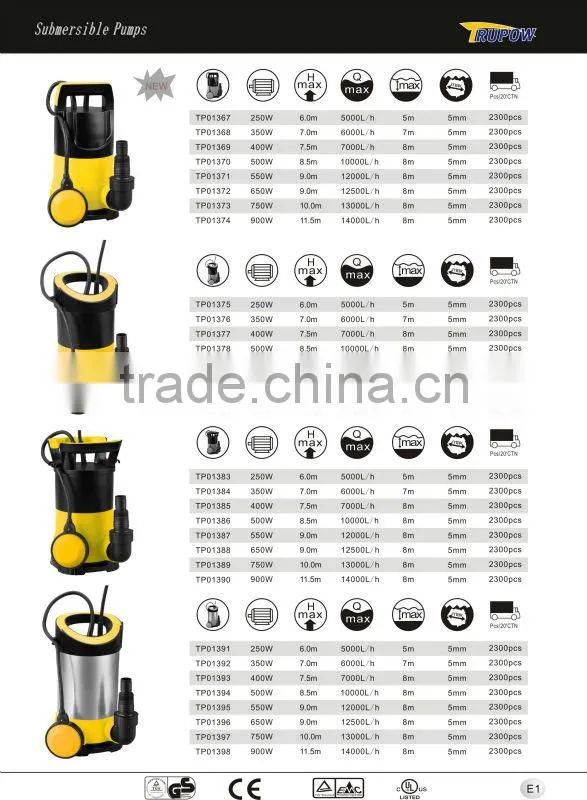

Technical Data:
MODEL | POWER (W) | MAX HEAD (M) | MAX FLOW (L/H) | MAX SUB. DEPTH (M) | MAX GRAIN SIZE | CABLE AND LENGTH (M) | QTY/20CTN (PC) |
TP01383 | 250 | 6.0 | 5000 | 5 | 5MM | H05RN-F3G0.75mm2X10m | 2300 |
TP01384 | 350 | 7.0 | 6000 | 7 | 5MM | H05RN-F3G0.75mm2X10m | 2300 |
TP01385 | 400 | 7.5 | 7000 | 7 | 5MM | H05RN-F3G0.75mm2X10m | 2300 |
TP01386 | 500 | 8.5 | 10000 | 7 | 5MM | H05RN-F3G1.0mm2X10m | 2300 |
TP01387 | 550 | 9.0 | 12000 | 7 | 5MM | H05RN-F3G1.0mm2X10m | 2300 |
TP01388 | 650 | 9.0 | 12500 | 7 | 5MM | H07RN-F3G1.0mm2X10m | 2300 |
TP01389 | 750 | 10.0 | 13000 | 7 | 5MM | H07RN-F3G1.0mm2X10m | 2300 |
TP01390 | 900 | 11.5 | 14000 | 7 | 5MM | H07RN-F3G1.0mm2X10m | 2300 |
