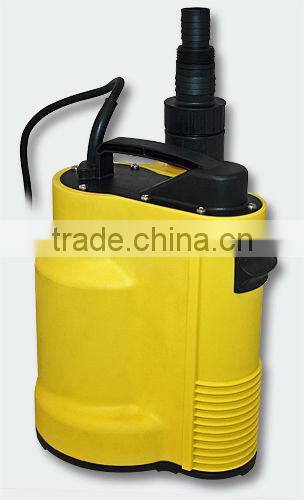

Electric Submersible Water Pumps With Integrated Float Switch
- NINGBO/SHANGHAI
- T/T L/C
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | TRUPOW | |
| Model Number | TP01356~TP01436 | Theory | Electromagnetic Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, Electric | Pressure | Low Pressure | |
| Application | Submersible |
Product Description
Specifications
Submersible Water Pumps1.Integrated float switch
2.With a non-return valve
3.New design
Submersible Water Pumps
Operating Limits:
-Fluid temperature up to 35°C
-Maximum ambient temperature 40°C
Motor:
-Build-in overload motor protector with automatic reset
-Insulation Class B/F
-Protection IPX8
Materials:
-Pump body: PP
-Impeller: PP/stainless steel if request
-Shaft with rotor: 45# Carbon Steel/Stainless steel
Application:
-Hand-carry submersible automatic water pumps.
-Able to drain infiltrating water, cellars to reservoirs, clean or slightly dirty water and for garden irrigation.

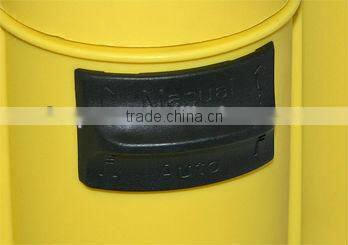

**Integrated float switch, Remove water down to min.level 3mm
MODEL | POWER (W) | MAX HEAD (M) | MAX FLOW (L/H) | MAX SUB. DEPTH (M) | MAX GRAIN SIZE | CABLE AND LENGTH (M) | QTY/20CTN (PC) |
TP01356 | 250 | 6.0 | 5000 | 5 | 5MM | H05RN-F3G0.75mm2X10m | 1800 |
TP01357 | 350 | 7.0 | 5500 | 5 | 5MM | H05RN-F3G0.75mm2X10m | 1800 |
TP01358 | 400 | 7.5 | 7000 | 5 | 5MM | H05RN-F3G0.75mm2X10m | 1800 |
TP01359 | 500 | 8.5 | 9000 | 7 | 5MM | H05RN-F3G0.75mm2X10m | 1800 |
TP01436 | 550 | 9.0 | 10000 | 7 | 5MM | H05RN-F3G0.75mm2X10m | 1800 |
