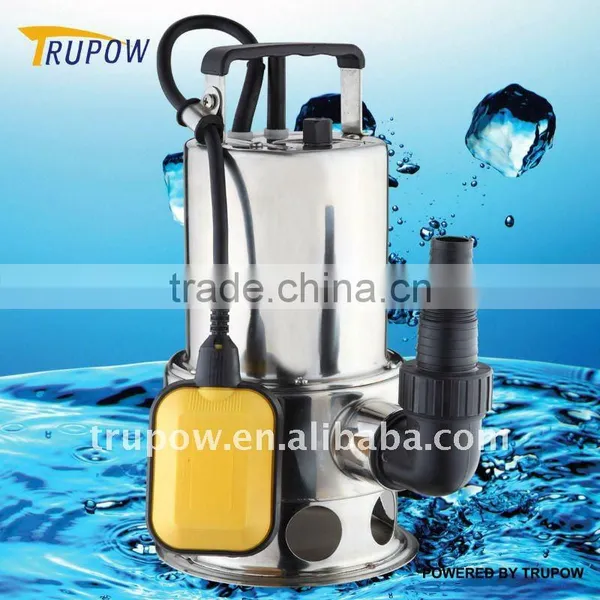

submersible sewage dirty pump for water

Specifications

Sewage dirty pump, able to drain infiltrating water, cellars to reservoirs, slight dirty water.

Submersible sewage dirty pump Spefication:



Operating Limits:
-Fluid temperature up to 35°C
-Maximum ambient temperature 40°C

Motor:
-Build-in overload motor protector with automatic reset
-Insulation Class B/F
-Protection IP68

Materials:
-Pump body: Stainless steel
-Impeller: PP/stainless steel
-Shaft with rotor: 45# Carbon Steel/Stainless iron

Application:
-Submersible dirty water pumps with back impeller suitable to lift waste liquids even with suspended solids.
-Able to drain infiltrating water, cesspools or reservoirs, decanting water and clean, dirty or muddy swimming pools.

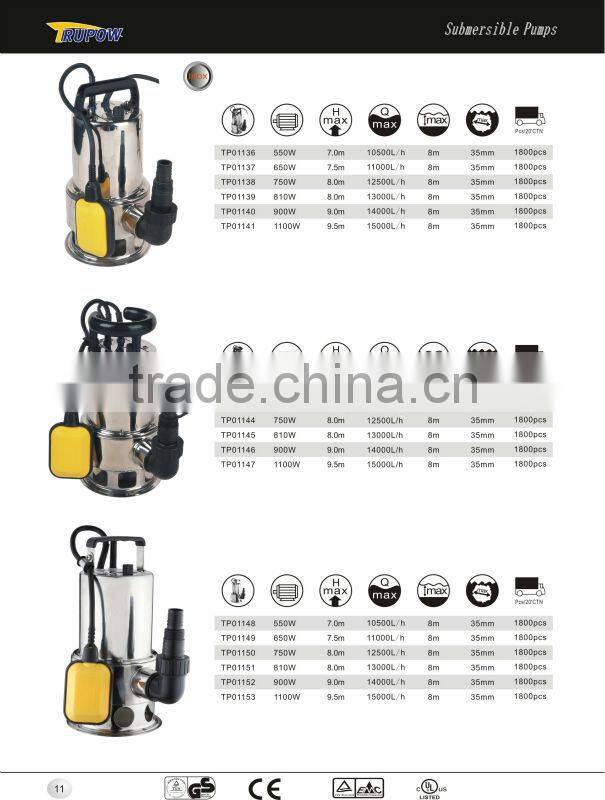

Technical Data:



MODEL	POWER (W)	MAX HEAD (M)	MAX FLOW (L/H)	MAX SUB. DEPTH (M)	MAX GRAIN SIZE	CABLE AND LENGTH (M)	QTY/20”CTN (PC)
TP01148	550	7.0	10500	7	35MM	H05RN-F3G1.0mm2X10m	1800
TP01149	650	7.5	11000	7	35MM	H05RN-F3G1.0mm2X10m	1800
TP01150	750	8.0	12500	7	35MM	H07RN-F3G1.0mm2X10m	1800
TP01151	810	8.0	13000	7	35MM	H07RN-F3G1.0mm2X10m	1800
TP01152	900	9.0	14000	7	35MM	H07RN-F3G1.0mm2X10m	1800
TP01153	1100	9.5	15000	7	35MM	H07RN-F3G1.0mm2X10m	1800
