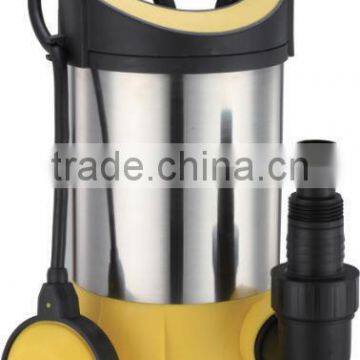

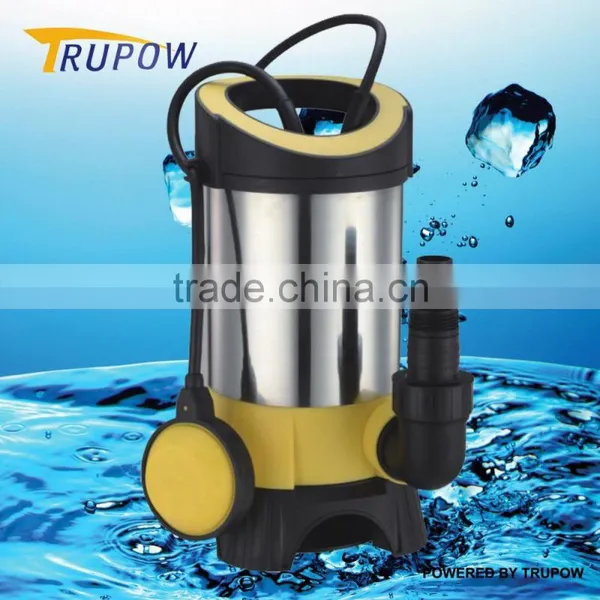

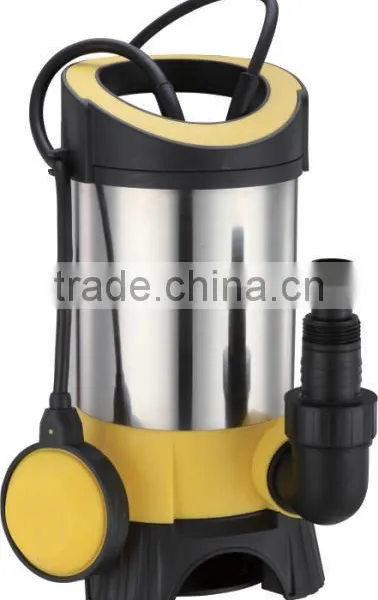

750W Heavy Duty Electric Float Switch Submersible Sewage Pump Description
It is ideal for general submersible water applications such as able to drain infiltrating water, cellars to reservoirs, clean or slightly dirty water and for garden irrigation. emptying spas, hot tubs, pools, flooded basements or garden.
Please note that it is not suitable for 24 hour continuous operation such as powering garden water features or fountains as other sellers may imply.
Operating Limits:
-Fluid temperature up to 35°C
-Maximum ambient temperature 40°C
Motor:
-Build-in overload motor protector with automatic reset
-Insulation Class B/F
-Protection IPX8
Materials:
-Pump body: Stainless steel
-Impeller: PPO, stainless steel if requested
-Shaft with rotor: 45# Carbon Steel, Stainless steel if requested
Application:
-Submersible dirty water pumps with back impeller suitable to lift waste liquids even with suspended solids.
-Able to drain infiltrating water, cesspools or reservoirs, decanting water and clean, dirty or muddy swimming pools.
Technical Data:
Fully Submersible
Float Switch - automatically switch off when water level drops
(from 7cm to 53cm)
Thermal Overload Protection - for longer motor life
Stainless Steel Body including Strainer Base
Fitting for Hose or Direct Pipe Connection
Rated Power: 750W
Voltage/Frequency: 230V/50Hz
Max. Pump Rate: 13000 L/h
Max. Pressure: 0.9 bar
Max. Delivery Height: 9m
Max. Submersion Depth: 7m
Max. Grain/ Particle Size: 35mm
Max. Temperature of water handled: 35 Degree Celsius
Min Water Level for operation: 7cm
Power Cable :10m
Discharge outlet 1"(25mm),1.25"(32mm), 1.5"(38mm) (Universal Connector Included)
MODEL |
POWER
(W)
|
MAX HEAD
(M)
|
MAX FLOW
(L/H)
|
MAX SUB. DEPTH
(M)
|
MAX GRAIN
SIZE
|
CABLE AND LENGTH
(M)
|
QTY/20”CTN
(PC)
|
TP01419 |
400 |
5.0 |
7500 |
5 |
35MM |
H05RN-F3G0.75mm2X10m |
2040 |
TP01420 |
550 |
7.0 |
10500 |
7 |
35MM |
H05RN-F3G1.0mm2X10m |
2040 |
TP01421 |
650 |
7.5 |
11500 |
7 |
35MM |
H05RN-F3G1.0mm2X10m |
2040 |
TP01422 |
750 |
9.0 |
13000 |
7 |
35MM |
H07RN-F3G1.0mm2X10m |
1960 |
TP01423 |
900 |
10.0 |
14000 |
7 |
35MM |
H07RN-F3G1.0mm2X10m |
1960 |
TP01424 |
1100 |
11.0 |
15000 |
7 |
35MM |
H07RN-F3G1.0mm2X10m |
1960 |

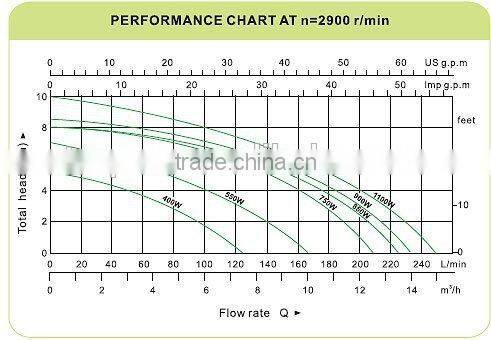

Performace Chart:

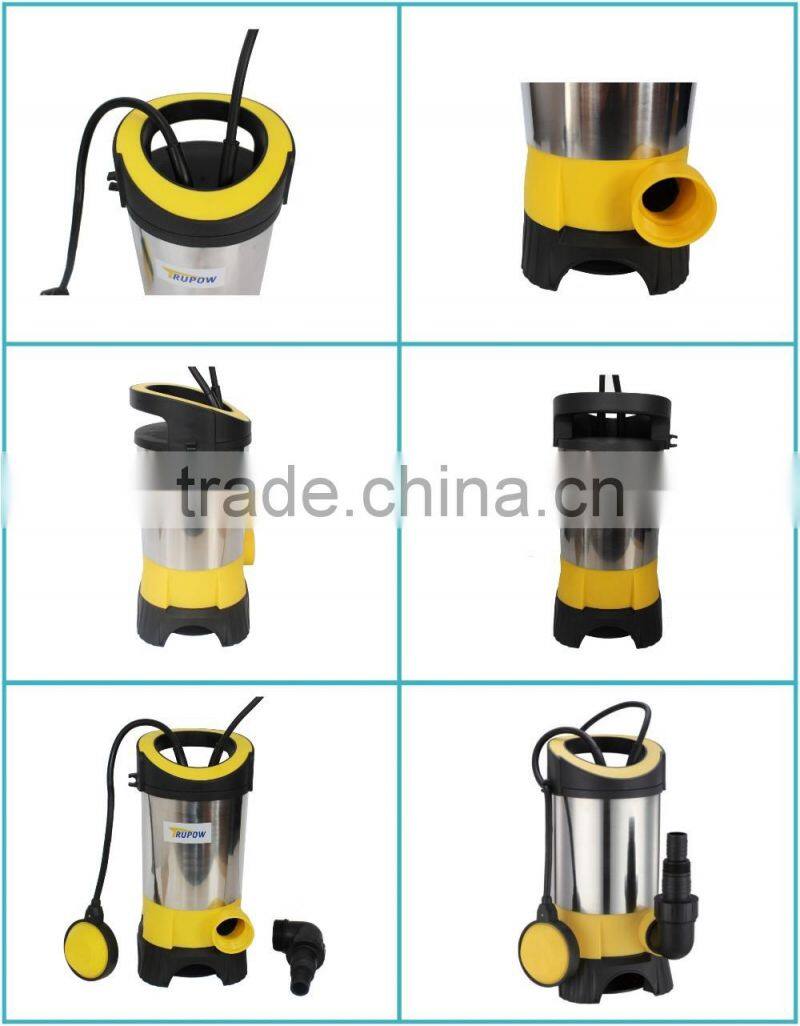

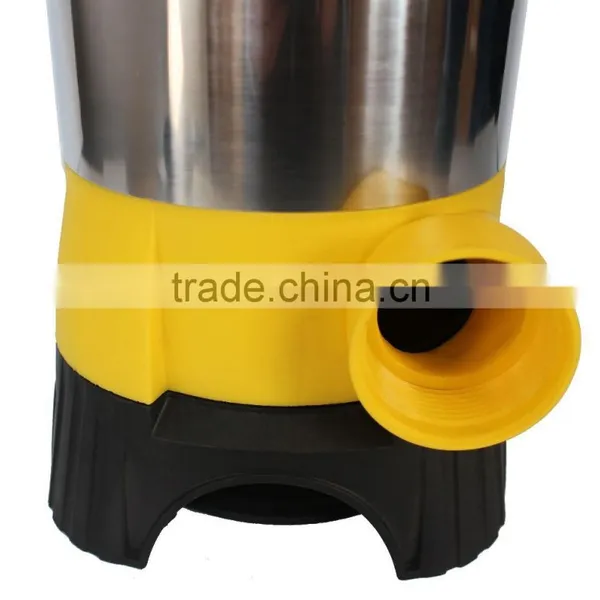

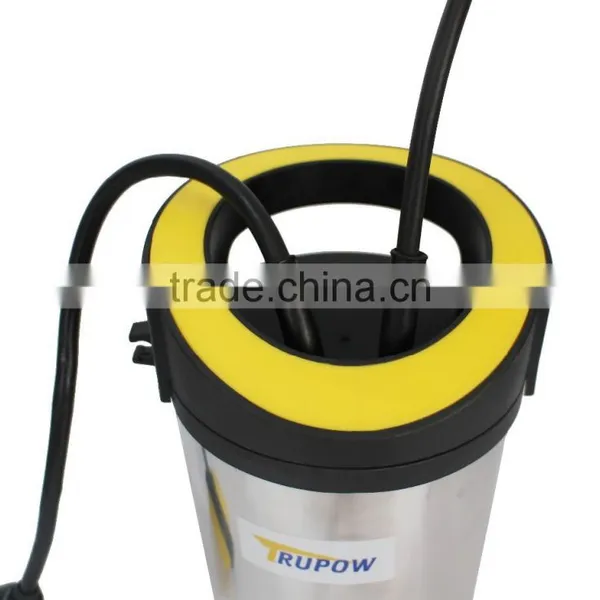

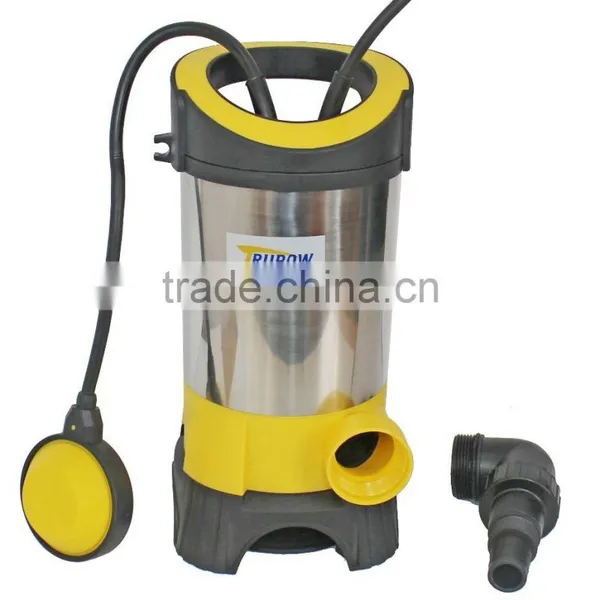

Product More Photos:
Workshop:
Exhibition:
Certification:
The reason Why choose us?
1. We have 11 years experiences in supplying pumps to Europe, Australia, USA, Russia.
2. We have not only produce submersible water pumps, also we can offer garden pumps, diesel transfer pumps, etc.
3. We have a very strong quality control system: Raw material control / process control/component quality contorl/ finished product quality inspection/ mass production spot check/ Inspection company check
4. We have a professional design team who deal with color box/ Instruction manual/ prodcut design accroding to customer's requirement.
5. We have competitive price and have best delivery time, most spare parts are produced by our factory, and we have the old experience workes.
6. We have best after-sale service, and we are very confident in our products to offer customers 1 year warranty. The customers are guaranteed by our 100% satisfaction on all products.
