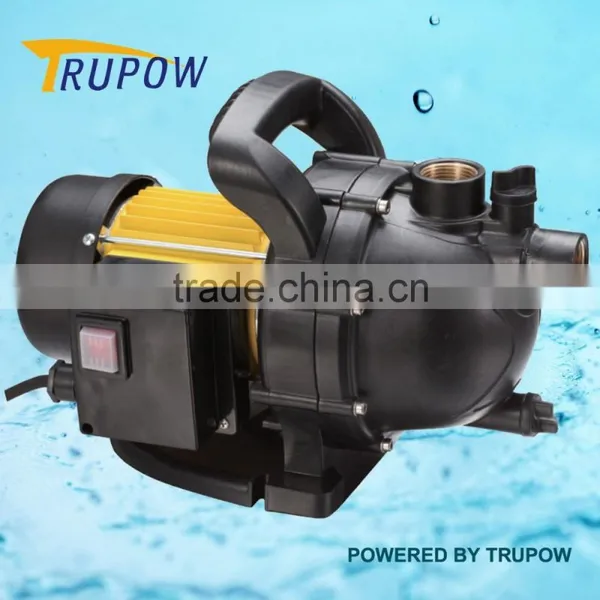

TP03252 800W New Design Economic Pressure Jet Pump

Specifications

Pressure Jet pump
800W,Max Capacity 3200L/H,Max Delivery height 40.0m,New Design Pressure Jet Pump



Automatic Jet Pump With Plastic Pump Head Description







It is ideal for conveyance of clean water. They are particularly suitable for domestic applications such as supply water from well, pool, etc, the automatic distribution of water by surge tanks and pressure switch ,gardening, and increasing of water pressure.







This pump shall not be used to convey abrasive materials, silt materials, slurry, or other viscous materials, and shall not be suitable for long time continuous operation (e.g. cyclic running in filter of swimming pond or act as industrial equipment).







Features







Automtic Jet Pump



Build-in overload motor protector with automatic reset



Protection IPX4



Pump Head: PP



Impeller: PP/brass if request
Shaft with rotor: 45# Carbon Steel/Stainless steel if request



Liquid temperature: Up to 35°C



Dry-running of pump shall be prohibited.







Specifications







MODEL	POWER (W)	MAX HEAD (M)	MAX FLOW (L/H)	MAX SUC. DEPTH (M)	MAX PRE. (BAR)	CABLE AND LENGTH (M)	QTY/20”CTN (PC)
TP03252	600	35	2800	7	3.5	H07RN-F3G1.0mm2X1.2m	1400
TP03253	800	40	3200	8	4	H07RN-F3G1.0mm2X1.2m	1400
TP03254	1000	44	3500	8	4.4	H07RN-F3G1.0mm2X1.2m	1400
TP03255	1200	48	3800	8	5	H07RN-F3G1.0mm2X1.2m	1400









The reason Why choose us?



1. We have 9 years experiences in supplying pumps to Europe, Australia, USA, Russia.



2. We have not only produce submersible water pumps, also we can offer garden pumps, diesel transfer pumps, etc.



3. We have a very strong quality control system: Raw material control / process control/component quality contorl/ finished product quality inspection/ mass production spot check/ Inspection company check



4. We have a professional design team who deal with color box/ Instruction manual/ prodcut design accroding to customer's requirement.



5. We have competitive price and have best delivery time, most spare parts are produced by our factory, and we have the old experience workes.



6. We have best after-sale service, and we are very confident in our products to offer customers 1 year warranty. The customers are guaranteed by our 100% satisfaction on all products.



7. We have righ experience with the different kinds of clients such as traditional improters,wholesalers,retailers,mail order clients,manufacturers and so on. We can know more clearly what different clients they need about the packaging and procedure.



8. We are highly interested in the developing the new design products with all customers and we offer a talent technical team for this position.



BETTER WATER, BETTER LIFE !!!
