Home > Products > More products > Mine Yt24 Air Compressor Air Leg Rock Drill
Mine Yt24 Air Compressor Air Leg Rock Drill
- Fuzhou or Other ports in China(mainland)
- T/T
You May Like
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Other, Pneumatic | Place of Origin | Fujian, China | |
| Brand Name | DSL | Model Number | YT24 | |
| Usage | Coal | Voltage | Pneumatic Engine Driven | |
| Power(W) | None | Dimension(L*W*H) | 678*228*184MM | |
| Weight | 24KG | Certification | ISO CE | |
| Warranty | None | After-sales Service Provided | No overseas service provided |
Product Description

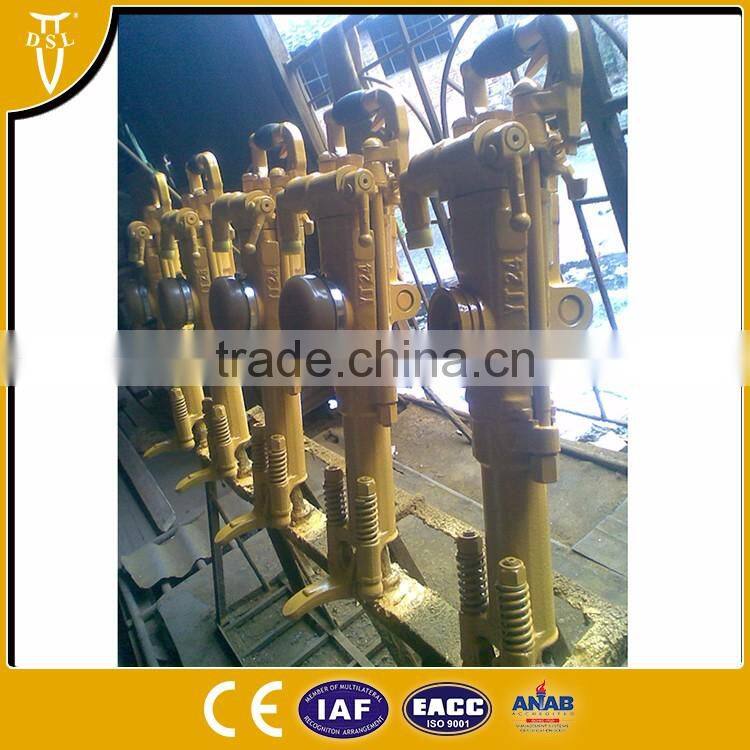

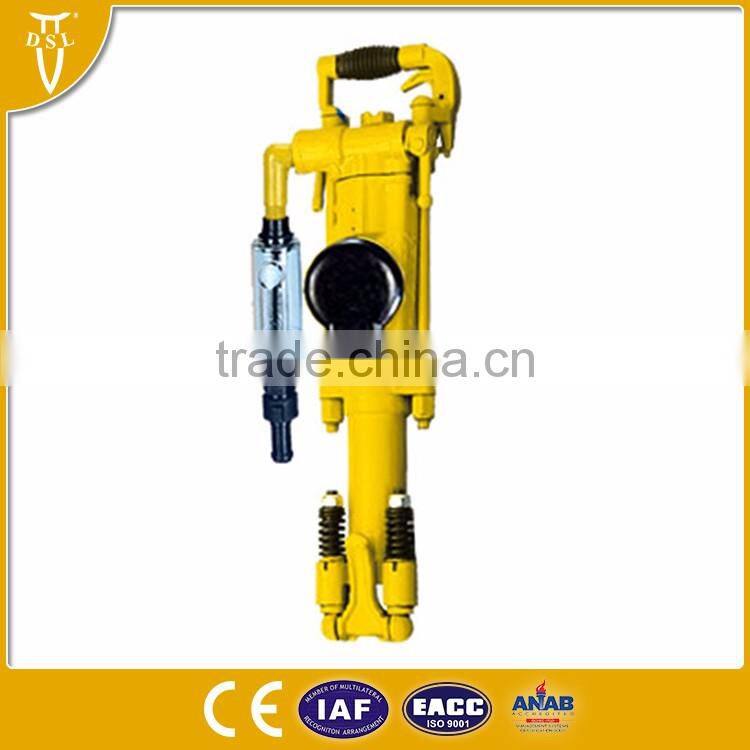

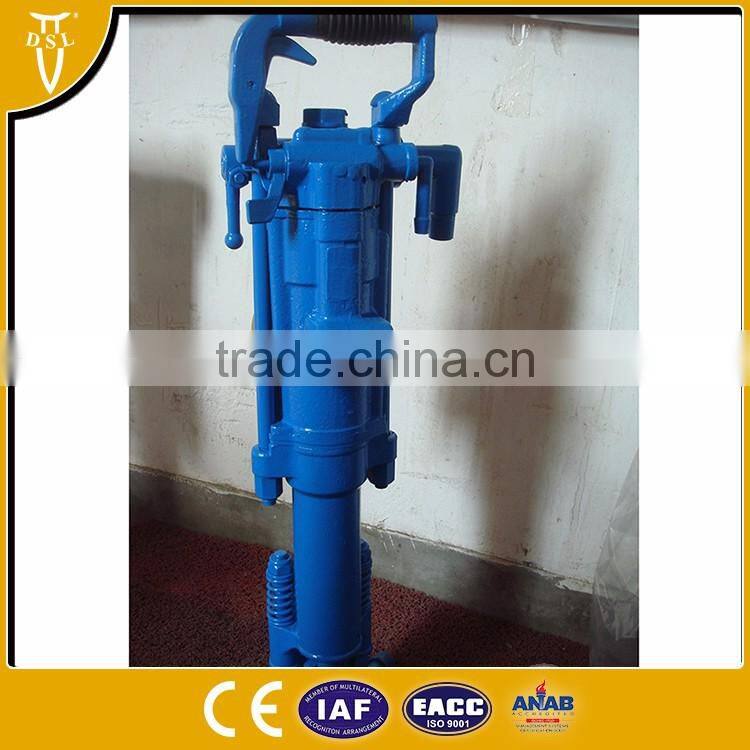

Mine Yt24 Air Compressor Air Leg Rock Drill
The rock drill is a kind of high efficiency air leg rock drill machine.It is widely used for blasting holes and other drilling projects in a quarries, railway construction, water conservancy construction and defence project facility.
It is suitable for drill level or gradient holes in medium hard or hard rock(f=8-18).The drilling depth can be five-eight meters. It can be matched with the FT140BD short air-leg or FT140B long air-leg to use in the basis of the width of rock.Also it can be fixed on drilling-vehicle or drilling-shelf.
To ensure the well lubricating.This rock drill may match FY200B oil reservior.
| Weight | 24 | KG |
| Outside dimension (L*W*H) | 678*228*184 | MM |
| Piston diameter | 70 | MM |
| Piston Stroke | 70 | MM |
| Air pressure | 0.5-0.63 | Mpa |
| Air consumption | ≤67(0.63Mpa) ≤52(0.5Mpa) | L/S |
| Impact frequency | 31 | HZ |
| Rotated speed | 250 | R/min |
| Air hose inner diameter | 19 | MM |
| Water hose inner diameter | 13 | MM |
| rock drill hole diameter | 34-42 | MM |
| Max drilling depth | 5 | MM |
| Shank size | 22*108 | MM |
| FY200B Line Oiler Specifications | ||
| Capacity | 200 | ML |
| Weight | 1.02 | KG |
| FT140B Air Leg | ||
| Weight | 15.6 | KG |
| Length | 1687 | MM |
| Feeding stroke | 1250 | MM |
| Cylinder diameter | 60 | MM |
