Portable Gasoline Block Stone Splitter for Sale
- Fuzhou or Other ports in China(mainland)
- T/T
You May Like
-
Reliable Pneumatic Rock Quarry Splitter for Sale
-
Small Hydraulic Rock Splitter Cylinder Manufacturer
-
Safest Pneumatic Driven Rock Splitter Machine
-
Gasoline Engine Hydraulic Core Concrete Splitter for Mine
-
Gasoline Engine Hydraulic Stone Splitter Machine for Sale
-
Concrete Stone and Rock Splitter Machine Manufacturer
Product Details
| Condition | New | Application | Splitting | |
| Motor Type | Other, Gasoline engine | Power(W) | 7.5hp | |
| Place of Origin | Fujian, China | Brand Name | DSL | |
| Model Number | Gasoline type | Dimension(L*W*H) | 1200*1170*800MM | |
| Certification | ISO9001 | Warranty | 1 Year | |
| After-sales Service Provided | No overseas service provided |
Product Description

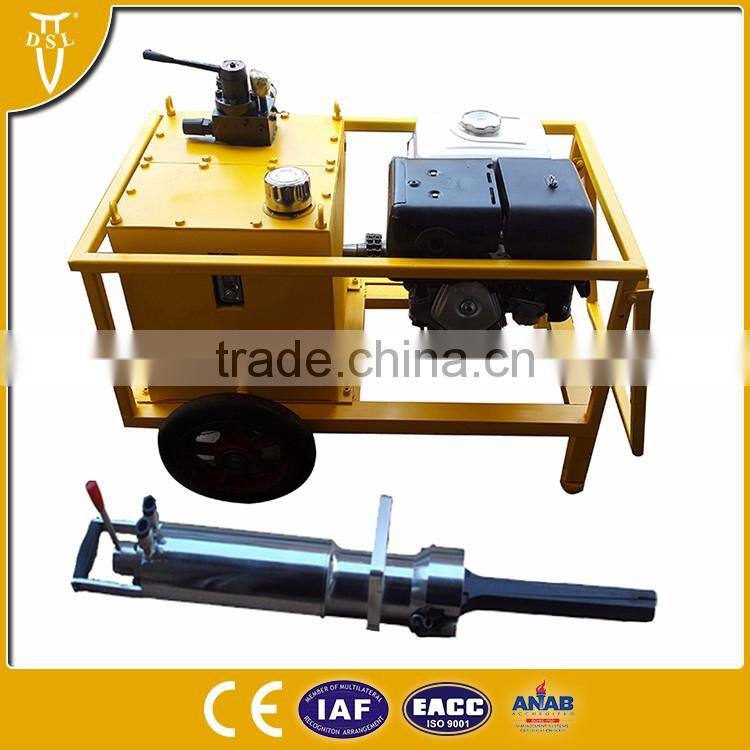

portable gasoline block stone splitter for sale
The hydraulic rock splitter is a kind of hand-hold splitting and demolition tool.It can controllably split rock or concrete.Especially suit for cabined area where large machine can not work.Such as hydraulic breaker and place where is strictly limited of noise,dust,flying debris,shake,exhaust gas,also widely use in the place where need non-explosive and blast forbidden.
| Engine type | Specifications (MM) | Weight (KG) | Fuel tank capacity(L) | Working medium | Engine power | Working pressure (Mpa) | Work flow (L/Min) | Configurable splitting machine number |
| Electric type | 384*280*620 | 75 | 30 | 46 or 68 anti-wear hydraulic oil | 0.75KW 2.2KW 4KW 7.5KW (380V) | 55~60 | 2.13 | 1 2~3 4~6 7~10 handle |
| Diesel type | 1150*1180*940 | 120 | 40 | 46 or 68 anti-wear hydraulic oil | 4.2KW | 55~60 | 2.13 | 1~10 handle |
| Gasoline type | 1200*1170*800 | 100 | 40 | 46 or 68 anti-wear hydraulic oil | 7.5HP | 55~60 | 2.13 | 1~10 handle |
| Pneumatic type | 364*280*620 | 100 | 40 | 46 or 68 anti-wear hydraulic oil | 4.04kw 5.5HP require compressor: 0.63mpa 4.8m3/min | 55~60 | 13 | 1~10 handle |
| Model | Drill hole diameter | pistion inner diameter | Minimum drill hole depth | length wedge | splitting distance | Splitting time | splitting force theoretical | splitting force effective | weight |
| (MM) | (MM) | (MM) | (MM) | (MM) | (S) | (T) | (T) | (KG) | |
| DS80A | Φ38~42 | 80 | ≥450 | 150 | 10~40 | 5~12 | 500 | 280 | 20 |
| DS80B | Φ40~42 | 80 | ≥500 | 200 | 10~40 | 5~12 | 600 | 300 | 21 |
| DS80C | Φ40~42 | 80 | ≥600 | 300 | 10~40 | 5~12 | 680 | 420 | 25 |
| DS80D | Φ45~48 | 80 | ≥800 | 450 | 10~40 | 5~12 | 720 | 450 | 27 |
| DS90A | Φ38~42 | 90 | ≥450 | 150 | 10~40 | 5~12 | 680 | 420 | 26 |
| DS90B | Φ40~42 | 90 | ≥500 | 200 | 10~40 | 5~12 | 720 | 450 | 26.5 |
| DS90D | Φ40~42 | 90 | ≥600 | 300 | 10~40 | 5~12 | 780 | 480 | 27 |
| DS90E | Φ45~48 | 90 | ≥700 | 380 | 10~40 | 5~12 | 820 | 500 | 28 |
