Home > Manufacturing & Processing Machinery > Mining Machinery > Rock Splitter > Darda Hydraulic Rock Splitter DS80
US$ 1,080 - 12,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Splitting
Motor Type:
Other, Pneumatic engine
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou or Other ports in China(mainland)
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Rock Splitter Concrete Splitter And Stone SplitterUS$ 1,080 - 12,000MOQ: 1 Set -
Diesel Quarry Stone Cutting MachinesUS$ 1,080 - 12,000MOQ: 1 Set
-
Home Made Stone Splitting MachineUS$ 1,080 - 12,000MOQ: 1 Set
-
Gasoline Type Hydraulic Hard Stone SplitterUS$ 1,080 - 12,000MOQ: 1 Set
-
Wholesale Gasoline Engine Stone Split EquipmentUS$ 1,080 - 12,000MOQ: 1 Set
Condition
New
Application
Splitting
Motor Type
Other, Pneumatic engine
Power(W)
4.04kw 5.5HP Require compressor: 0.63mpa 4.8m3/min
Place of Origin
Fujian, China
Brand Name
DSL
Model Number
Pneumatic type
Dimension(L*W*H)
364*280*620MM
Certification
ISO9001
Warranty
1 Year
After-sales Service Provided
No overseas service provided

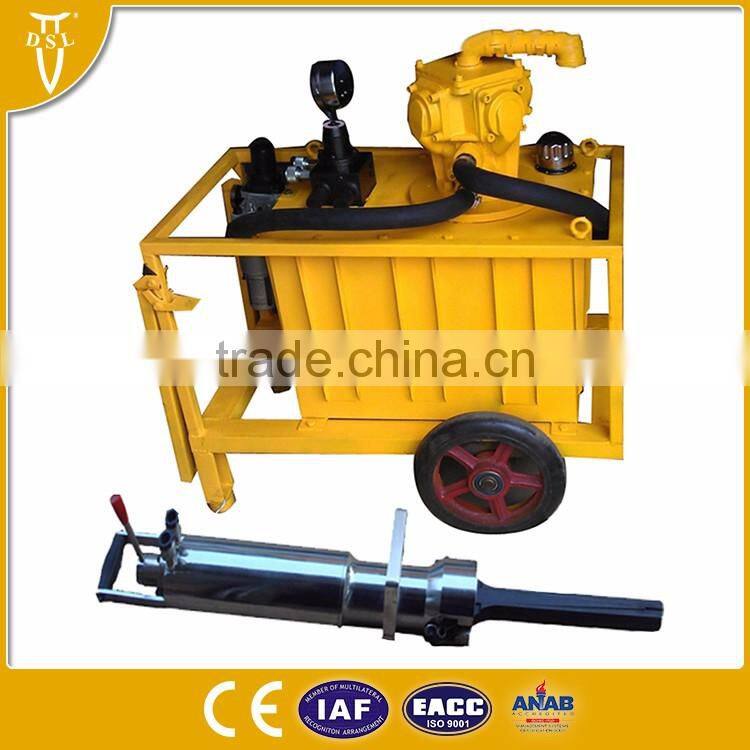

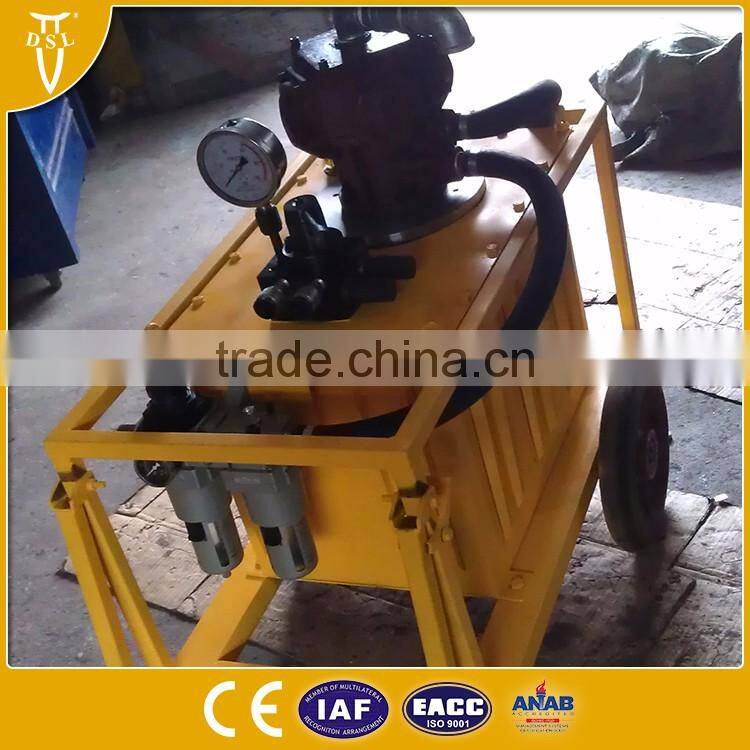

darda hydraulic rock splitter DS80
Product Description
The hydraulic rock splitter is a kind of hand-hold splitting and demolition tool.It can controllably split rock or concrete.Especially suit for cabined area where large machine can not work.Such as hydraulic breaker and place where is strictly limited of noise,dust,flying debris,shake,exhaust gas,also widely use in the place where need non-explosive and blast forbidden.
| Engine type | Specifications (MM) | Weight (KG) | Fuel tank capacity(L) | Working medium | Engine power | Working pressure (Mpa) | Work flow (L/Min) | Configurable splitting machine number |
| Electric type | 384*280*620 | 75 | 30 | 46 or 68 anti-wear hydraulic oil | 0.75KW 2.2KW 4KW 7.5KW (380V) | 55~60 | 2.13 | 1 2~3 4~6 7~10 handle |
| Diesel type | 1150*1180*940 | 120 | 40 | 46 or 68 anti-wear hydraulic oil | 4.2KW | 55~60 | 2.13 | 1~10 handle |
| Gasoline type | 1200*1170*800 | 100 | 40 | 46 or 68 anti-wear hydraulic oil | 7.5HP | 55~60 | 2.13 | 1~10 handle |
| Pneumatic type | 364*280*620 | 100 | 40 | 46 or 68 anti-wear hydraulic oil | 4.04kw 5.5HP require compressor: 0.63mpa 4.8m3/min | 55~60 | 13 | 1~10 handle |
| Model | Drill hole diameter | pistion inner diameter | Minimum drill hole depth | length wedge | splitting distance | Splitting time | splitting force theoretical | splitting force effective | weight |
| (MM) | (MM) | (MM) | (MM) | (MM) | (S) | (T) | (T) | (KG) | |
| DS80A | Φ38~42 | 80 | ≥450 | 150 | 10~40 | 5~12 | 500 | 280 | 20 |
| DS80B | Φ40~42 | 80 | ≥500 | 200 | 10~40 | 5~12 | 600 | 300 | 21 |
| DS80C | Φ40~42 | 80 | ≥600 | 300 | 10~40 | 5~12 | 680 | 420 | 25 |
| DS80D | Φ45~48 | 80 | ≥800 | 450 | 10~40 | 5~12 | 720 | 450 | 27 |
| DS90A | Φ38~42 | 90 | ≥450 | 150 | 10~40 | 5~12 | 680 | 420 | 26 |
| DS90B | Φ40~42 | 90 | ≥500 | 200 | 10~40 | 5~12 | 720 | 450 | 26.5 |
| DS90D | Φ40~42 | 90 | ≥600 | 300 | 10~40 | 5~12 | 780 | 480 | 27 |
| DS90E | Φ45~48 | 90 | ≥700 | 380 | 10~40 | 5~12 | 820 | 500 | 28 |
