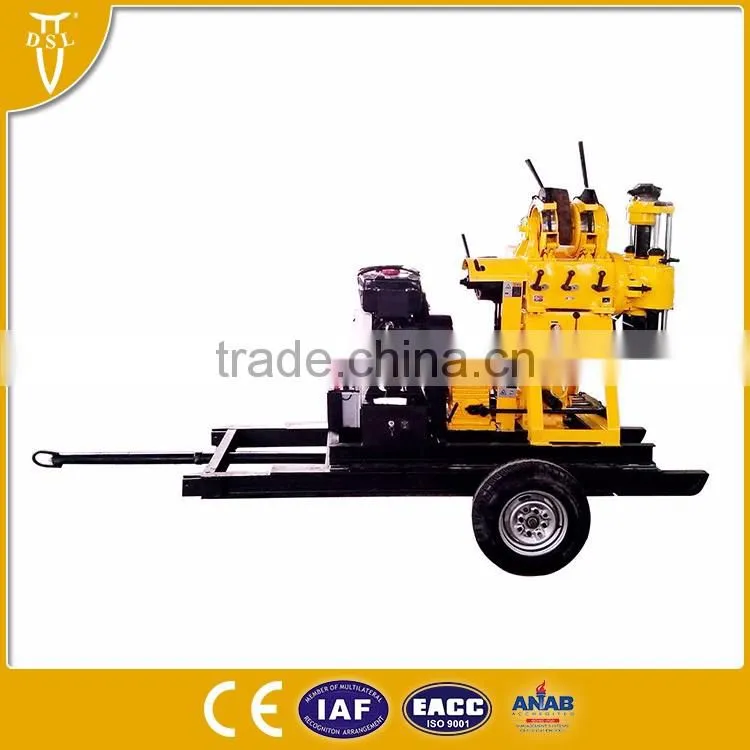

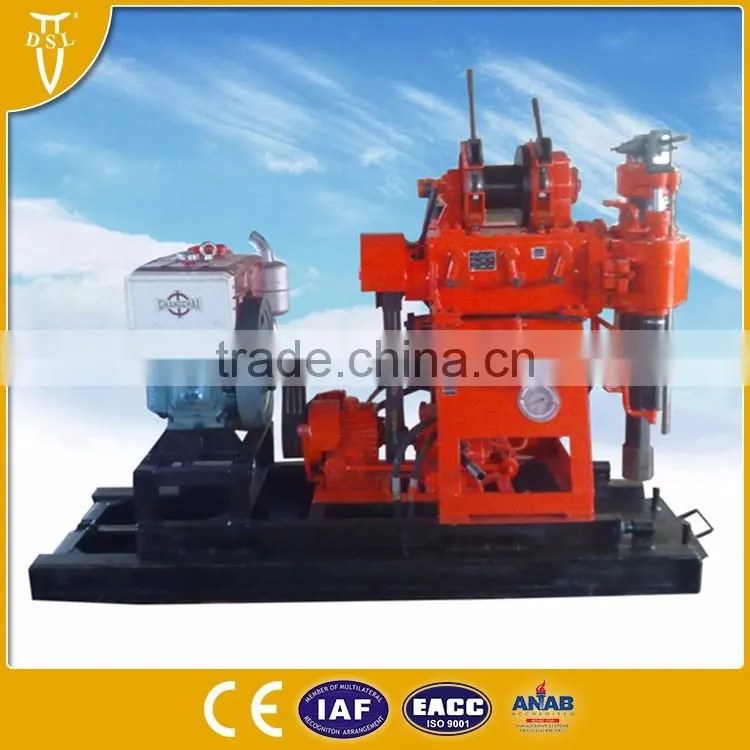

Well drilling machine with hydraulic system XY-200
USD $7,500 - $15,000
/ Set
1 Set(Min.Order)
- 50 Set / Sets per Month
- Fuzhou or Other ports in China(mainland)
- T/T
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | DSL | |
| Model Number | XY-200 | Condition | New | |
| After-sales Service Provided | No overseas service provided |
Product Description
Well drilling machine with hydraulic system XY-200
Product Description
Geology general check exploration, Earth physics exploration,Road and hihg layer buiding ground survey,Well,last opening et cetera drilling engineering
| MODEL | XY-200 |
| 1. Unity machine parameter | |
| Drilling depth | 200m |
| Maximum open hole caliber | 400mm |
| End hole caliber | 75mm |
| Drill rod caliber | 50mm |
| Drilling angle | 90~75 |
| Drill weight (No include power) | 760kg |
| Unity machine dimensions | 2.75*0.95*1.6m |
| Distance betweent drill and hole | 450mm |
| 2. Spindle | |
| Spindle speed | 71,142,310,620r/min |
| Spindle stroke | 450mm |
| 3. Hoist | |
| Max.single line hoisting capacity | 2008kg |
| Reel lifting speed | 17,35,75,160rm/s |
| Tightrope caliber | 13mm |
| Tightrope cubic measure | 35mm |
| Hug follgate belt width | 70mm |
| 4. Mud pump | |
| Type | Horizontal single urn twin-action |
| Displacement | 180L/min |
| Maximum pressure | 1.5Mpa |
| Work pressure | 0.7Mpa |
| Water inlit caliber | 50mm |
| Water to exit caliber | 45mm |
| 5. Power | |
| Dieselengine | 22HP |
| Speedlimit | 2200r/min |
| Electric motor | 15KW |
| Speedlimit | 1460r/min |
