1.Similar to good brand2.Well design below to factory,low price.
3.long-life with high efficient
4.CE and ISO9000

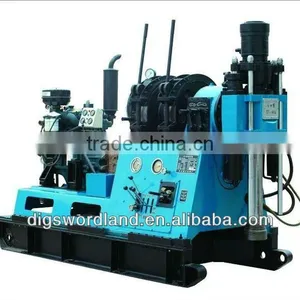

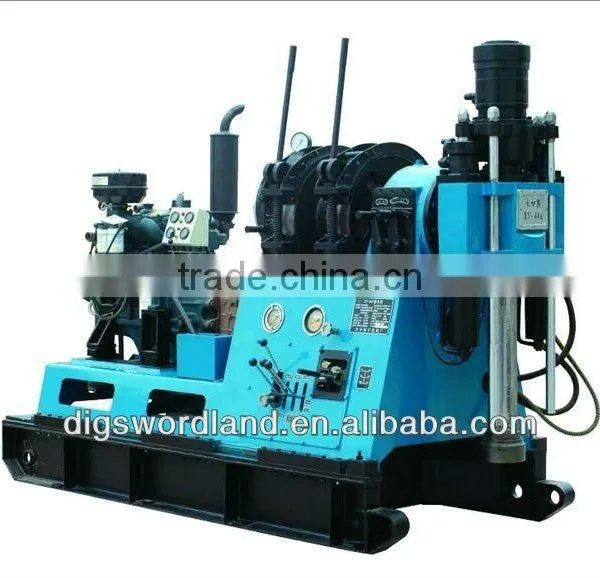

Downhole Drilling Rig SM-200Y
Application
- Used for general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc.
- With hydro-automatic feeding device, and high drilling efficiency.
- Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes.
- Close levers, convenient to operate, safe and reliable operations.
- Compact in structure. All the drill, water pump and diesel engine installed on one base frame result in space-saving.
- Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas.

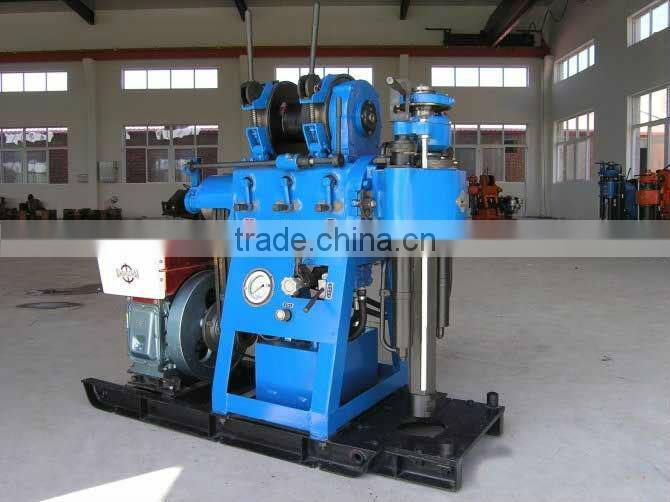

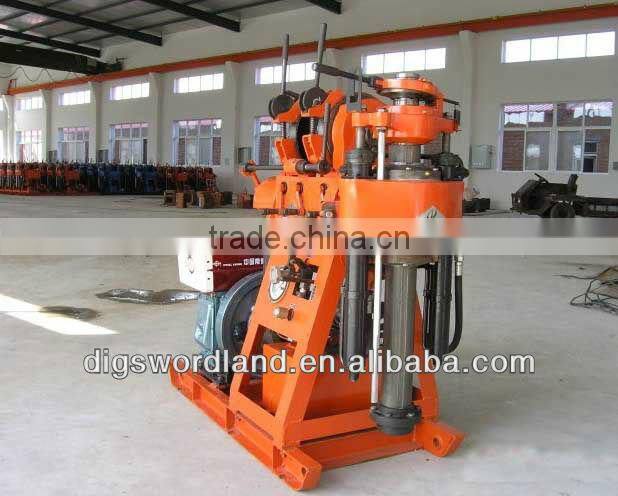

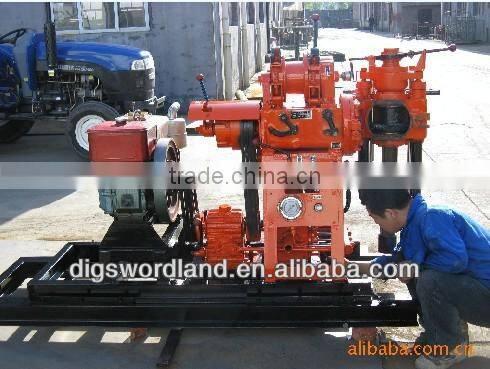

Some picture
The specification about SM-200Y
SM-200Y | |
Specifications | |
Unity machine parameter | |
Drilling depth | 200m |
Drilling caliber | 300mm |
Drill rod caliber | 60mm |
Drilling angle | 90 °~75 ° |
Drill weight (No include power) | 975kg |
Spindle | |
Spindle speed | 64 128 287 557 r/min |
Spindle stroke | 450mm |
Hoist | |
Max.single line hoisting capacity | 2400kg |
Reel lifting speed | 0.41 0.82 1.64m/s |
Tightrope caliber | 12.5mm |
Tightrope cubic measure | 35mm |
Hug floodgate caliber | 260mm |
Hug floodgate belt width | 70mm |
Distance between drill and hole | 450mm |
Mud pump | |
Type | Horizontal single urn twin action |
Displacement | 170L/mim |
Power | |
Diesel engine | S1115 22HP |
Electric motor | Y160M-4 15kw 1440r/min |
Maximum pressure | 3Mpa |
Work pressure | 1.5Mpa |
Water inlet caliber | 40mm |
Water to exit caliber | 30mm |
Triangle conveyer belt | B1728mm |
The specification of other relation water well
Model | SM-100Y | SM-130Y | SM-180Y | SM-200Y |
|---|---|---|---|---|
Drilling depth | 100m | 130m | 180m | 200m |
Maximum open hole diameter | 200mm | 220mm | 220mm | 300mm |
End hole caliber | 75mm | 75mm | 75mm 46mm | 75mm |
Drill rod caliber | 50mm | 50mm | 50mm 42mm | 60mm |
Drilling angle | 90°~75° | 90°~75° | 90°~75° | 90°~75° |
Drill weight(No include power) | 480 510kg | 560kg | 610kg | 975kg |
About us(Fuzhou Dig Sword Land Machine Co,Ltd)
Fuzhou Dig Sword Land Machine Co.,Ltd is the Sino-foreign joint venture which mainly business DSL brand from Digswordland Technology Limited. The enterprise is an industrial supplier which specialized in design, manufacture and sales in worldwide and has owned ten product patent right for RB777, B77C, RB777C, and TCA-7 and so on. My company provided air compressed, construction and mining equipment, also related after-sale services. Now our business has throughout 158 countries and area with good reputation.
My Company has advanced equipment, technology, excellent quality, good Service. We found a full set of CE Quality Certificate and carry out the ISO9001 International Quality System to assure the reliability and stability of our production.
The pictures about our certifications
Believe me ,Believe my company.
