100-200m Mounted Water Well Drilling Rig

Specifications

water well drilling rig
1.Similar to good brand
2.Well design below to factory,low price.
3.Drilling depth:200m
4.CE

100-200m mounted water well drilling rig



The application scope about the drilling rig



Used for general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc.

• With hydro-automatic feeding device, and high drilling efficiency.
• Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes.
• Close levers, convenient to operate, safe and reliable operations.
• Compact in structure. All the drill, water pump and diesel engine installed on one base frame result in space-saving.
• Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas.

The specification of the drilling rig



Specifications
Unity machine parameter
Drilling depth		100  180m
Drill rod caliber		50   42mm
End hole caliber		75   46mm
Maximum open hole caliber		220mm
Drilling angle		90°~75°
Unity machine dimensions		2.1×0.9×1.3m
Drill weight (No include power)		610kg
Spindle
spindle speed		130 300 480 730 830 1045r/min
Spindle stroke		450mm
Hoist
Max.single line hoisting capacity		11KN
Single line lifting speed		1.06 0.67 0.32m/s
Tightrope caliber		9.3mm
Tightrope cubic measure		35m
Hug floodgate belt width		50mm
Hug floodgate caliber		240mm
Mud pump
Type	Horizontal single urn twin-action
Displacement	95 77L/min
Diesle engine	s1105  18HP
Electric motor	Y160M—4 11KW
Maximum pressure	1.2Mpa
Work pressure	0.7Mpa



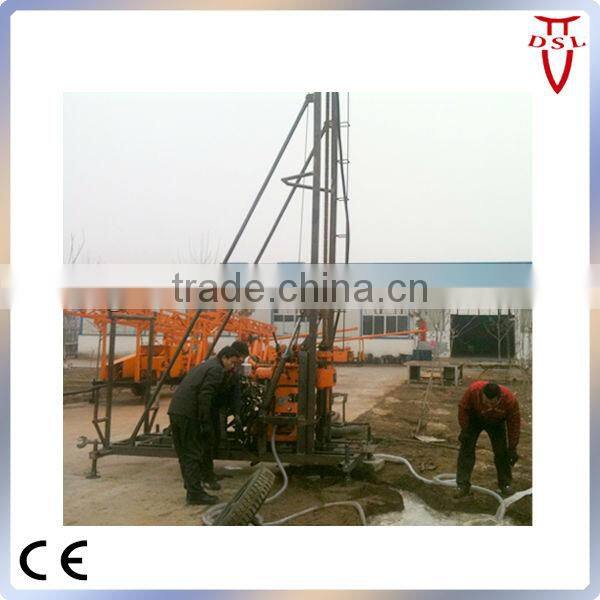

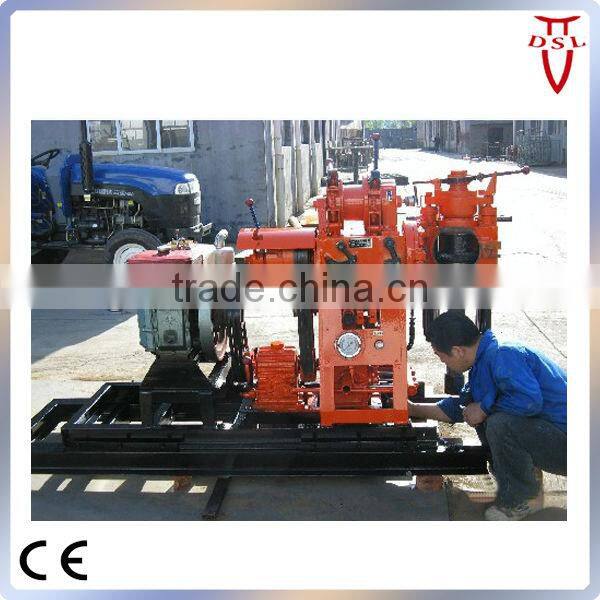

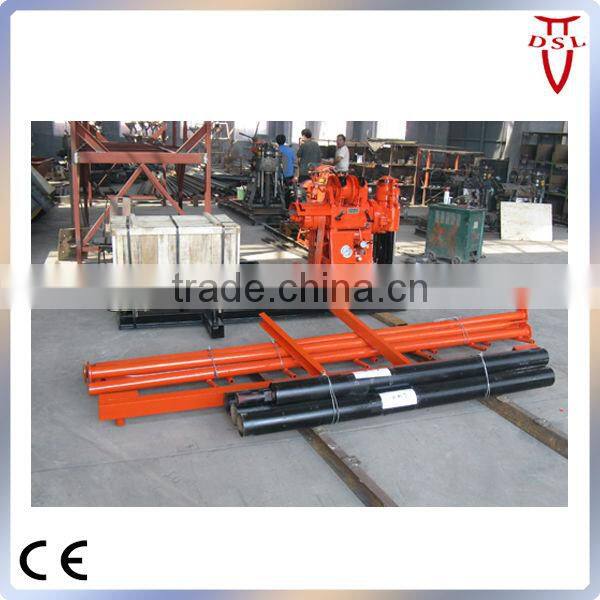

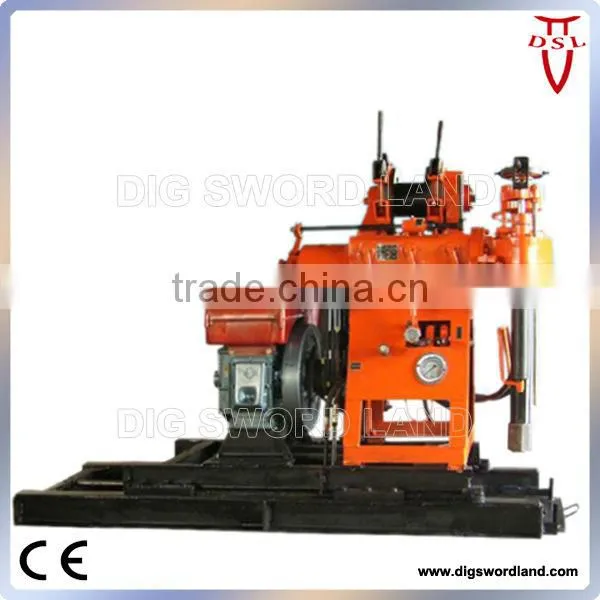

Some picture about the drilling rig









Mob: +86-15750862797

Skype:digswordland.mary



The specification of other drilling rig



Model	XY-100	XY-130	XY-180	XY-200
Drilling depth	100m	130m	180m	200m
Maximum open hole diameter	200mm	220mm	220mm	300mm
End hole caliber	75mm	75mm	75mm 46mm	75mm
Drill rod caliber	50mm	50mm	50mm 42mm	60mm
Drilling angle	90°~75°	90°~75°	90°~75°	90°~75°
Drill weight(No include power)	480 510kg	560kg	610kg	975kg
