Eletrict Motor Splitting Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
to break rock
Motor Type:
DC Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
fuzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Application
to break rock
Motor Type
DC Motor
Power(W)
2.2kw-7.5kw
Place of Origin
Fujian, China
Brand Name
DSL
Model Number
DS
Dimension(L*W*H)
1M*1M*1.3M
Certification
CE and ISO 9000
After-sales Service Provided
Overseas third-party support available
Specifications
1.It make of carbon steel , not easy to rust2. To splitter the rock
3 Durable,high efficient and low price
4.CE & ISO9000
eletrict motor splitting machine
Introduction
- One of the efficient, safest and easiest ways of mining, quarring, demolition & removing mass and reinforced concrete.
- Holes are drilled in the granite, marble, natural stone, rock & concrete structure and the splitter head, which contains a counter wedges & center wedge, is inserted. Hydraulic pressure is provided by a motor, powered by electricity, diesel or petrol.
- Air and gas tools is favoured in instances where vibration, dust and noise must be limited due to other surrounding working environments (offices, workshop, Hospitals etc), and is more effective than hand held pneumatic tools.
dvantage
1. Enormous splitting force up to 500 tons
2. Dust free and near silent operation
3. Vibration free and Easy handling,Light weight and Precision work
3. Vibration free and Easy handling,Light weight and Precision work
4. Always controllable ,For use in close quarters and hard to access places
Applications
1.All kinds of natural stones, rock, granite, marble mining & quarrying
2.Machine bases,Bridge columns,Reinforced concrete structures,Mass foundations ,Controlled demolition of pillars, concrete and walls where heavy equipment is impractical,Staircase removal,Premises that may be in continual use such as hospitals, factories, offices and hotels
3.removing redundant reinforced concrete structures, concrete machine beds and plinths, mass filled concrete etc.
4.Underwater demolition,Demolition in a restricted space,Tunnel work and Trench excavation
Specification
| Model |
Hole diameter (MM) |
Piston inside diameter (MM) |
Minimum drilling depth (MM) |
Wedge length (MM) |
Crack width (MM) |
Splitting time (S) |
Theory division force (T) |
Actual division force (T) |
Single weight (KG) |
|---|---|---|---|---|---|---|---|---|---|
| DS80A | Φ38~42 | 80 | ≥450 | 150 | 10~40 | 5~12 | 500 | 280 | 20 |
| DS80B | Φ40~42 | 80 | ≥500 | 200 | 10~40 | 5~12 | 600 | 300 | 21 |
| DS80C | Φ40~42 | 80 | ≥600 | 300 | 10~40 | 5~12 | 680 | 420 | 25 |
| DS80D | Φ45~48 | 80 | ≥800 | 450 | 10~40 | 5~12 | 720 | 450 | 27 |
| DS90A | Φ38~42 | 90 | ≥450 | 150 | 10~40 | 5~12 | 680 | 420 | 26 |
| DS90B | Φ40~42 | 90 | ≥500 | 200 | 10~40 | 5~12 | 720 | 450 | 26.5 |
| DS90D | Φ40~42 | 90 | ≥600 | 300 | 10~40 | 5~12 | 780 | 480 | 27 |
| DS90E | Φ45~48 | 90 | ≥700 | 380 | 10~40 | 5~12 | 820 | 500 | 28 |
| Engine | Size (mm) |
Weight (kg) |
Oil Capacity (L) |
Working medium | Power | Working pressure (MPa) |
Flow (L/m) |
Splitter qty (Pc) |
| Diesel engine | 1150*1180*940 | 120 | 40 | 46 or 68 anti-wear hydraulic oil | 4.2KW | 55-60 | 2--13 | 1--10 |
| Gasoline engine | 1200*1170*800 | 100 | 40 | 46 or 68 anti-wear hydraulic oil | 7.5Hp | 55-60 | 2--13 | 1--10 |
| Pneumatic engine | 364*280*620 | 100 | 40 | 46 or 68 anti-wear hydraulic oil | 4.04KW/5.5HP 0.63Mpa 4.8m³/Min |
55-60 | 13 | 1~10 |
| Electric engine | 380*240*410 | 23 | 5 | 46 or 68 anti-wear hydraulic oil | 0.75KW (220V/380V) |
55-60 | 0.7 | 1 |
| 380*240*410 | 60 | 25 | 46 or 68 anti-wear hydraulic oil | 2.2KW(380V) | 55-60 | 2--13 | 1~3 | |
| 384*280*620 | 75 | 30 | 46 or 68 anti-wear hydraulic oil | 4KW(380V) | 55~60 | 2--13 | 1~6 | |
| 450*410*700 | 100 | 40 | 46 or 68 anti-wear hydraulic oil | 7.5KW(380V) | 55-60 | 13 | 1--10 |

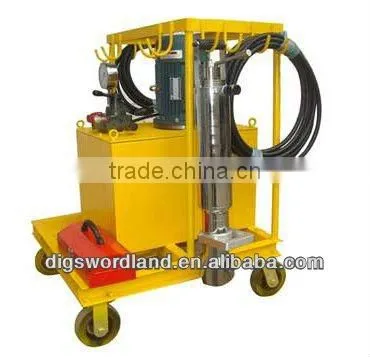

The pictures for hydraulic stone splitter
About our factory
Fuzhou Dig Sword Land Machine Co.,Ltd is the Sino-foreign joint venture which mainly business DSL brand from Digswordland Technology Limited. The enterprise is an industrial supplier which specialized in design, manufacture and sales in worldwide and has owned ten product patent right for RB777, B77C, RB777C, and TCA-7 and so on. My company provided air compressed, construction and mining equipment, also related after-sale services. Now our business has throughout 158 countries and area with good reputation.
