Home > Products > Construction and Mining machine > High Drilling Efficiency SM-130Y Core Drilling Rig

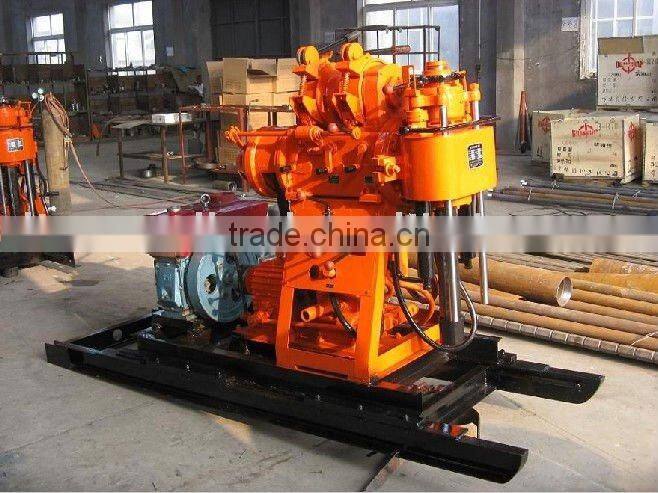

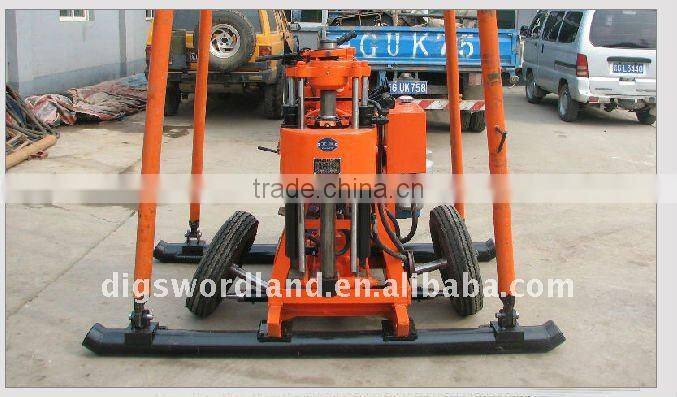

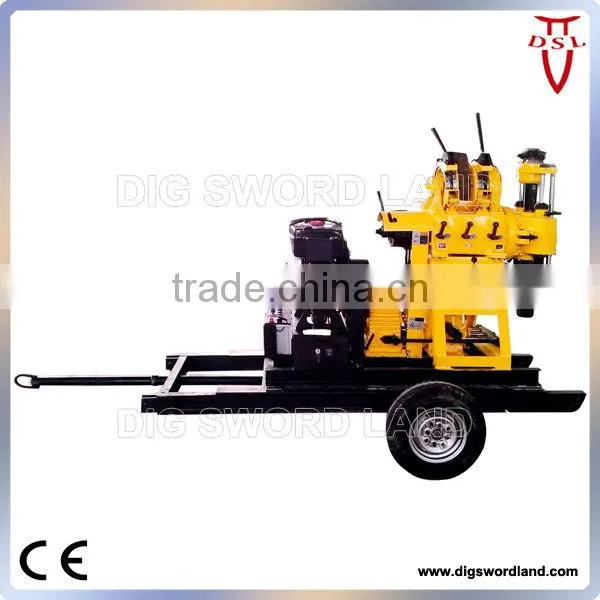

High Drilling Efficiency SM-130Y Core Drilling Rig
- 5000 Set / Sets per Month
- Fuzhou China
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Core Drilling Rig | |
| Place of Origin | Fujian, China | Brand Name | DSL | |
| Model Number | Maquina de perforacion de nucleo | Usage | Water Well | |
| Weight | >480kg | Certification | ISO9001&CE |
Product Description
Specifications
Construction and Mining hilti diamond core drill machines1)powerful to use
2)high efficiency
3)easy and safety
4)ISO-90
Core drilling rig Máquina de perforación de núcleo
Alcance de uso
Se utiliza para investigación general , exploración geofísica , la construcción de carretera y edificio , peforación de barreno , etc .
Con el dispositivo de alimentación por hidro-automático , tiene alta eficacia de perforación .
Diseño con la unidad de hidráulica de sujeción en lugar de cuando se cambia la tuberías , se desliza para garantizar la parada de porforanción .
Cerrar palancas , operar convenente , operación segura y confiable .
Estructura compacta . Todo el taladro , la bomba de agua y el motor diesel instalado en un bastidor de base resultado en ahorro de espacio .
De peso ligero , fácil de desmontar del transporte , aplica al trabajo en las condiciones de llanura y montaña .
Especificación
Profundidad de la perforación | 100m | 130m | 180m | 200m |
Diámetro máxima de agujero abierto | 200mm | 220mm | 220mm | 220mm |
Calibre de agujero | 75mm | 75mm | 75mm 46mm | 75m |
Calibre de vástago | 50mm | 50mm | 50mm 42mm | 60 |
Ángulo de perforación | 90°~75° | 90°~75° | 90°~75° | 90°~75° |
Peso de taladre(no incluyen la energía) | 480 510kg | 560kg | 610kg | 975kg |
