Portable Type Water Well/core Drilling Machine SM-200Y

Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Core Drilling Rig

Power Type:

Electric

Fuzhou Dig Sword Land Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any Port Of CHINA

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Core Drilling Rig

Power Type Electric

Place of Origin Fujian, China

Brand Name DSL

Model Number SM-100Y

Usage Water Well

Voltage 550V

Power(W) 750W

Dimension(L*W*H) othrs

Weight >480kg

Certification CE and ISO9000

Warranty half month

Specifications

Core drilling rig
1.Made of carbon steel ,not easy to rust
2.Pack in wooden case ,well protect
3.To drill
4.CE and ISO

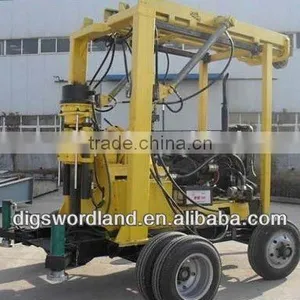

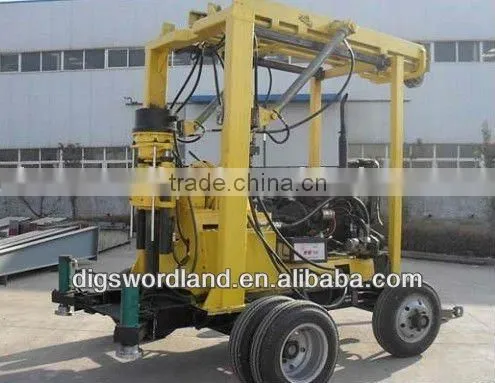

Portable type water well/core drilling machine SM-200Y

Application scope

Used for general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc.
With hydro-automatic feeding device, and high drilling efficiency.
Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes.
Close levers, convenient to operate, safe and reliable operations.
Compact in structure. All the drill, water pump and diesel engine installed on one base frame result in space-saving.
Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas.

Drilling depth	100m	130m	180m	200m
Maximum open hole diameter	200mm	220mm	220mm	300mm
End hole caliber	75mm	75mm	75mm 46mm	75mm
Drill rod caliber	50mm	50mm	50mm 42mm	60mm
Drilling angle	90°~75°	90°~75°	90°~75°	90°~75°
Drill weight(No include power)	480 510kg	560kg	610kg	975kg
