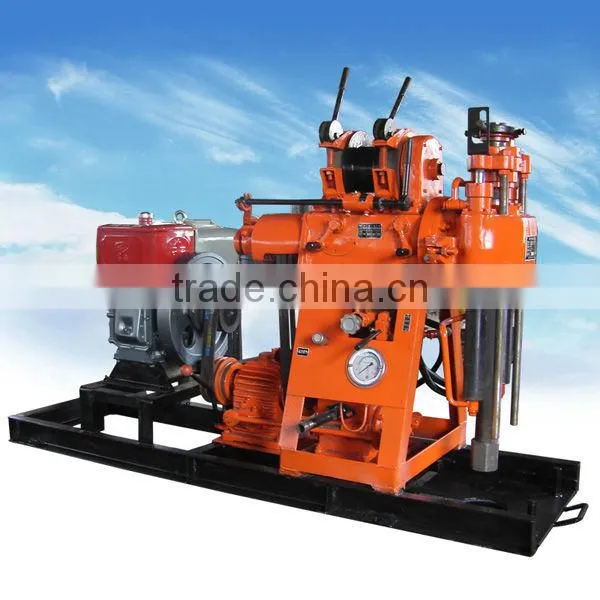

Construction and Mining Core Drilling Rig SM-100Y(XY-100)

US$ 1 - 3 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Core Drilling Rig

Place of Origin:

Fujian, China

Fuzhou Dig Sword Land Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Core Drilling Rig

Place of Origin Fujian, China

Brand Name DSL

Model Number Maquina de perforacion de nucleo

Weight 480-975KG, 480510kg

Certification ISO9001&CE

Specifications

Construction and Mining core drilling rig SM-100Y(XY-100)
1)powerful to use
2)high efficiency
3)easy and safety
4)ISO-90

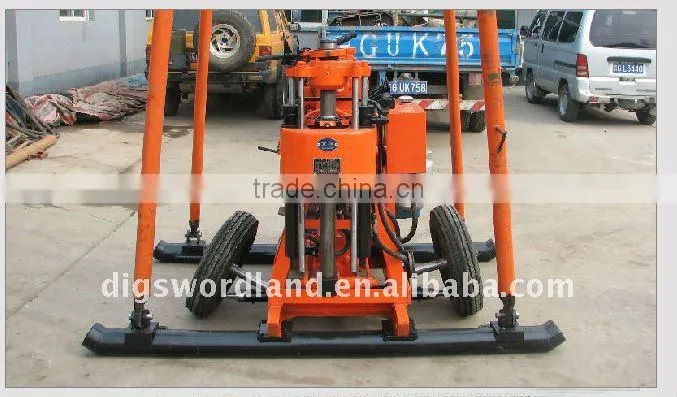

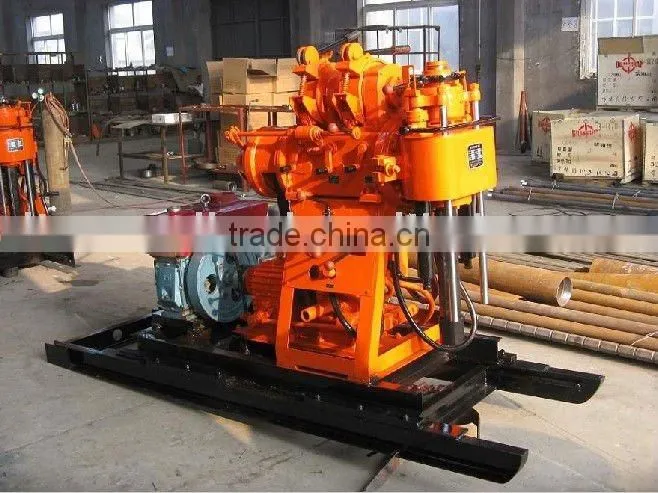

Construction and Mining core drilling rig SM-100Y(XY-100)

Our company supply water well drill rig (core drill rig) drill from 100 meters -200 meters

Application scope

Used for general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc.
With hydro-automatic feeding device, and high drilling efficiency.
Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes.
Close levers, convenient to operate, safe and reliable operations.
Compact in structure. All the drill, water pump and diesel engine installed on one base frame result in space-saving.
Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas.

Main specification

Drill depth (m)	100
Maximum open hole caliber (mm)	219
End hole caliber (mm)	73
Hydraulic pump pressure (Mpa)	1.2
Hydraulic pump rotating speed (r/min)	1500
Spindle speed (r/min)	142,285,570
Spindle stroke(mm)	450
Lifting capacity (KN)	9.8
Steel wire diameter(mm)	9.3
Maximum pressure (MPa)	1.2
Working pressure (MPa)	0.7
Capacity (L/min)	100
Power	S1100 (10kw)
