Home > Manufacturing & Processing Machinery > Drilling Rig > Mine Drilling Rig > Air Dill Tool (YT27)
Negotiable
MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New, new
Type:
Other, Rock drill
Power Type:
Other, Pneumatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Air Leg Jack Hammer YT28 Punematic Rock DrillUS$ 1 - 1,000MOQ: 10 Sets -
Dilling Machine (YT27)NegotiableMOQ: 20 Pieces
-
Factory Directly Sell Y10 Second Time Rock DrillNegotiableMOQ: 5 Pieces
-
Pusher Leg Jack Hammer for Blasting YT27NegotiableMOQ: 10 Pieces
-
Air Leg/pusher Leg Jack Hammer YT27NegotiableMOQ: 10 Pieces
Type
Other, Rock drill
Power Type
Other, Pneumatic
Place of Origin
Fujian, China
Brand Name
DSL
Model Number
YT27 air leg rock drill
Usage
Ore
Weight
27kg
Specifications
Air dill tool (YT27)CE & ISO
1)advanced equipment
2)excellent quality
3)good price

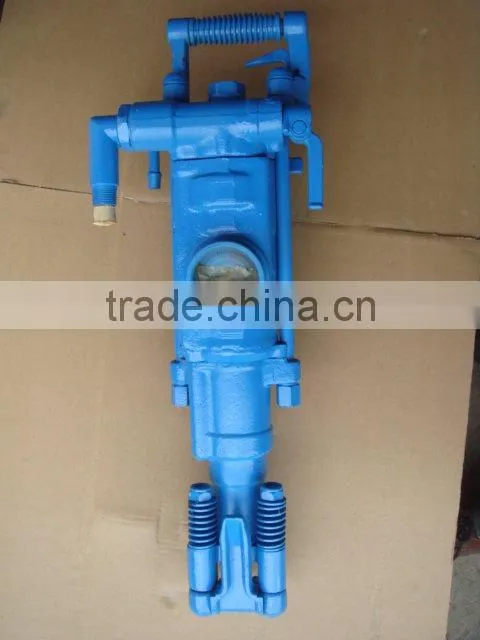

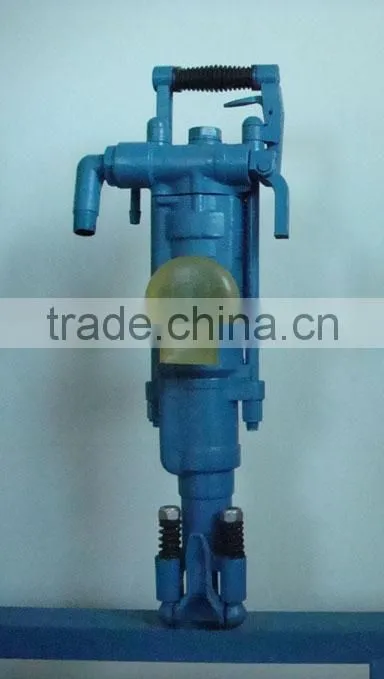

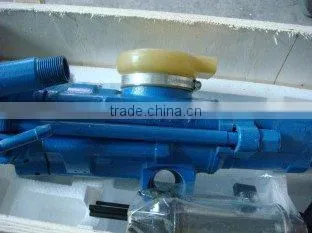

Air dill tool (YT27)
Instruction
The Air-leg Rock Drill is a kind of high efficiency air leg rock drill machine.It is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and national defence project facility.
When it is matched with Model FY250 Oil reservoir and Model FT160A or FT160B Air-leg , it is suitable for wet drilling under various of rocks at aclinic and incline orientation,it can also use in the trolley without Air-leg.
Specification
| Weight | 27 kg | |
| Outside dimension(L×W×H) | 668×248×202mm | |
| Cylinder dia | 80mm | |
| Piston stroke | 60mm | |
| Impact energy | ≥75.5J | |
| Impact frequencey | ≥ 36.9Hz | |
| Air consumption | ≤83.3L/S | |
| Air pipe (inner dia) | 25mm | |
| Water pipe (inner dia) | 13mm | |
| Air pressure | 0.63MPa | |
| Water pressure | 0.3MPa | |
| Bore dia | 34-45mm | |
| Bore depth | 5m | |
| Shank dimensions(hex×length) | 22×108±1mm/ 25×108±1mm | |
| Model FY250B oil lubricator | ||
| Weight | 1.2kg | |
| Oil capacity | 0.25L | |
| Air leg | FT160A | FT160B |
| Weight | 17kg | 16 kg |
| Llength:max | 3006mm | 2526mm |
| min | 1668mm | 1428mm |
| Propulsion stroke | 1338mm | 1098 mm |
| Axis thrust (max) | 2000N | 2000N |
