MIG Welding Machine MIG Series Welder(MIG150)
Features of MIG Welding Machine:
1.Single-phase, portable, fan-cooled wire welding machine for flux(no gas) and MIG/MAG(gas) welding machine.
2.With thermal protection, complete with MIG Welding accessories.
3.The kit for welding different types of materials such as steel, stainless.
3.Steel and aluminum is available on request.

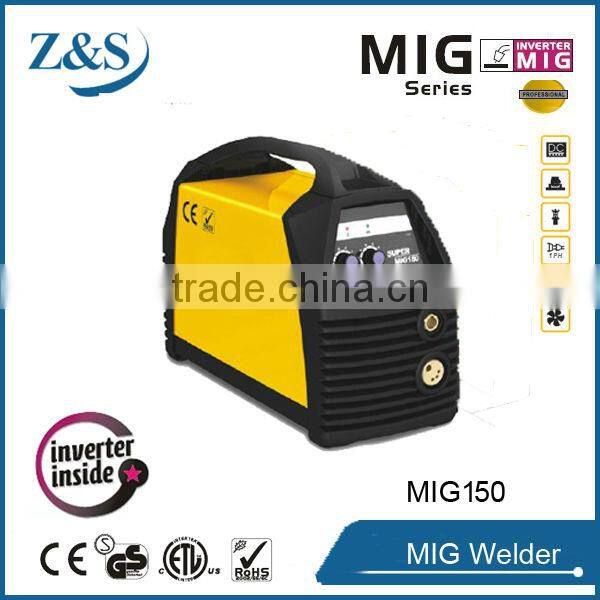

Picture of MIG Welding Machine MIG Series Welder(MIG150) :
Specification of MIG Welding Machine:
| Item | MIG-105 | MIG-135 | MIG-150 | MIG-175 | MIG-195 |
| Power voltage(V) | 230 | 230 | 230 | 230 | 230 |
| Frequency(HZ) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Max absorbed power(KVA) | 2.5 | 3.6 | 3.7 | 5.2 | 6 |
| Absorbed Power 60%(KVA) | 1.1 | 1.3 | 1.4 | 2.3 | 2.5 |
| Mains fuse(A) | 10 | 13 | 16 | 16 | 16 |
| Power factor | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
| Max no-load voltage in AC(V) | 32 | 33 | 34.2 | 35.8 | 37 |
| Current range output(A) | 50-100 | 50-120 | 60-140 | 60-160 | 60-180 |
| Max current output | 80@10% | 105@15% | 115@15% | 140@15% | 140@20% |
| Adjustment positions | 4 | 4 | 4 | 4 | 4 |
| Core welding wire diameter | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Steel welding wire dia | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Aluminum welding wire diam | 0.8 | 0.8 | 1.0 | 1.0 | 1.2 |
| Insulation class | H | H | H | H | H |
| Measurement(MM) | 535x265x410 | 535x265x410 | 535x265x410 | 535x265x410 | 535x265x410 |
| Weight(KG) | 30 | 32 | 35 | 37 | 38 |
| Usable electrode(MM) | 0.1~0.8 | 0.6~0.8 | 0.6~1.0 | 0.6~1.0 | 0.6~1.0 |
| Cod.(NO) | 893001 | 893002 | 893003 | 893004 | 893005 |
Special Service of MIG Welding Machine:
OEM sevice offered, Free spare parts, Technical help to exporters, Design Service Offered, Buyer Label Offered .
Main Market for MIG Welding Machine:
Europe, South America , Southeast Asia, Mid East ,North America.
ACCESSORIES:
With welding torch,earth clamp,mask,brush.
CERTIFICATE:
CE,ROHS,GS,ISO9001
Application of MIG Welding Machine:
Factory show and packing for MIG Welding Machine:
Others:
If you have any question of above, please feel free to contact us, and if you want any more information about our company or other products, please visit our website http://zsproway.en.china.cn or .
