Specifications
Wind generator-Noisy level < 60db
-PMG 3 phs AC 200rpm
-Pure sine wave inverter
- CE approved

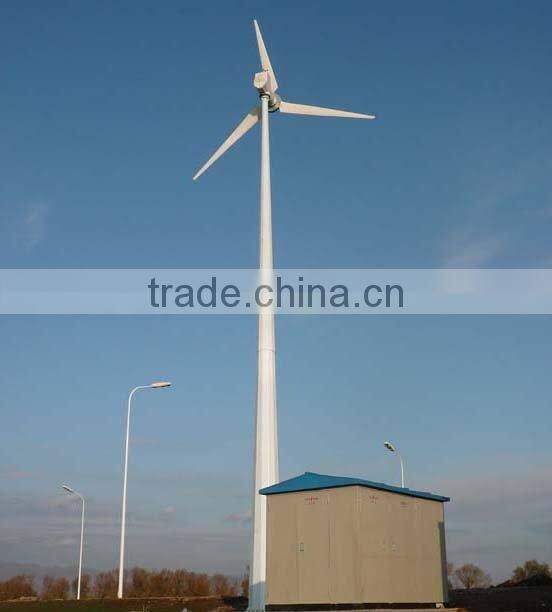

Wind Generator
Model:TECH10kw
Model | TECH10kw |
Rotor Diameter (m) | 8.0 |
Material of blades and No. | RFP/ 3 |
Speed regulation method | Microcomputer intelligence controller |
Rotation per minute for generator (rpm) | 200 |
Material for generator cover | Stainless steel |
Working wind speed (m/s) | 3-20 |
Cut-in wind speed (m/s) | 3 |
Rated wind speed (m/s) | 10 |
Survival wind speed (m/s) | 40 |
Rated output power at rated wind speed (kw) | 10kw |
Maximum output power (kw) | 15kw |
Rated output voltage (V) | DC 380V |
Generator type | PMG 3 phases AC |
Weight – head (kg) | 600kg |
Pack zie | 3.5 m3 |
Suggestion battery | 12v 200ah 30 pcs |
Warranty | One year for all parts |
- Techwellpower is one of the leading supplier of smaller and residential vertical and horizontal axis wind turbine from China with 10 years experience.
- Our wind turbines have been installed in more than 60 countries with more than 50 stable international customers. Techwellpower is capable to put the wind work for you.
- Our VAWT ranges from 500w - 5000w, in name of the model of TECH 300w -5kw, TECHMLV3kw/5kw, TECHVH2kw, both on-grid and off-grid system available.
- At techwellpower, we take pride in offering advanced technology products that let homewoners and business generate their own clan power.
- Techwellpower VAWT wind turbines are designed for harsh climate, they are built simply and ruggedly to quietly last.Our machines have a large wind swept area to capture more wind and produce more energy, especially in low wind speeds. These machines produce energy in the wind you get, day in and day out, power when you need it, not just in storms.
