wind generator1.Noisy level < 50db
2.Variable Pitch
3.PMG AC 3 phases, 120 rpm
4.Off-grid and on-grid,CE
Wind generator

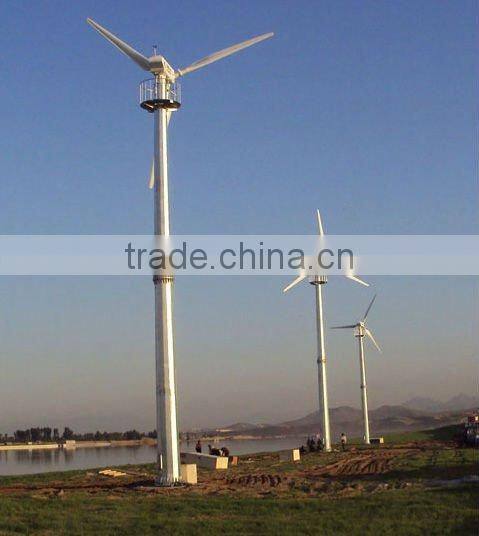

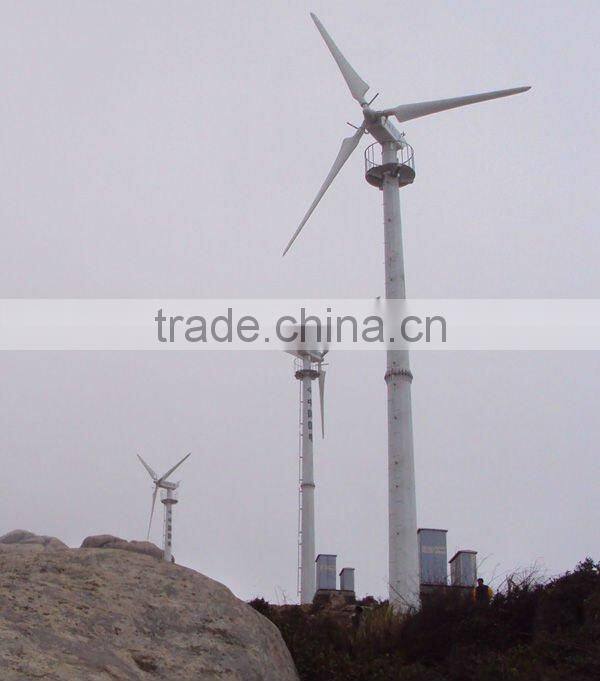

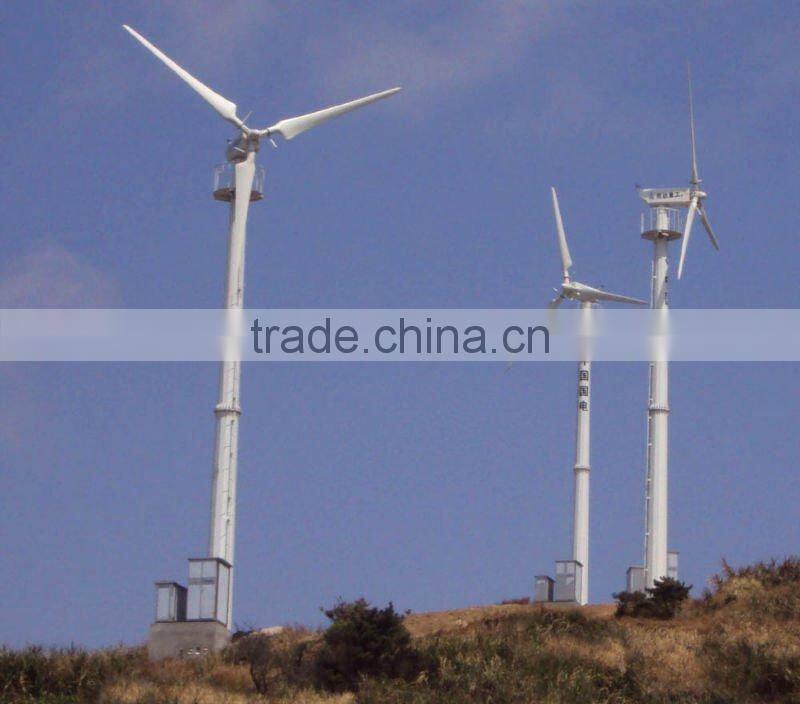

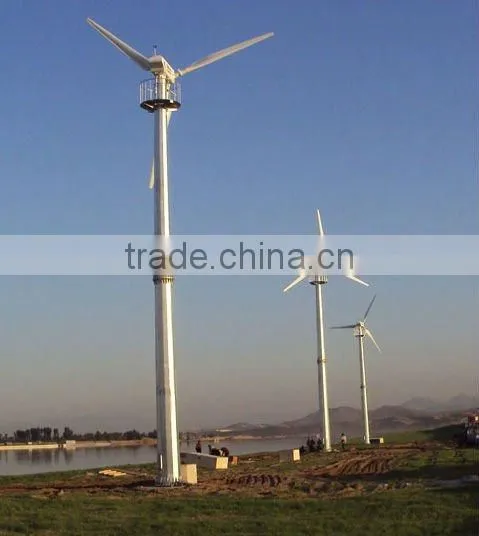

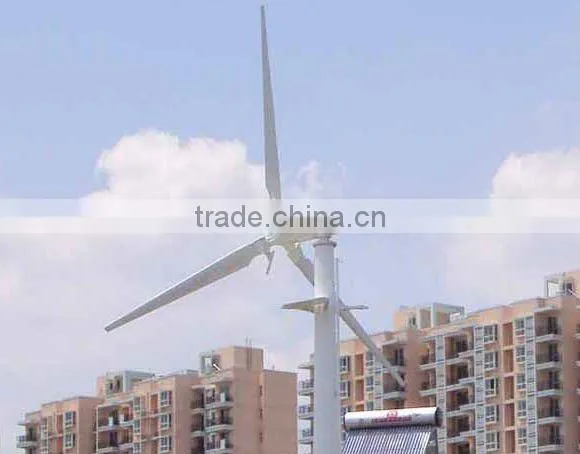

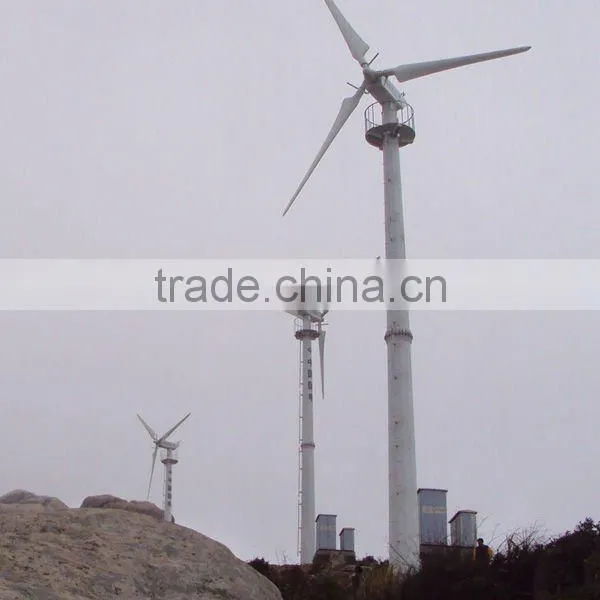

30KW Pitch Controlled Wind Turbine
Power | 50000W |
Type of generator | PMG -3phase A.C. |
Blade diameter | 18.0m |
Blade Material: | FRP (Fiber glass reinforced*3) |
Rated rotor speed | 60r/min |
Rated speed | 10m/s |
Rated Power | 50000W |
Max Power | 55000w |
Range of voltage output | DC420V-DC620V(or)AC300V-AC440V) |
Rated current output | 30A |
Protection degree | IP44 |
Rated voltage output | DC540V (or AC380V) |
Start up wind speed | 3.5(m/s) |
Work speed | 3.5-25(m/s) |
Security wind speed | 40(m/s) |
Rate-limiting mode | Hydraulic brakes, PLC control |
Dogvane | Measurement of wind turbine angle agaist wind |
Anemoscope | Testing real-time wind speed and then transfer the signal to controller |
height of Free sdand tower | 18m (hot galvanized and plastic spraying) |
top quality except tower | 2050kg |
Total weight(kg)(with18m) Free sdand tower | 11050kg |
- Techwellpower is one of the leading supplier of smaller and residential vertical and horizontal axis wind turbine from China with 10 years experience.
- Our wind turbines have been installed in more than 60 countries with more than 50 stable international customers. Techwellpower is capable to put the wind work for you.
- Our VAWT ranges from 500w - 5000w, in name of the model of TECH 300w -5kw, TECHMLV3kw/5kw, TECHVH2kw, both on-grid and off-grid system available.
- At techwellpower, we take pride in offering advanced technology products that let homewoners and business generate their own clan power.
- Techwellpower VAWT wind turbines are designed for harsh climate, they are built simply and ruggedly to quietly last.Our machines have a large wind swept area to capture more wind and produce more energy, especially in low wind speeds. These machines produce energy in the wind you get, day in and day out, power when you need it, not just in storms.
