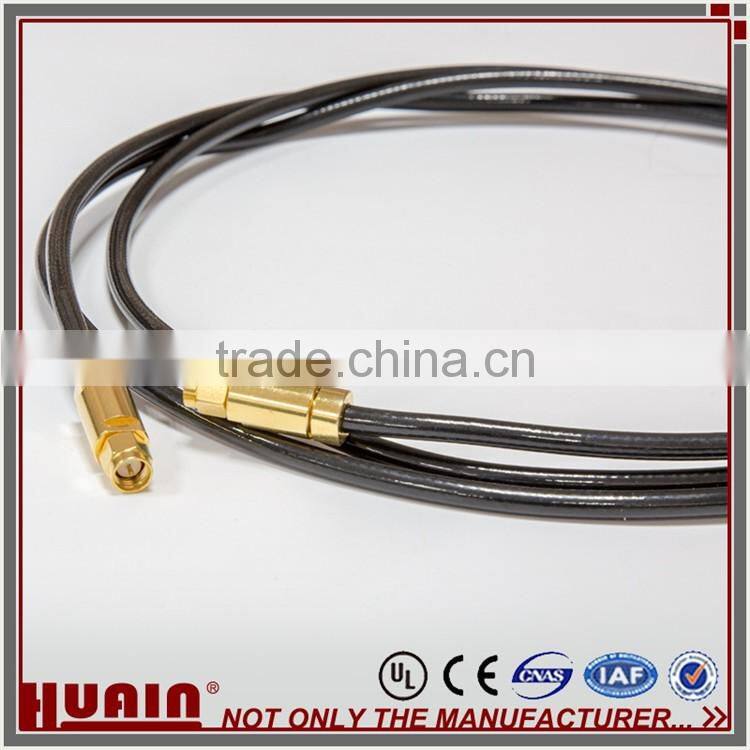

HFWP series Radio Frequency Coaxial Cable adopt the special structure design and advanced production technology, make cable in the whole frequency range has excellent electrical and mechanical performance index.
Electrical performance:The Velocity of Propagation can up to 83%; Temperature Phase Stable is less than 750PPM. Also has low dissipation, shielding efficiency higher characteristic.

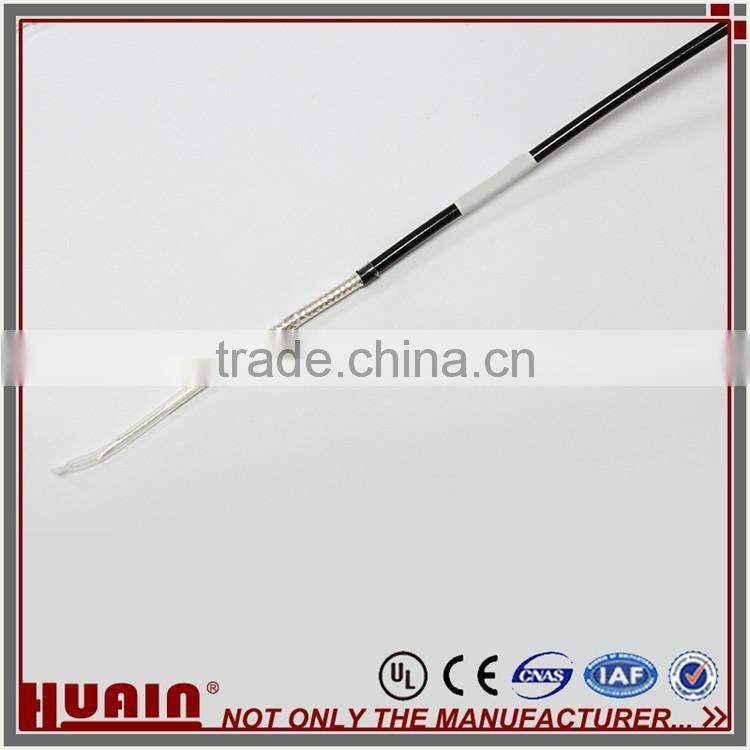

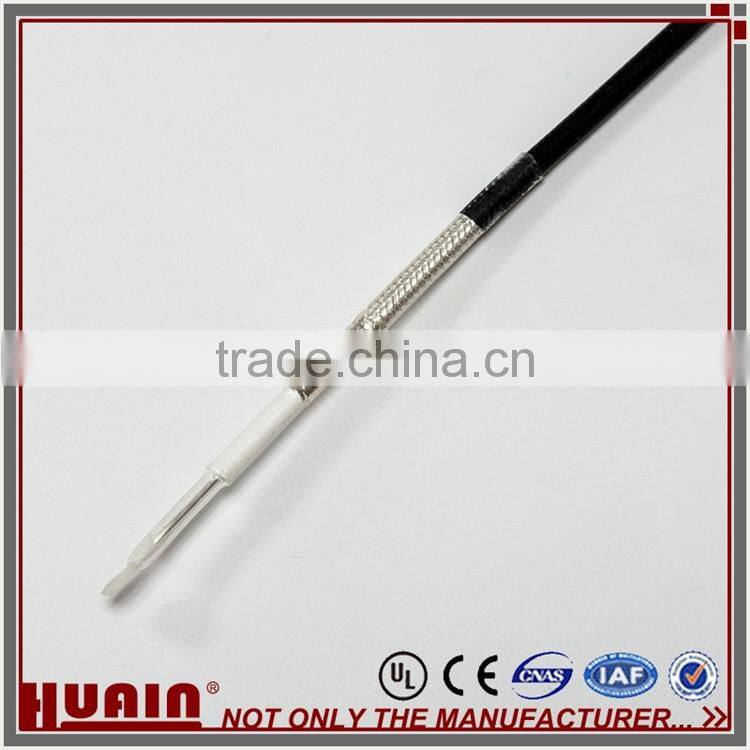

Mechanical properties:low density insulation and copper strip wrapped, making the cable have better flexibility and long mechanical phase stability, but in cable use process should pay attention to prevent excessive distortion and damaged cable outer conductor structure, thus affecting the product performance.
Environmental performance: this cable using resistance to environmental performance excellent raw material, make it’s have use temperature scope wide, corrosion resistance, mould proof moisture proof, flame retardant characteristics.

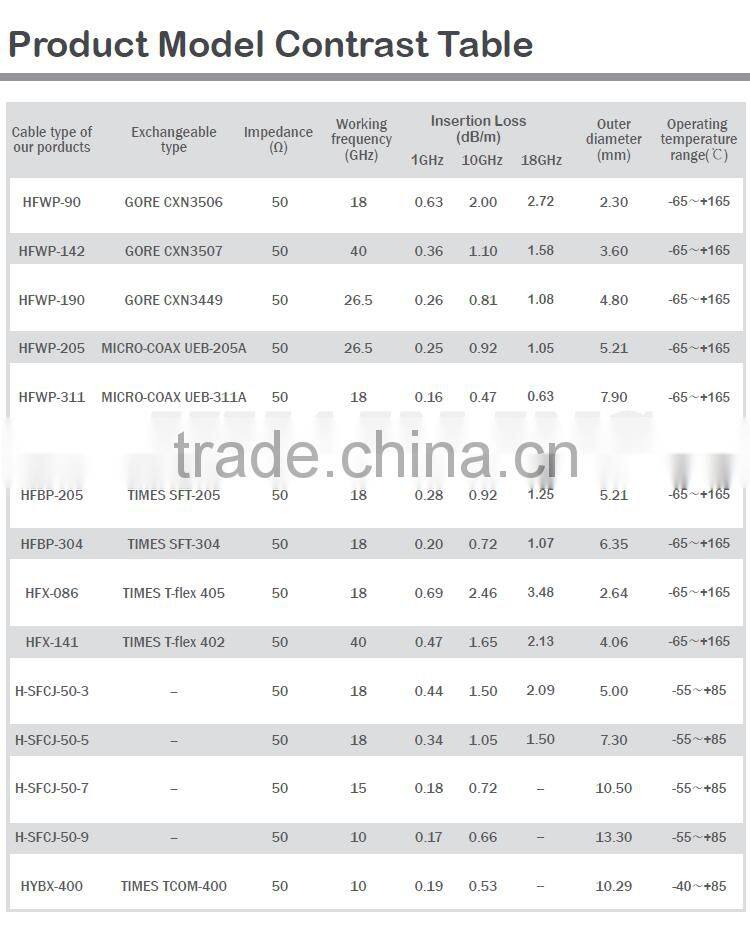

| Pharameter | Type | HFWP-142 | |
| Mechanical Characteristics | Center Conductor Diameter | 0.93mm | |
| Center Conductor Type | Solid | ||
| Insulation Diameter | 2.50mm | ||
| Shields Diameter | 3.10mm | ||
| Jacket Diameter | ≤3.60mm | ||
| Min.bending radius | 18mm | ||
| Electrical Characteristics | Impedance | 50ohms | |
| Capacitance | 80. 4pf/m | ||
| Frenquency Range | DC-40GHZ | ||
| Velocity of Propagation | 83% | ||
| Max.Operating Voltage | 1.2kv | ||
| Shielding Effectiveness | ≥100db@1GHZ | ||
| Insertion loss | 0.5GHZ | 0.26db/m | |
| 1GHZ | 0.36db/m | ||
| 3GHZ | 0.61db/m | ||
| 4GHZ | 0.70db/m | ||
| 6GHZ | 0.86db/m | ||
| 8GHZ | 0.99db/m | ||
| 10GHZ | 1.10db/m | ||
| 12GHZ | 1.24db/m | ||
| 15GHZ | 1.36db/m | ||
| 18GHZ | 1.58db/m | ||
| 26.5GHZ | 2.09db/m | ||
| 35GHZ | 2.43db/m | ||
| 40GHZ | 2.64db/m | ||
| Phase stability vs Flexure | 4GHZ | ±0.9°/GHZ | |
| 18GHZ | ±3.6°/GHZ | ||
|
-55°C~+85°C Phase Phase Change vs Tmeperature |
≤750ppm | ||
| Environmental Characteristics | Temperature Range | -65°C-+165°C | |
