Stainless Steel One Arm Glass Spider Systems/ Glass Curtain Wall Spider Fittings

Specifications

Stainless Steel Glass Spider Connector
Material:Stainless steel
Finish:Satin/mirror
Size:thickness of glass with 6-8/8-12mm

Stainless Steel One Arm Glass Spider Systems/ Glass Curtain Wall Spider Fittings

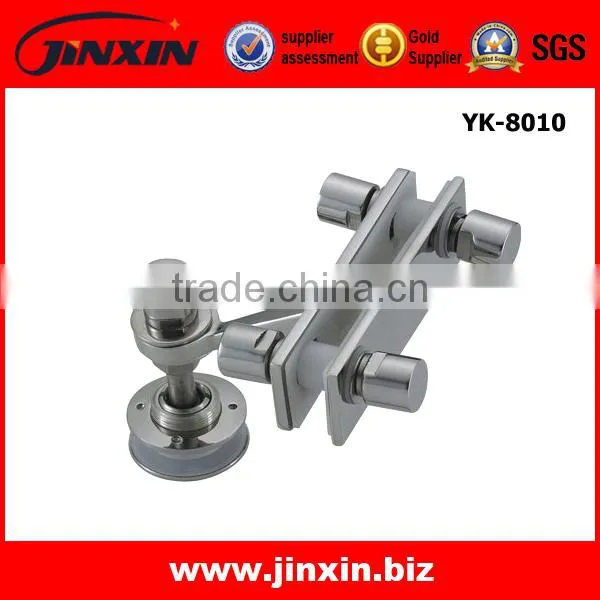

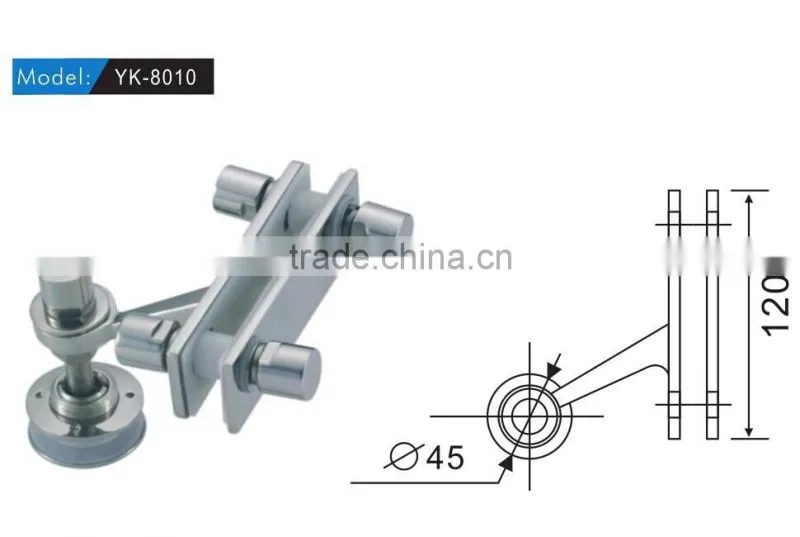

1.Item No: YK-8010

2.Meterial:Made by stainless steel AISI304 and 316 or other special material.

3.Surface treament:Finish can be satin stainless steel(SSS) and polish stainlesssteel(PSS) .

4.Size:250mm/220mm/200mm/160mm/150mm

5.Hole size: ø57mm/50mm/48mm/30mm for center

6.Elliptical hole: 24*12mm.

7.Application:Suitable for 10, 12 and double glazed insulated glass. Insulated glass can

achieve better weather sealed surround then the conventional single glass panel system.

8.Delivery Time:15~45 days after receipt of advance payment.

9.Payment Term:30%~50% in advance as deposit.

Other balance is paid before delivery and shipment.

10.Accessories such as screw and nut are available; all handrail fittings are solid.

11.We can change the design as client’s requirements.

12.We can do OEM&ODM.

Details

Refer Pictures

Customized Process:
1st Step: Customer has showed his special requirements.
2st Step: We try to understand the conception and pattern from customer with simple draft or refer picture.
3st Step: Making the conceptive CAD drawing based on communication and understanding.
4st Step: Making the detail and 3D drawing after fixed the design and other details.
5st Step: Offer the quotation after confirm the design,material and surface treatment.
6st Step: Made the sample for approval.
7st Step: Test installation after demo mock up.

Refer Pictures

Production Process:
1. Material 2.Cutting 3.Drilling 4.Milling 5.Welding 6.Polishing 7.Checking 8.Fixing 9.Packing 10.Loading
