Specifications
Stainless Steel Glass Spider Connector
Material:Stainless steel
Finish:Satin/mirror
Size:thickness of glass with 6-8/8-12mm
Stainless Steel glass curtain wall spider system for construction

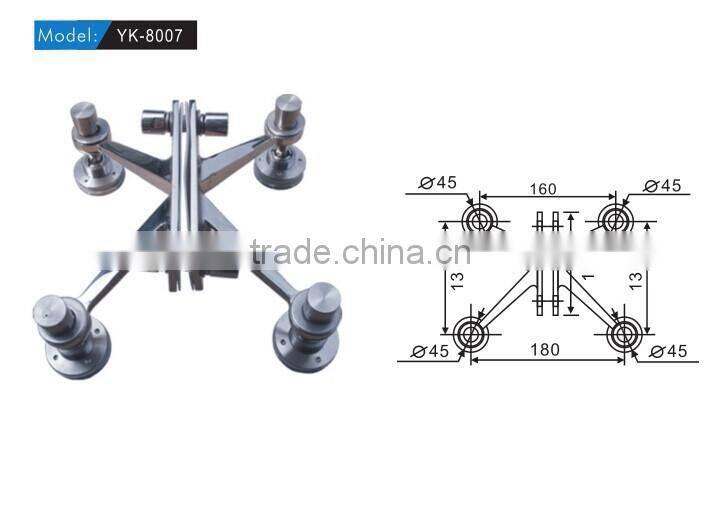

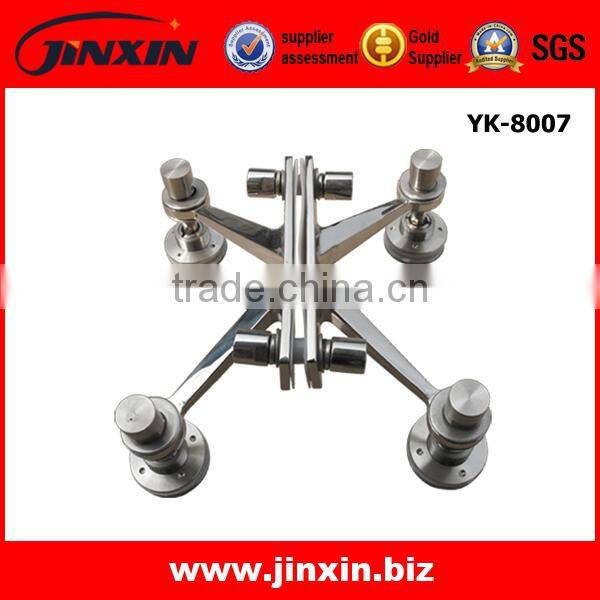

1.Item No: YK-8007
2.Meterial:Made by stainless steel AISI304 and 316 or other special material.
3.Surface treament:Finish can be satin stainless steel(SSS) and polish stainlesssteel(PSS) .
4.Size:250mm/220mm/200mm/160mm/150mm
5.Hole size: ø57mm/50mm/48mm/30mm for center
6.Elliptical hole: 24*12mm.
7.Application:Suitable for 10, 12 and double glazed insulated glass. Insulated glass can
achieve better weather sealed surround then the conventional single glass panel system.
8.Delivery Time:15~45 days after receipt of advance payment.
9.Payment Term:30%~50% in advance as deposit.
Other balance is paid before delivery and shipment.
10.Accessories such as screw and nut are available; all handrail fittings are solid.
11.We can change the design as client’s requirements.
12.We can do OEM&ODM.
Details

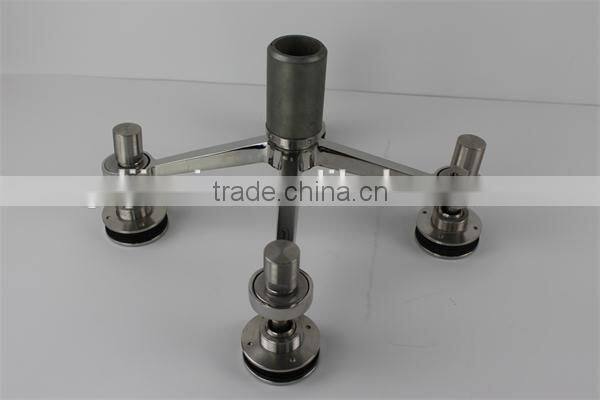

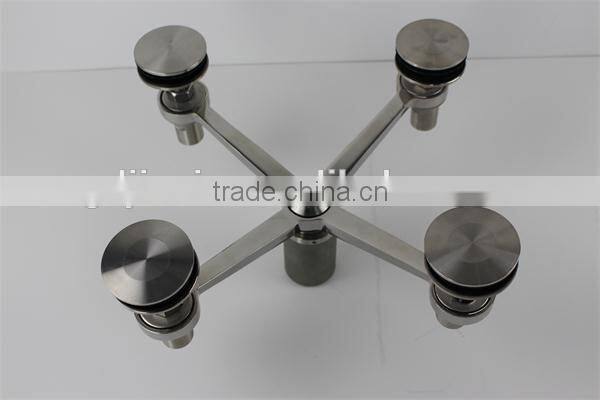

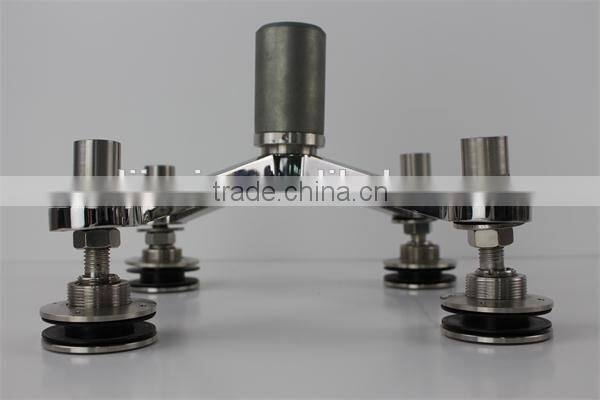

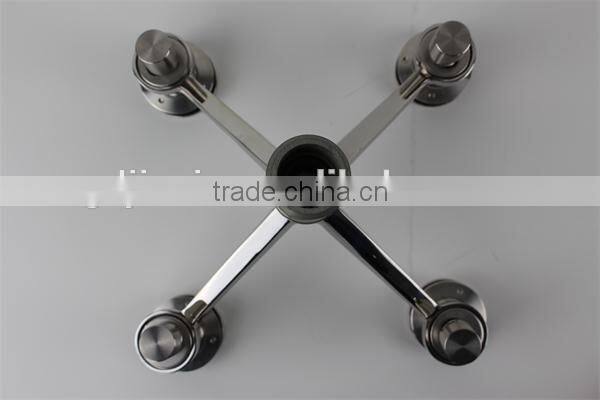

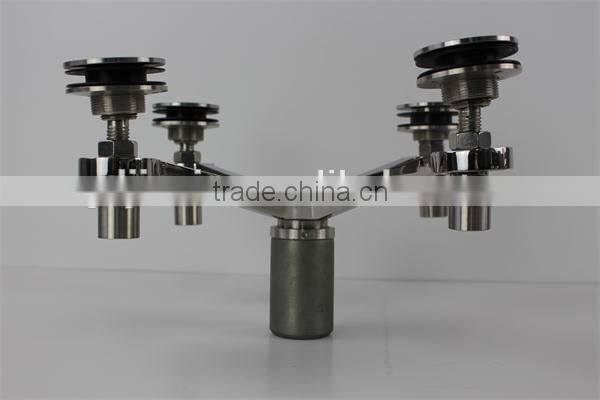

Refers Pictures
Customized Process:
1st Step: Customer has showed his special requirements.
2st Step: We try to understand the conception and pattern from customer with simple draft or refer picture.
3st Step: Making the conceptive CAD drawing based on communication and understanding.
4st Step: Making the detail and 3D drawing after fixed the design and other details.
5st Step: Offer the quotation after confirm the design,material and surface treatment.
6st Step: Made the sample for approval.
7st Step: Test installation after demo mock up.
Refer Pictures
Production Process:
1. Material 2.Cutting 3.Drilling 4.Milling 5.Welding 6.Polishing 7.Checking 8.Fixing 9.Packing 10.Loading
