Stainless Steel K-shape 2-leg Glass Spider Systems/ Glass Spider Fittings

1)Each type of product is packed in separate inner boxes.
2)Each outer box will be properly closed and packed to eliminate damages and theft during transportation.
3)Each outer box weight is not over 20kgs.

Specifications

Stainless Steel Glass Spider Connector
Material:Stainless steel
Finish:Satin/mirror
Size:thickness of glass with 6-8/8-12mm

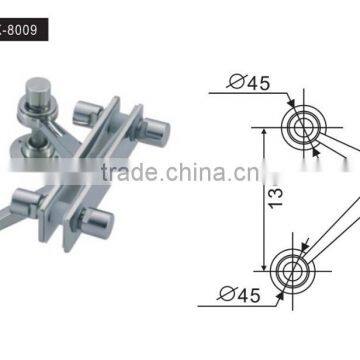

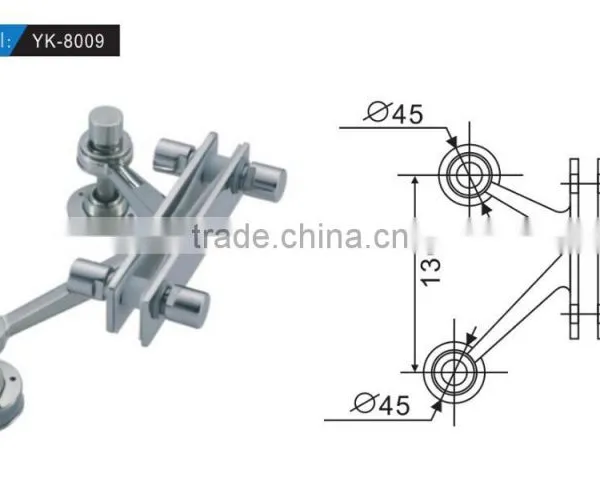

Stainless Steel K-shape 2-leg Glass Spider Systems/ Glass Spider Fittings

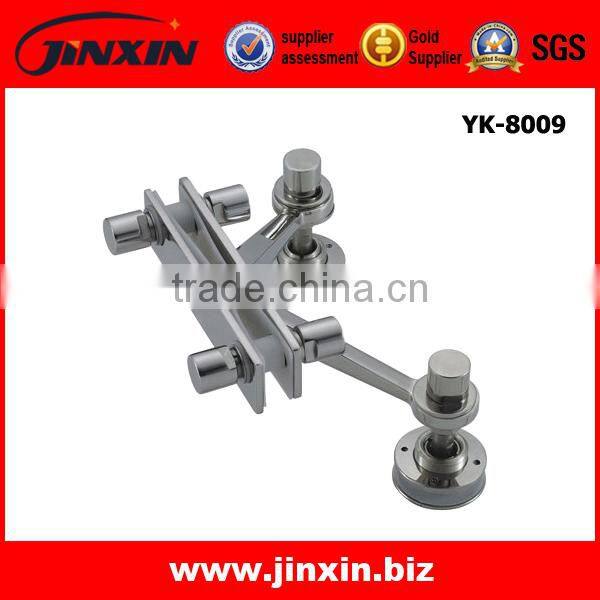

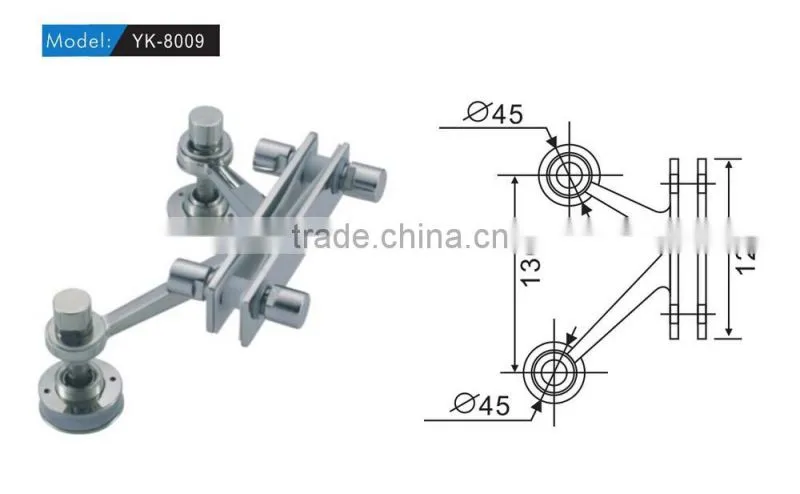

1.Item No: YK-8009

2.Meterial:Made by stainless steel AISI304 and 316 or other special material.

3.Surface treament:Finish can be satin stainless steel(SSS) and polish stainlesssteel(PSS) .

4.Size:250mm/220mm/200mm/160mm/150mm

5.Hole size: ø57mm/50mm/48mm/30mm for center

6.Elliptical hole: 24*12mm.

7.Application:Suitable for 10, 12 and double glazed insulated glass. Insulated glass can

achieve better weather sealed surround then the conventional single glass panel system.

8.Delivery Time:15~45 days after receipt of advance payment.

9.Payment Term:30%~50% in advance as deposit.

Other balance is paid before delivery and shipment.

10.Accessories such as screw and nut are available; all handrail fittings are solid.

11.We can change the design as client’s requirements.

12.We can do OEM&ODM.

Details

Customized Process:
1st Step: Customer has showed his special requirements.
2st Step: We try to understand the conception and pattern from customer with simple draft or refer picture.
3st Step: Making the conceptive CAD drawing based on communication and understanding.
4st Step: Making the detail and 3D drawing after fixed the design and other details.
5st Step: Offer the quotation after confirm the design,material and surface treatment.
6st Step: Made the sample for approval.
7st Step: Test installation after demo mock up.

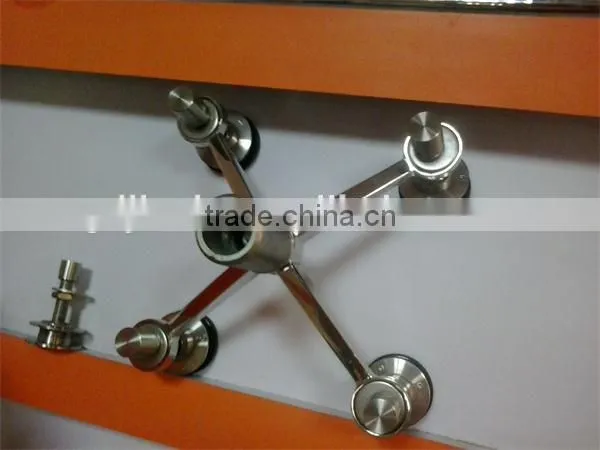

Refer Pictures

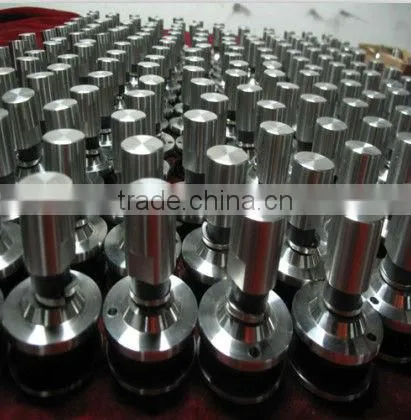

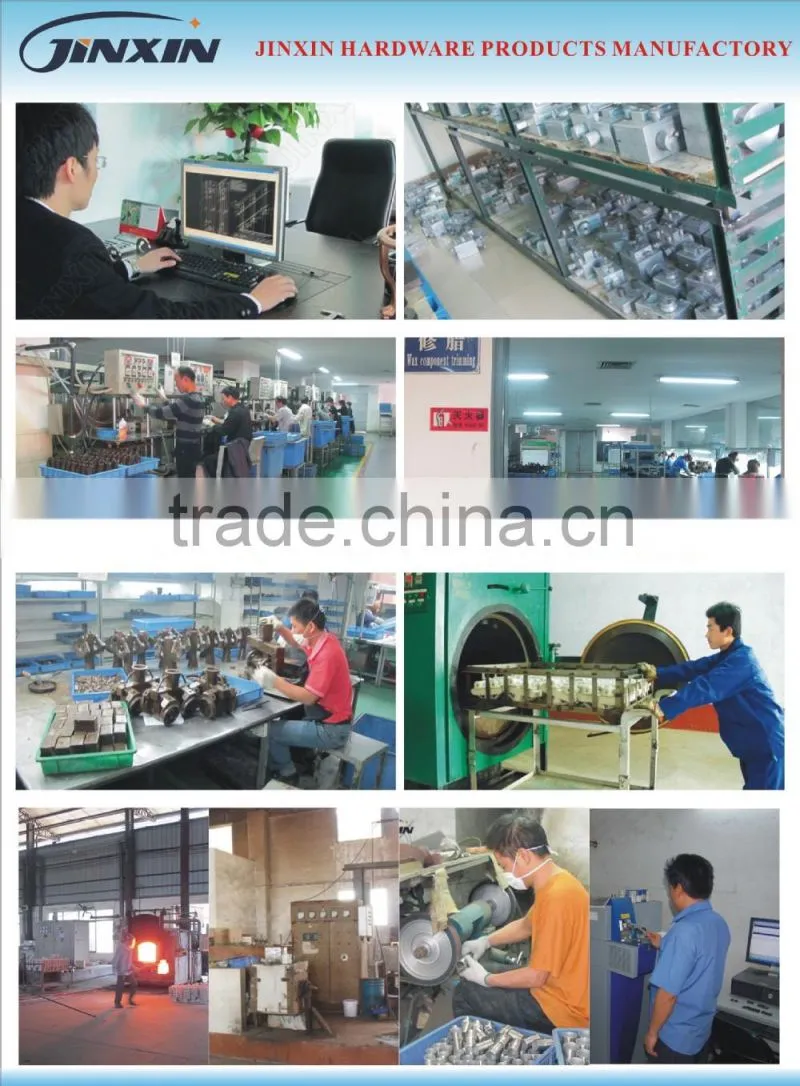

Production Process:
1. Material 2.Cutting 3.Drilling 4.Milling 5.Welding 6.Polishing 7.Checking 8.Fixing 9.Packing 10.Loading
