Specifications

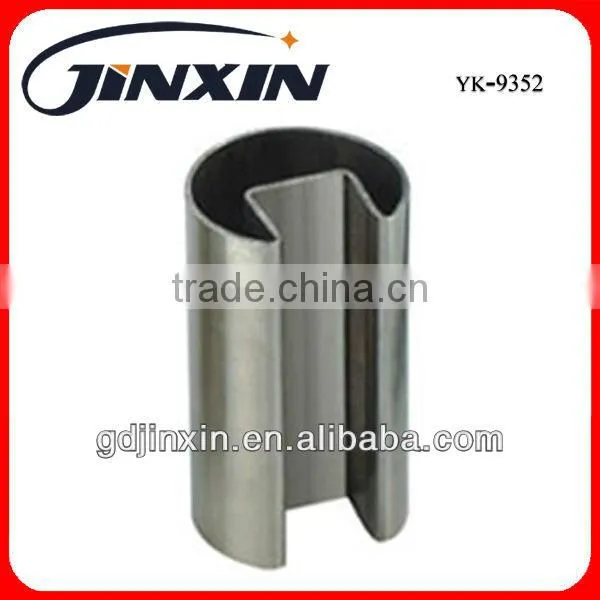

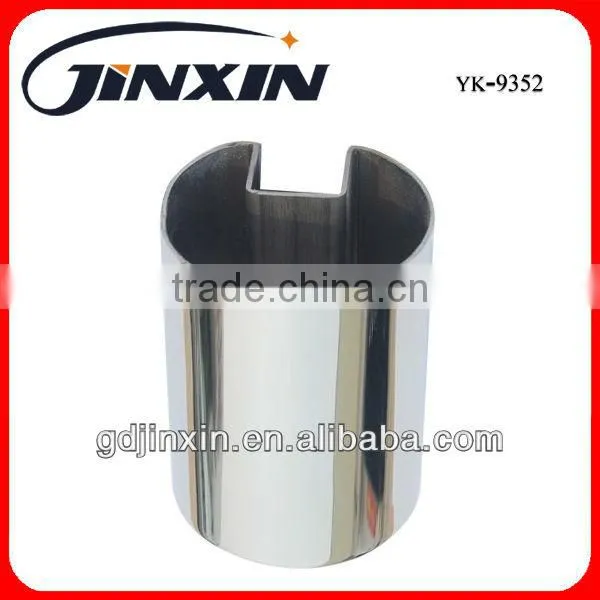

Item NO:YK-9352Material:SUS/AISI 304/316
Finish:Mirror/Stain

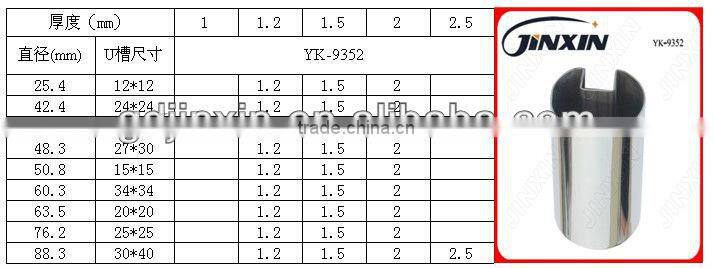

size:15*15*1.2/24*24*1.5/30*27*2.0mm
dia:42.4mm;48.3mm
1)Material:High quality stainless steel 304 and 316.
2)Size: Diameter:42.4mm, 48.3mm, 50.8mm, 63.5mm, 76.2mm, 101.6mm
Thickness:1.0mm, 1.2mm, 1.5mm, 2.0mm
Slot Size: L:15*H:15mm; L:24*H:24mm; L:27*H:30mm
3)Function:Clamp the tempered glass panel with 8~12mm thickness and installed onto the top of the railing.
4)Application:Glass fencing of apartment, balcony or deck, interior and exterior handrail decoration.
5)Delivery Time:15~45 days after receipt of advance payment.
6)Payment Term:30%~50% in advance as deposit.
Other balance is paid before delivery and shipment.

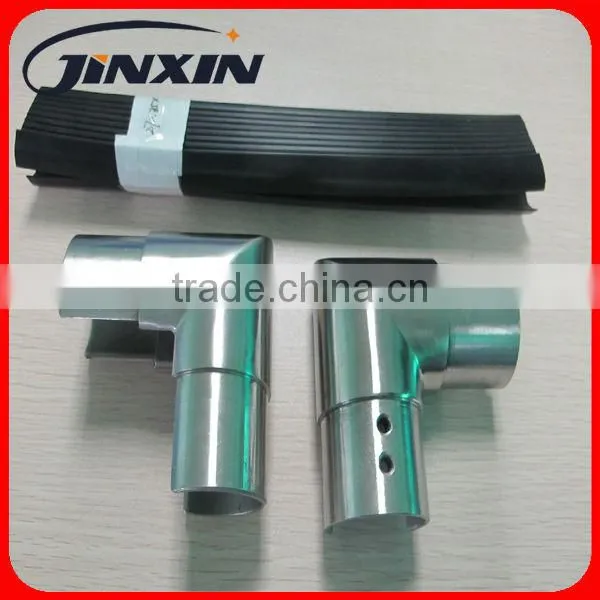

7) Accessories such as screw and nut are available; all the fittings are solid.
8)We can do OEM&ODM.
9)Welcome your visting JINXIN’s alibaba and JINXIN’s made-in-china for more details.
Material |
High quality stainless steel AISI/SUS 304 and 316. |
Size |
Diameter:42.4mm, 48.3mm, 50.8mm, 63.5mm, 76.2mm, 101.6mm U channel size:15*15/24*24/12*12/25*25mm |
|
Function
|
Put the clear glass in the U channel pipe,it suitable to fix frameless glass railings |
Application |
Handrail staircase of the apartment, balcony , villa,or deck and so on. |
DeliveryTime |
15~45 days after receipt of advance payment. |
Payment Term |
30%~50% in advance as deposit byT/T.Other balance is paid off before delivery and shipment. |
Trade term |
we could accept anyone of EXW,FOB,FCA. |
Our advantage |
First,we provide 100% real material of 304/316,ensure the high quality,and provide the test report for raw material Second,we provide the best after-sales service for our client,we promise that the material of SUS304# will guarantee 3-5 years at the after-sale service,and the material of SUS316 will guarantee 5-8 years too. Third, OEM service is welcomed.Customized special order is available. We could accept OEM as what client's required. |
Packing method |
1)Each type of product is packed in separate inner boxes. 2)Each outer box weight is not over 20kgs. |
Stainless Steel Chemical Elements Report
Material |
C |
Mn |
P |
S |
Si |
Cr |
Ni |
Mo |
304 |
≤0.08 |
≤2.00 |
≤0.045 |
≤0.030 |
≤1.00 |
18.00-20.00 |
8.00-11.00 |
|
316 |
≤0.08 |
≤2.00 |
≤0.045 |
≤0.030 |
≤1.00 |
16.00-18.00 |
10.00-14.00 |
2.00-3.00 |
316L |
≤0.03 |
≤2.00 |
≤0.045 |
≤0.030 |
≤1.00 |
16.00-18.00 |
10.00-14.00 |
2.00-3.00 |
