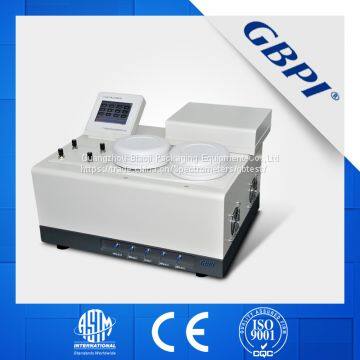

Oxygen Permeability Analyzer(OTR tester)
Application
To test the oxygen transmission rate (OTR) of packaging materials, such as plastic film, composite film, coextrusion film, aluminum foil, aluminum-plated film, infusion bag, sheets, solar battery panel, cellophane, ceramics and porcelain, and various containers such as bag, pouch, bottle, can, bowl, box, widely used in the industries of food, pharmaceuticals, personal care, household, electronics and so on.
Working Principle
Coulometric sensor method. Fix the test sample in the middle of test chamber to separate the chamber into upper room and lower room. When oxygen flows in upper room and nitrogen in lower room, the oxygen molecules penetrate through the sample into the lower room, and coulometry sensor system detect and analyze the oxygen content and calculate the oxygen transmission rate. To test container, oxygen is outside and nitrogen is inside of the container.
Standards
ASTM D3985, ASTM F2622, ASTM F1927, ASTM F1307, ISO 15105-2, DIN 53380-3, JIS K-7126, GB/T 19789-2005
Specifications
Test range |
0.02 ~ 16500 cm3/(m2•24h) [for film] (max possibility: 260000 cm3/(m2•24h)) |
Test accuracy |
0.001 cm3/(m2•24h) |
Temperature range |
15°C~45°C (5°C~50°C optional) |
Temperature accuracy |
±0.1°C |
Humidity range |
dryness: 0%RH; humidity:30~90%RH, 100%RH |
Humidity accuracy |
±2%RH |
Gas supply pressure |
0.1~0.2MPa |
Environment temperature |
23°C |
Sample size |
Φ100mm |
Test area |
50.24cm2 (by adding adaptive accessory can be as small as 0.785 cm2) |
Sample thickness |
≤ 2mm |
Number of samples |
1~2 pieces |
Carrier gas port |
Φ3mm |
Instrument size |
600mm x 460mm x 360mm |
Weight |
80kg |
Power |
1000W |
Power supply |
AC 220V 50Hz |
Features
Professional software with authority management and data tracking function, ensuring the safety and integrity of test data.
Two chambers can work independently at the same time; support cross-testing.
Fully automatical test; auto judgment and auto stop.
With built-in computer, carrying cutting-edge ARM controlling system—can run independently without computer.
LCD and windows instrument interface show testing data and working status; mouse operation is simple and convenient.
Temperature control: International advanced electromagnetic technology, program controlled, and no need of external accessories. Precision: 0.1℃.
Humidity control: Dual gas flow method, with broad range, high precision (2%RH) and stable flow.
Precise enough to test high barrier material like aluminum foil.
By adding adaptive accessory, can expend upper limit of test range to 26000 cm3/m2•24h.
By adding package-testing accessories, can test various containers such as bag, pouch, bottle, can and bowl.
Sensor over-range protection.
Professional software with simple interface, easy to use and convenient to set test process.
Real time curves display of transmission rate, oxygen concentration, temperature and humidity, curves can be easily zoomed and moved.
Professional test report; can be exported as Office Word or PDF.
Can expend to as many as twelve chambers.
Software Interface
