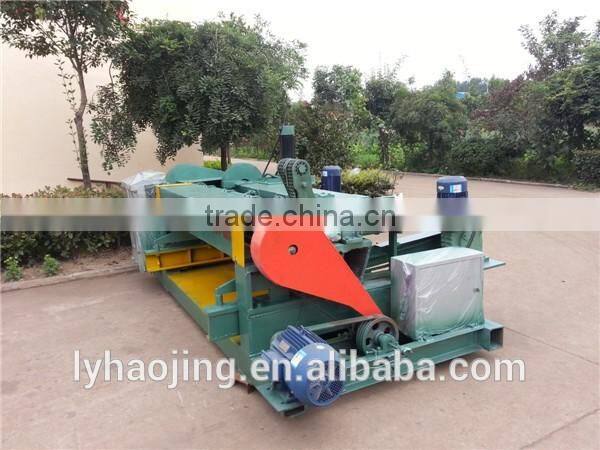

4/8 feet veneer peeling machine/woods peeling machine / wood rotary cutting machine
Main features of 4/8 feet veneer peeling machine/woods peeling machine/wood rotary cutting machine
1. Wood rotary peeling machine and cutting machine all in one.
2. Wood rotary peeling Max. Diameter is 500mm.
3. The thickness of the veneer, the gap of the knife can be adjusted automatically. You only need to input the thickness you need, the machine can adjust the gap of knife by itself. So the workers needless adjust the knife gap by hand.
4. The clipping section could cut the last veneer that is for full size.
5 .Used with screw propulsion, with a small gap, no prone to abnormal fan.
6. Compact structure, stable performance, simple operation and high efficiency and other advantage.The veneer thickness, surface finish, and can be compared with the spindle rotary peeling machine.
The technicial specifications of 4/8 feet veneer peeling machine/woods peeling machine/wood rotary cutting machine
Product technical specifications:
Model: WK/Z-500 | 4 feet | 8 feet |
Log dimension processing (D*L) | 500*1400 mm | 500*2600 mm |
Veneer thickness range (mm) | 0.3-4.0 | 0.30-1.2, 0.6-2.2, 2-4 |
Rotary knife specification (L*W*T) | 1400*130*12.7 mm | 2700*140*12.7 mm |
The smallest diameter core | 28 mm, 30mm | 30mm |
Wire speed of friction roller | 32m/s, 38m/s | 38m/s |
Diameter of friction roller | 98mm, 110mm | 110mm |
Reference output | 20-30m3/day | 20-30m3/day |
Power detail | 380V-50Hz | 380V-50Hz |
Roller engine | 2pcs*5.5kw | 2pcs*7.5kw |
Feeding engine | 1pc*5.5kw | 1pc*5.5kw |
Rotary clipper engine | 2pcs*2.2kw | 2pcs*2.2kw |
Cutting working width | 500-2000mm | 500-2000mm |
The thickness of clipping veneer | 0.3-4.0mm | 0.3-4.0mm |
Feeding speed | 0-100m/minute | 0-100m/minute |
Product dimension (L*W*H) | 3500*2100*1400mm | 4700*2100*1400mm |
Weight | 3.8ton | 5.5 ton |
The working procedure of our 4/8 feet veneer peeling machine/woods peeling machine/wood rotary cutting machine
4/8 feet veneer peeling machine/woods peeling machine/wood rotary cutting machine package in nude. 3sets load into one 40 feet container.

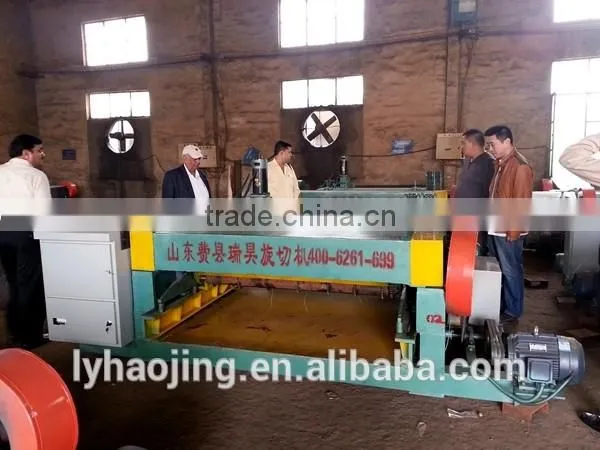

4/8 feet veneer peeling machine/woods peeling machine/wood rotary cutting machine
After sales service:
I. Short time abroad service: 3-10 days, one person. The buyer should pay the round-trip air tickets, foods,
accommodation and service fee. The services include fixing, debugging, operating, maintaining and workers’ training.
II. The buyer sends workers to seller’s factory for study: 3-10 days, one person. The buyer should pay for the
round-trip air tickets. The seller arrange for food and accommodation. The services include fixing, debugging,
operating, maintaining.
Ruihao Machinery is a key enterprise as a professional veneer production line machines manufactory in Shandong for 28 years. Our products including: log debarker, wood rotary peeling and cutting machine, veneer dryer, veneer jointing machine, sliding table saw, knife grinder and accessorial for production line. We supply woodworking machinery with high quality and competitive price. Warmly welcome customers home and aboard to cooperate with us in business.
4/8 feet veneer peeling machine/woods peeling machine/wood rotary cutting machine
Payment Terms: By T/T. 30% payment in advance, the balance should be paid before shipment.
Delivery Time: Within 15 working days after advance.
Validity: Within 30 days after the date.
Guaranty for 12 months.
One English Manual and Video Instruction
If you have any other questions, please send us your inquiry, we will contact with you as soon as possible!!!
