Home > Products > Woodworking machinery > 4 feet log debarking and rounding machine in plywood manufacturer for woodworking machinry
4 feet log debarking and rounding machine in plywood manufacturer for woodworking machinry
- 450 Unit / Units per Month
- Qingdao port
- T/T
Product Details
Condition: | New | Type: | Other, wood rotary peeling machine | Place of Origin: | Shandong, China |
Brand Name: | HUIXIN | Model Number: | WKZ130 | Voltage: | 380v 50Hz |
Power(W): | 24.9kw | Dimension(L*W*H): | 3500*2100*1400mm | Weight: | 3.8ton |
Certification: | CE ISO9001 | Warranty: | 12 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
4 feet log debarking and rounding machine in plywood manufacturer for woodworking machinry
4 feet log debarking and rounding machine in plywood manufacturer for woodworking machinry is one of the most advanced woodworking machinery.Which is the new peeling
machine with my factory researchers through years of practice, set each of the long, careful research, development
and design, the machine has been appraised by the majority of users since been putting into the market, which is in
short supply.
The machine has obtained national patent and the patent number: 20,071,012,562.1, which is my eighth plant obtained patent.
4 feet log debarking and rounding machine in plywood manufacturer for woodworking machinry main features:
1. High range of the thickness adjustment, the thickness adjustment with digital, convenient, simple and practical,
veneer uniform thickness.
2 .The figures show the work of the entire machine, to provide users with convenient debugging data.
3 .Perfected protecting function has the phase, overload protection.
4. Workers can automatically adjust the blade, veneer peeling machine greatly improved flatness.
5. Used with screw propulsion, with a small gap, no prone to abnormal fan.
6. Compact structure, stable performance, simple operation and high efficiency and other advantages.

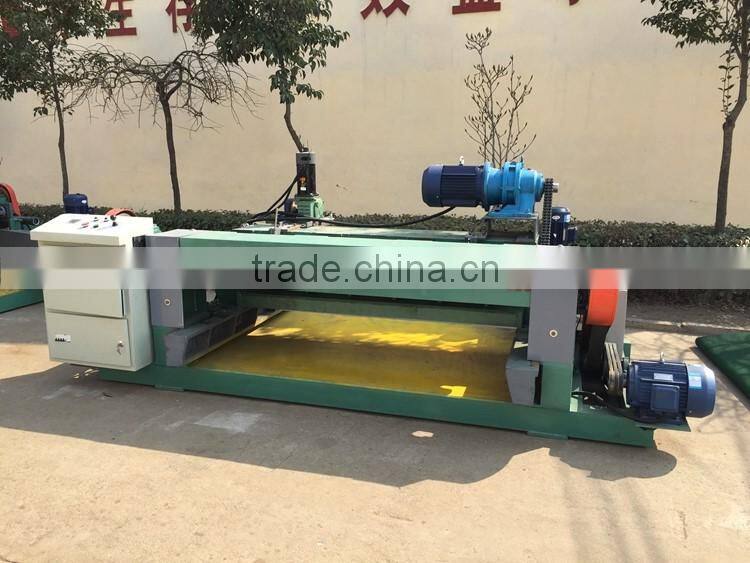

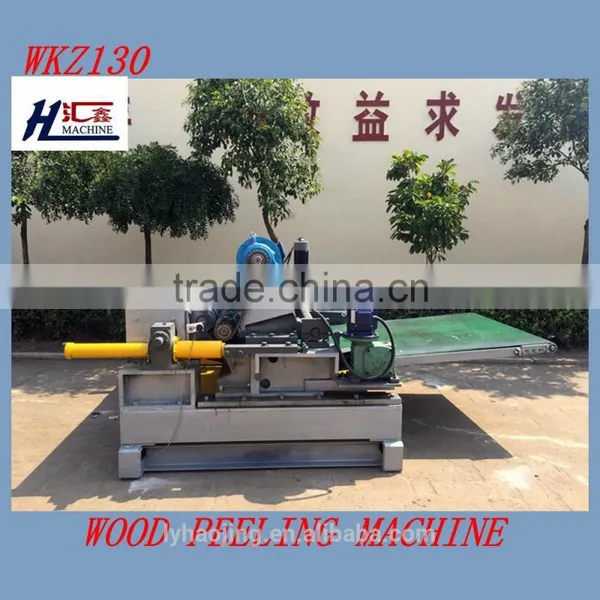

Photos of woodworking machine circle cutting machine wood
4 feet log debarking and rounding machine in plywood manufacturer for woodworking machinry specifications:
Product technical specifications:
Model | WKZ130 |
Log dimension processing (D*L) | 500*1400 mm |
Veneer thickness range | 0.3-4.0mm |
Rotary knife specification (L*W*T) | 1400*130*12.7 mm |
The smallest diameter core | 28mm |
Wire speed of friction roller | 38m/minute |
Diameter of friction roller | 110mm |
Reference output | 20-30m3/day |
Double-roller engine | 1pc*7.5kw |
Single-roller engine | 1pc*7.5kw |
Feeding engine | 1pc*5.5kw |
Rotary clipper engine | 2pcs*2.2kw |
Cutting width | 500-3000mm |
The thickness of clipping veneer | 0.3-4.0mm |
Feeding speed | 0-100m/minute |
Main product dimension (L*W*H) | 3500*2100*1400mm |
Weight | 3.8ton |
Remark: When the machine is improved, the appearance and the indexes should be standardized according to the
physical goods.
4 feet log debarking and rounding machine in plywood manufacturer for woodworking machinery usually packing in nude.
After sales service:
I. Short time abroad service: 3-10 days, one person. The buyer should pay the round-trip air tickets, foods, accommodation and service fee. The services include fixing, debugging, operating, maintaining and workers’ training.
II. The buyer sends workers to seller’s factory for study: 3-10 days, one person. The buyer should pay for the round-trip air tickets. The seller arrange for food and accommodation. The services include fixing, debugging, operating, maintaining.
Ruihao Machinery is a key enterprise as a professional veneer production line machines manufactory in Shandong for 28 years. Our products including: log debarker, wood rotary peeling and cutting machine, veneer dryer, veneer jointing machine, sliding table saw, knife grinder and accessorial for production line. We supply woodworking machinery with high quality and competitive price. Warmly welcome customers home and aboard to cooperate with us in business.
4 feet log debarking and rounding machine in plywood manufacturer for woodworking machinry
Payment Terms: By T/T. 30% payment in advance, the balance should be paid before shipment.
Delivery Time: Within 15 working days after advance.
Validity: Within 30 days after the date.
Guaranty for 12 months.
One English Manual and Video Instruction
We supply whole wood veneer production line machinery, for more information,
please feel free to contact with me! You will receive quick response !
My name is Gary Gu, please contact me at any time. My call +86 13665395656
